Power Unit

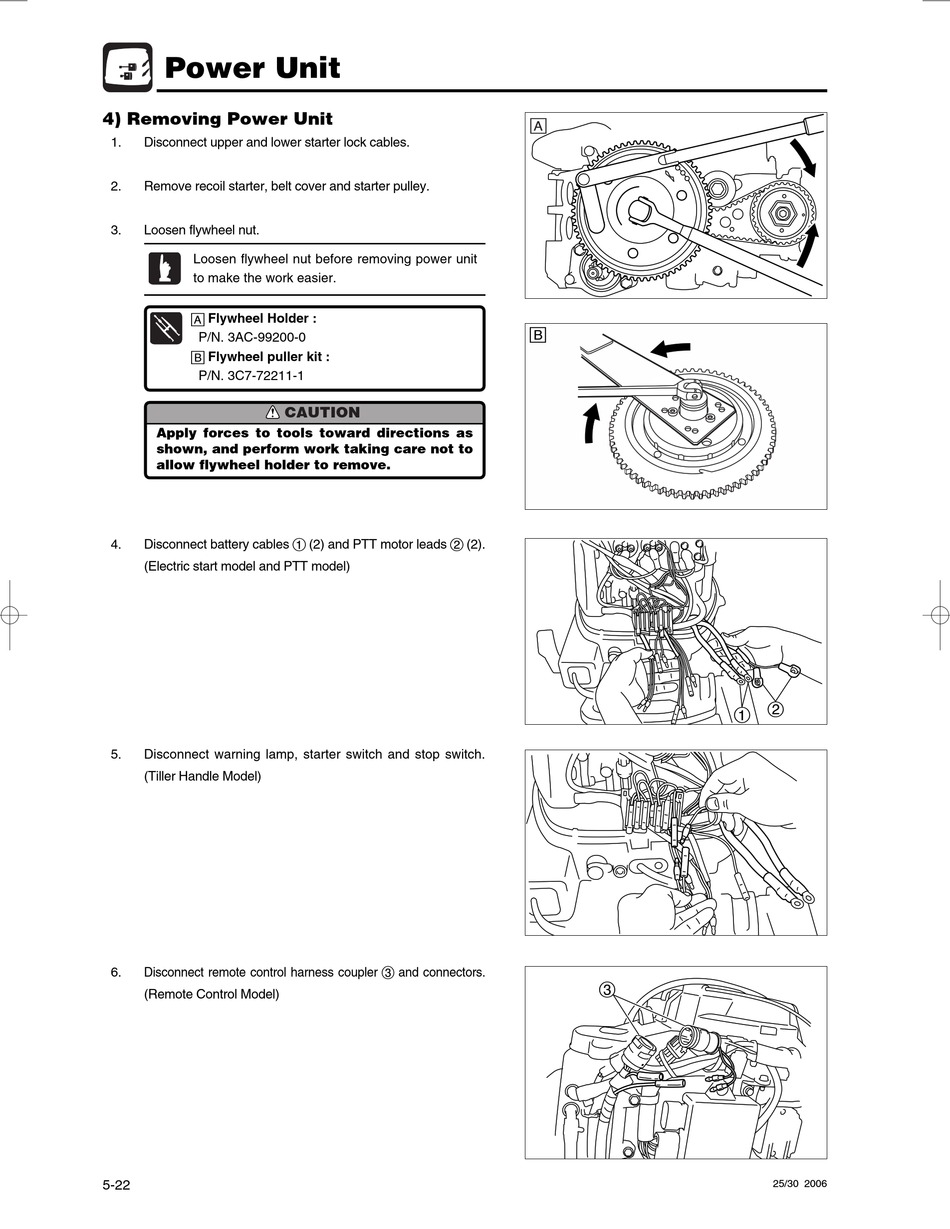

4) Removing Power Unit

1. Disconnect upper and lower starter lock cables.
2. Remove recoil starter, belt cover and starter pulley.
3. Loosen flywheel nut.
Loosen flywheel nut before removing power unit
to make the work easier.
å Flywheel Holder :
P/N. 3AC-99200-0
∫ Flywheel puller kit :
P/N. 3C7-72211-1
Apply forces to tools toward directions as
shown, and perform work taking care not to
allow flywheel holder to remove.
Disconnect battery cables 1 (2) and PTT motor leads 2 (2).
4.
(Electric start model and PTT model)
5. Disconnect warning lamp, starter switch and stop switch.
(Tiller Handle Model)
Disconnect remote control harness coupler 3 and connectors.
6.
(Remote Control Model)
5-22
CAUTION
å
∫
3
2
1
25/30 2006
