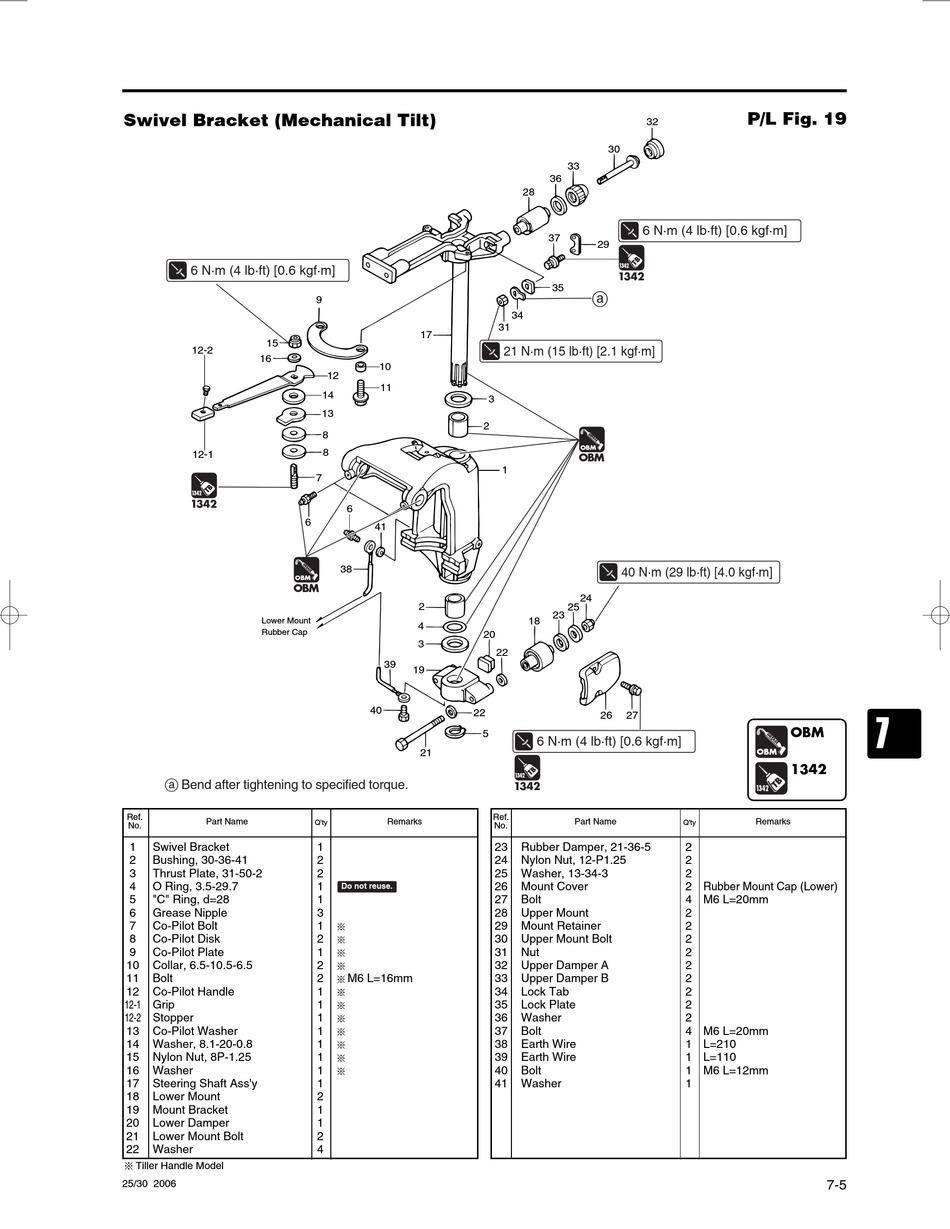

Swivel Bracket (Mechanical Tilt)

6 N·m (4 lb·ft) [0.6 kgf·m]
15
12-2
16
12-1
1342 1342
1342
Lower Mount
Rubber Cap
a Bend after tightening to specified torque.
Ref.
Part Name
No.
1 Swivel Bracket
2 Bushing, 30-36-41
3 Thrust Plate, 31-50-2
4 O Ring, 3.5-29.7
5 "C" Ring, d=28
6 Grease Nipple
7 Co-Pilot Bolt
8 Co-Pilot Disk
9 Co-Pilot Plate
10 Collar, 6.5-10.5-6.5
11 Bolt
12 Co-Pilot Handle
12-1 Grip
12-2 Stopper
13 Co-Pilot Washer
14 Washer, 8.1-20-0.8
15 Nylon Nut, 8P-1.25
16 Washer
17 Steering Shaft Ass'y
18 Lower Mount
19 Mount Bracket
20 Lower Damper
21 Lower Mount Bolt
22 Washer
Tiller Handle Model
25/30 2006
9
17
10
12
11
14
13
8
8
7
6
6
41
38
OBM OBM
OBM
2
4
3
39
19
40
21
Remarks
Q'ty
1
2
2
1
Do not reuse.
1
3
1
2
1
2
2 M6 L=16mm
1
1
1
1
1
1
1
1
2
1
1
2
4
30
33
36
28
37
29
1342 1342
1342
35
a
34
31
21 N·m (15 lb·ft) [2.1 kgf·m]
3
2
OBM OBM
OBM
1
40 N·m (29 lb·ft) [4.0 kgf·m]
24
25
23
18
20
22
22
26 27
5
6 N·m (4 lb·ft) [0.6 kgf·m]
1342 1342
1342
Ref.
Part Name
No.
23 Rubber Damper, 21-36-5
24 Nylon Nut, 12-P1.25
25 Washer, 13-34-3
26 Mount Cover
27 Bolt
28 Upper Mount
29 Mount Retainer
30 Upper Mount Bolt
31 Nut
32 Upper Damper A
33 Upper Damper B
34 Lock Tab
35 Lock Plate
36 Washer
37 Bolt
38 Earth Wire
39 Earth Wire
40 Bolt
41 Washer
P/L Fig. 19
32
6 N·m (4 lb·ft) [0.6 kgf·m]
OBM
OBM OBM
1342
1342 1342
Remarks
Q'ty
2
2
2
2 Rubber Mount Cap (Lower)
4 M6 L=20mm
2
2
2
2
2
2
2
2
2
4 M6 L=20mm
1 L=210
1 L=110
1 M6 L=12mm
1
7
7-5
