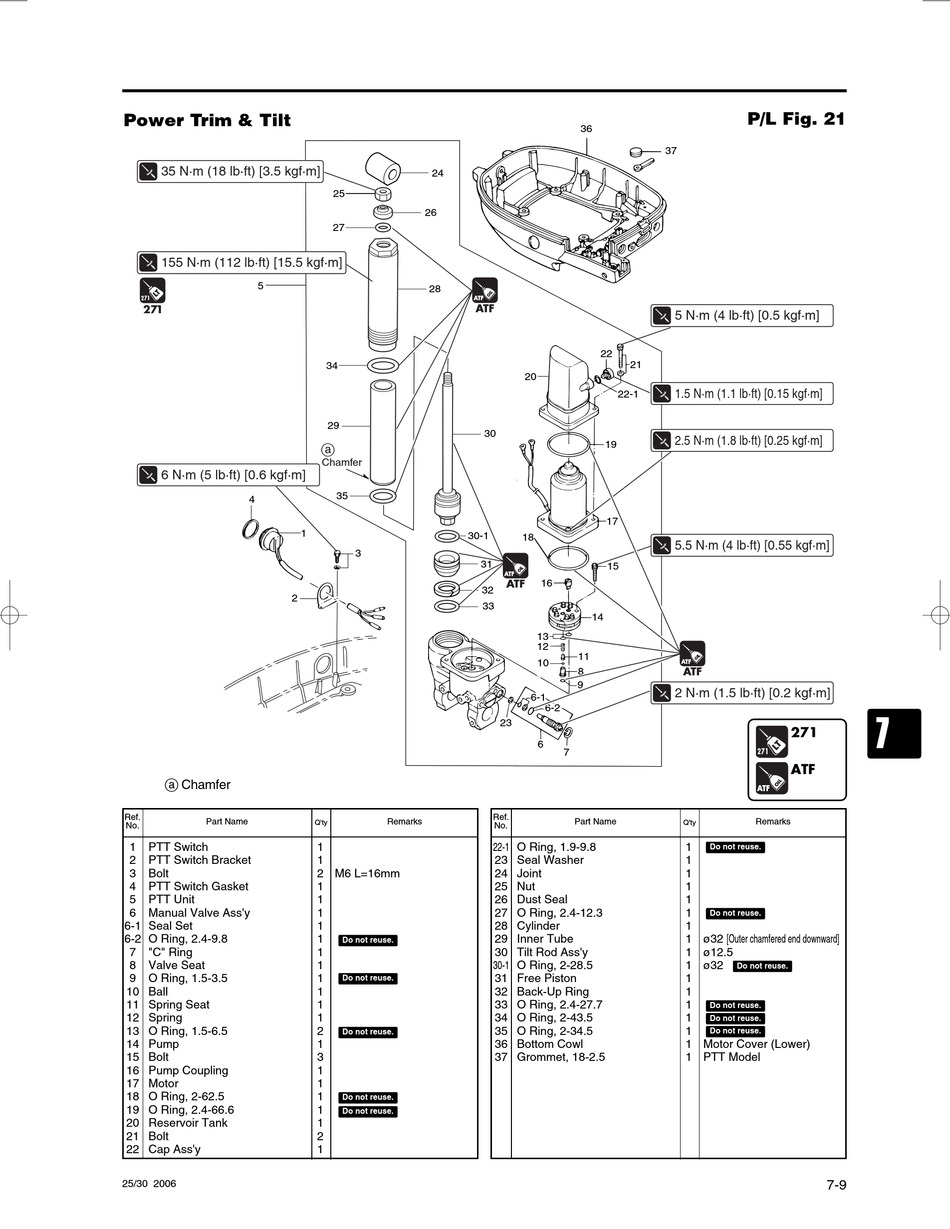

Power Trim & Tilt
35 N·m (18 lb·ft) [3.5 kgf·m]
155 N·m (112 lb·ft) [15.5 kgf·m]
5
271 271
271
6 N·m (5 lb·ft) [0.6 kgf·m]
4
a Chamfer
Ref.
Part Name
No.
1 PTT Switch
2 PTT Switch Bracket
3 Bolt
4 PTT Switch Gasket
5 PTT Unit
6 Manual Valve Ass'y
6-1 Seal Set
6-2 O Ring, 2.4-9.8
7 "C" Ring
8 Valve Seat
9 O Ring, 1.5-3.5
10 Ball
11 Spring Seat
12 Spring
13 O Ring, 1.5-6.5
14 Pump
15 Bolt
16 Pump Coupling
17 Motor
18 O Ring, 2-62.5
19 O Ring, 2.4-66.6
20 Reservoir Tank
21 Bolt
22 Cap Ass'y
25/30 2006
24
25
26
27
28
34
29
a
Chamfer
35
1
3
2
Remarks
Q'ty
1
1
2 M6 L=16mm
1
1
1
1
1
Do not reuse.
1
1
1
Do not reuse.
1
1
1
2
Do not reuse.
1
3
1
1
1
Do not reuse.
1
Do not reuse.
1
2
1
36
ATF ATF
ATF
22
21
20
22-1
30
19
17
30-1
18
31
15
ATF ATF
ATF 16
32
33
14
13
12
11
10
8
9
6-1
6-2
23
6
7
Ref.
Part Name
No.
22-1 O Ring, 1.9-9.8
23 Seal Washer
24 Joint
25 Nut
26 Dust Seal
27 O Ring, 2.4-12.3
28 Cylinder
29 Inner Tube
30 Tilt Rod Ass'y
30-1 O Ring, 2-28.5
31 Free Piston
32 Back-Up Ring
33 O Ring, 2.4-27.7
34 O Ring, 2-43.5
35 O Ring, 2-34.5
36 Bottom Cowl
37 Grommet, 18-2.5
P/L Fig. 21
37
5 N·m (4 lb·ft) [0.5 kgf·m]
1.5 N·m (1.1 lb·ft) [0.15 kgf·m]
2.5 N·m (1.8 lb·ft) [0.25 kgf·m]
5.5 N·m (4 lb·ft) [0.55 kgf·m]
ATF ATF
ATF
2 N·m (1.5 lb·ft) [0.2 kgf·m]
271
271 271
ATF
ATF ATF
Remarks
Q'ty
1
Do not reuse.
1
1
1
1
1
Do not reuse.
1
1 ø32 [Outer chamfered end downward]
1 ø12.5
1 ø32
Do not reuse.
1
1
1
Do not reuse.
1
Do not reuse.
1
Do not reuse.
1 Motor Cover (Lower)
1 PTT Model
7-9
7
