Chapter 7 - Autoreclose
5.23.2

CB MANUAL CLOSE SYSTEM CHECK LOGIC DIAGRAM

CBM SC CS1
Enabled
Check Sync 1 OK
CBM SC CS2
Enabled
Check Sync 2 OK
CBM SC DLLB
Enabled
Dead Line
Live Bus
CBM SC LLDB
Enabled
Live Line
Dead Bus
CBM SC DLDB
Enabled
Dead Line
Dead Bus
CBM SC required
Disabled
Ext CS OK
V03374

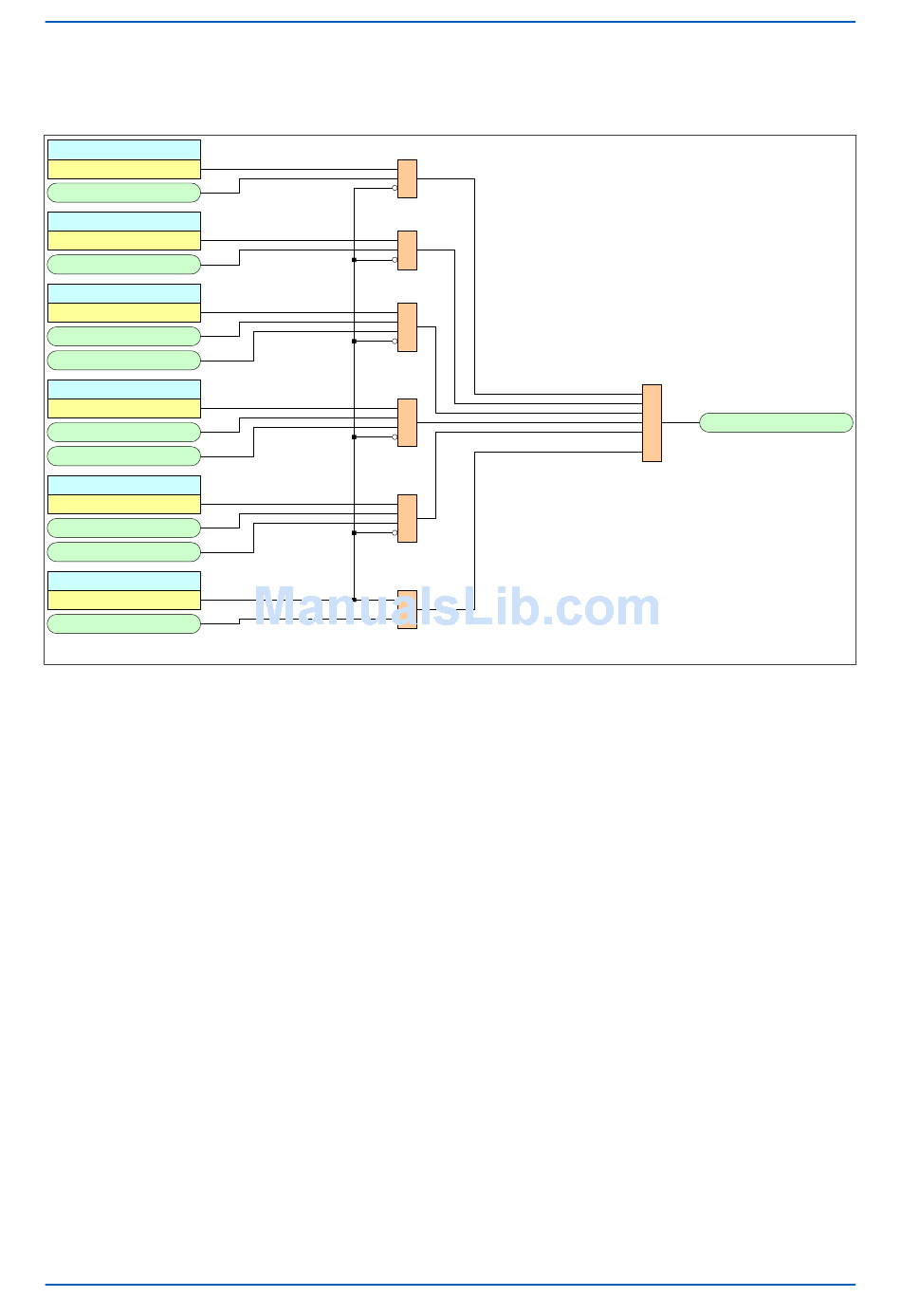

Figure 92: CB Manual Close System Check Logic Diagram (Module 51)

178
&
&
&
&
&
Note: If the DDB signal CB Ext CS OK is not mapped in PSL , it
defaults to High .
&
P54A/B/C/E
1
CB Man SCOK
