Figure 5-14: Optical Modules; Table 5-15: Optical Modules Replaceable Parts List - Tektronix DSA8300 Service Manual

Replaceable Parts List

Table 5-15: Optical modules replaceable parts list

Fig. & Tektronix
index part
number number
5-14-1 200-4568-00
-2 335-0370-00
-3 211-0373-00
-4 105-1115-00
-5 200-4104-00

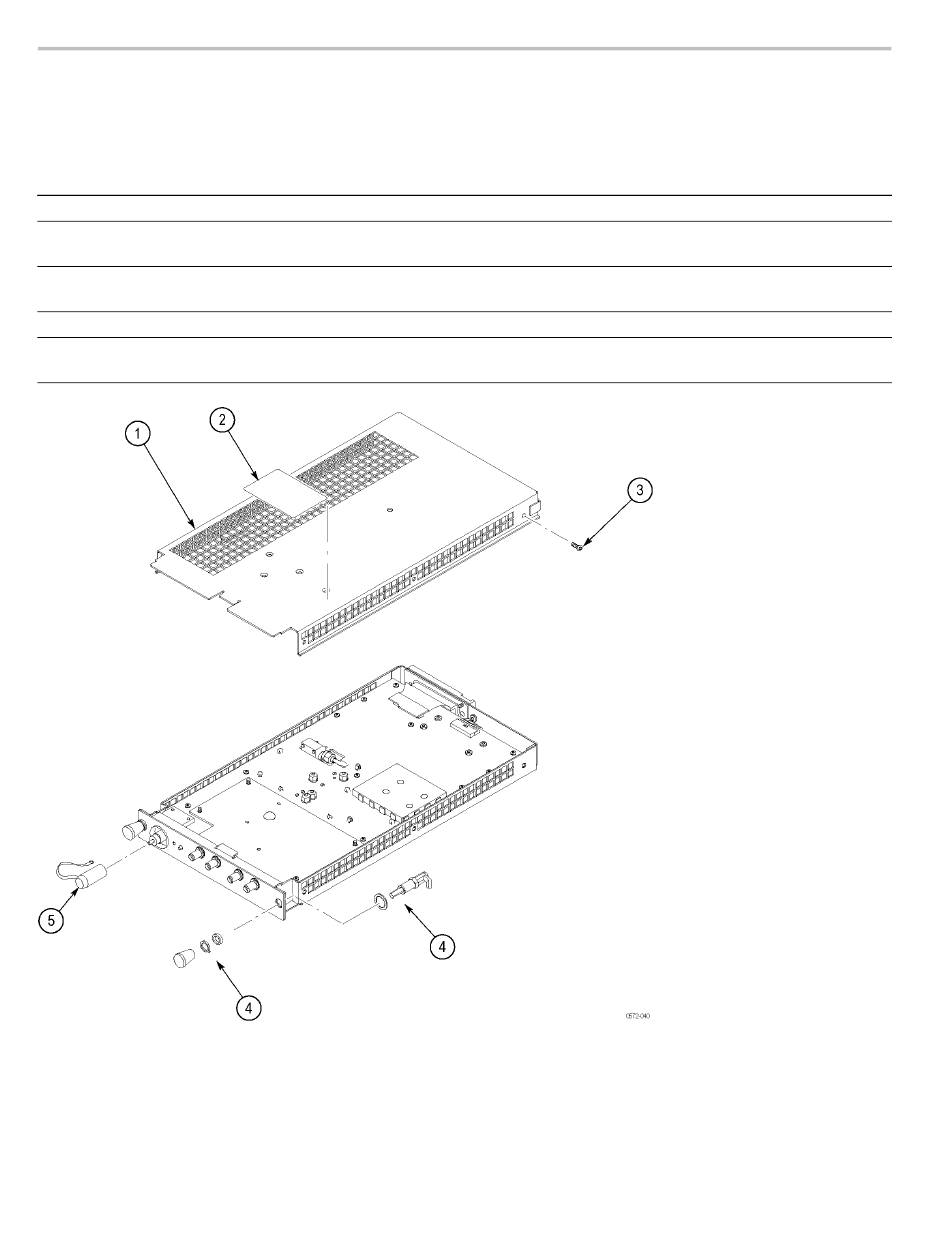

Figure 5-14: Optical modules

5–24
Serial Serial
number number
effective discont'd
DSA8300 Digital Serial Analyzer and Modules Service Manual
Qty Name & description
1 COVER: OPTICAL MODULE, 0.050 AL
1 MARKER, IDENT: ANTI-STATIC LABEL, 0.005
POLY
7 SCREW, MACHINE 4-40 X 0.250, PNH, STL CD
PLT, T10
2
LATCH: ADJUSTABLE GRIP, 16-10-511-16
1 CAP, DUST: ELAY M75-M80 SHORE, BLACK
MATT TEXTURED
