Installation
July 2013

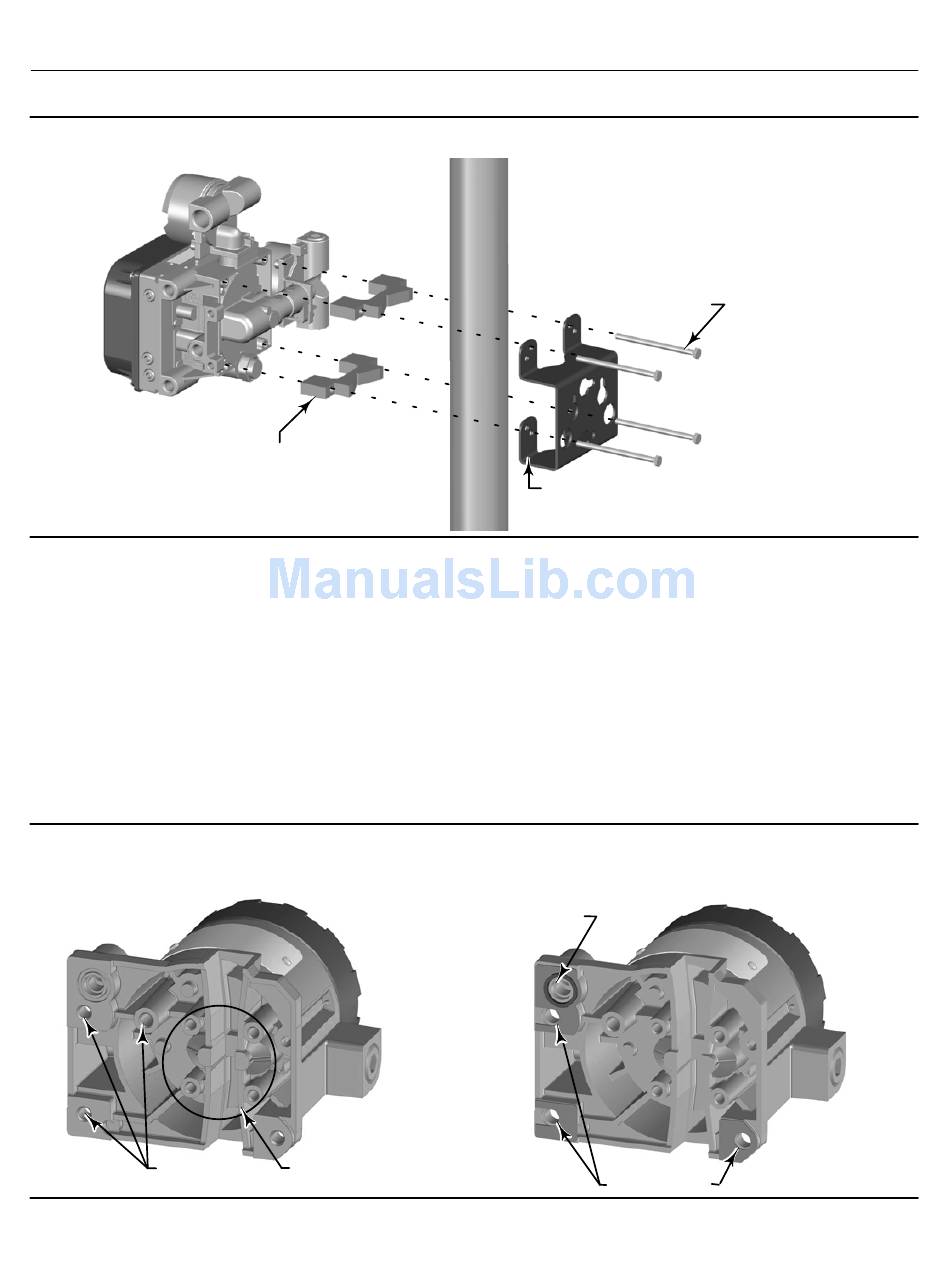

Figure 2‐6. FIELDVUE DVC6205f Base Unit Pipestand Mounting
X0437

DVC6215 Feedback Unit

If ordered as part of a control valve assembly, the factory mounts the feedback unit on the actuator, makes pneumatic
connections to the actuator, sets up, and calibrates the instrument. If you purchased the feedback unit separately, you
will need a mounting kit to mount the feedback unit on the actuator. See the instructions that come with the
mounting kit for detailed information on mounting the feedback unit to a specific actuator model.
The DVC6215 housing is available in two different configurations, depending on the actuator mounting method.
Figure 2‐7 shows the available configurations. The feedback system for the DVC6215 feedback unit utilizes a magnetic
assembly for true linkage‐less, non‐contacting position measurement. In order to prevent inadvertent stem
movement while the instrument is in operation, magnetic tools (such as a magnetic‐tipped screwdriver) should not be
used.
Figure 2‐7. Feedback Unit Housing Configurations
HOUSING FOR
LINEAR AND ROTARY ACTUATORS
LINEAR, M8
X0124
16
STANDOFF
ROTARY NAMUR, M6
4‐INCH 1/4‐20
HEX HEAD SCREW
MOUNTING BRACKET
HOUSING FOR
FISHER GX ACTUATORS
INTEGRAL OUTPUT
PRESSURE PORT
HOLES FOR
X0125
MOUNTING BOLT
Instruction Manual
D103412X012
