Fisher FIELDVUE DVC6200p Instruction Manual Supplement

Digital valve controller device setup and accessing communication and calibration using siemens simatic manager/pdm
Hide thumbs Also See for FIELDVUE DVC6200p:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Instruction Manual Supplement
D103560X012
r
Fisher
FIELDVUE
Controller Device Setup and Accessing
Communication and Calibration using Siemens
SIMATIC Manager/PDM
Contents
Related Documents
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Digital Valve Controller using
Enhanced Device Description (EDD) for Siemens
SIMATIC PDM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting PG/PC Interface
Loading the DVC6200p EDD to the SIMATIC
Manager/PDM Catalog
Device Setup using Siemens PDM Software
Going Online with the DVC6200p
Performing One-Step Local Quick Setup
to Calibrate and Tune the DVC6200p

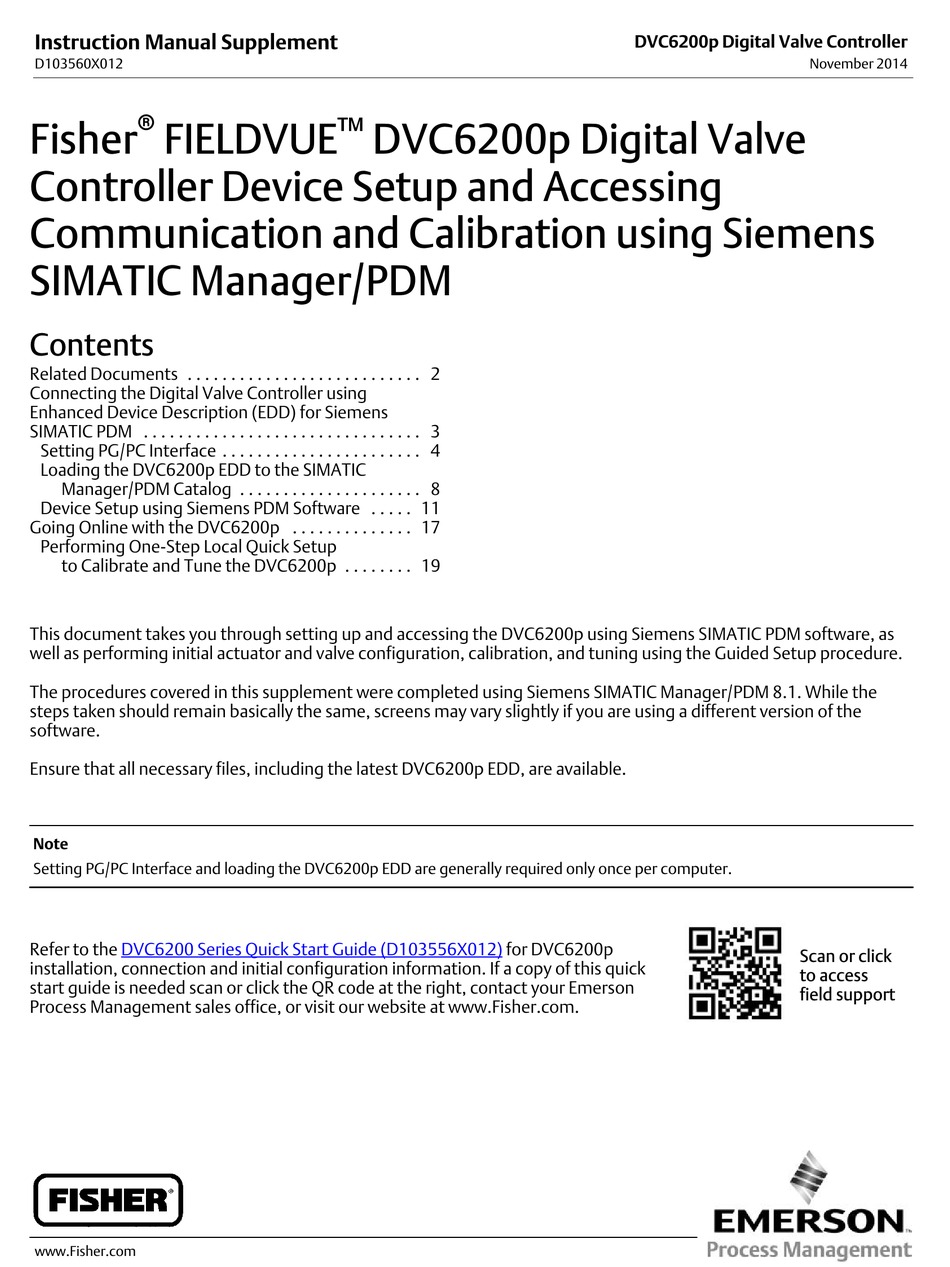

This document takes you through setting up and accessing the DVC6200p using Siemens SIMATIC PDM software, as
well as performing initial actuator and valve configuration, calibration, and tuning using the Guided Setup procedure.
The procedures covered in this supplement were completed using Siemens SIMATIC Manager/PDM 8.1. While the
steps taken should remain basically the same, screens may vary slightly if you are using a different version of the
software.
Ensure that all necessary files, including the latest DVC6200p EDD, are available.
Note
Setting PG/PC Interface and loading the DVC6200p EDD are generally required only once per computer.
Refer to the
DVC6200 Series Quick Start Guide (D103556X012)
installation, connection and initial configuration information. If a copy of this quick
start guide is needed scan or click the QR code at the right, contact your Emerson
Process Management sales office, or visit our website at www.Fisher.com.
www.Fisher.com
™
DVC6200p Digital Valve
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . .
. . . . . . . . . . . . . .
. . . . . . . .
2
3
4
8
11
17
19
for DVC6200p
DVC6200p Digital Valve Controller
November 2014
Scan or click
to access
field support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIELDVUE DVC6200p and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher FIELDVUE DVC6200p

Summary of Contents for Fisher FIELDVUE DVC6200p

  • Page 1 If a copy of this quick to access start guide is needed scan or click the QR code at the right, contact your Emerson field support Process Management sales office, or visit our website at www.Fisher.com. www.Fisher.com...

  • Page 2: Related Documents

    November 2014 D103560X012 Related Documents D Fisher FIELDVUE DVC6200 Series Digital Valve Controller quick start guide (D103556X012) D Fisher FIELDVUE DVC6200p Digital Valve Controller instruction manual (pending) All documents are available from your Emerson Process Management sales office. Also visit our website at...

  • Page 3: Enhanced Device Description (Edd) For Siemens Simatic Pdm

    DVC6200p Digital Valve Controller D103560X012 November 2014 Connecting the DVC6200p using Enhanced Device Description (EDD) for Siemens SIMATIC PDM Refer to figure 1. Figure 1. Connecting the FIELDVUE DVC6200p using EDD for Siemens SIMATIC PDM PROFIBUS PA POWER DP/PA COUPLER SUPPLY BACK-RAIL...

  • Page 4: Setting Pg/Pc Interface

    Instruction Manual Supplement DVC6200p Digital Valve Controller November 2014 D103560X012 Setting PG/PC Interface Note Setting the PG/PC interface or PC card (CP 5711 or similar PROFIBUS card) is done only once, after the first hardware installation of the PC card inside the computer. 1.
  • Page 5 Instruction Manual Supplement DVC6200p Digital Valve Controller D103560X012 November 2014 2. If the PROFIBUS card is the only master on the bus select 'PG/PC is the only master on the bus', as shown in figure 3. If there are other Class 1 or Class 2 masters on the bus, then DO NOT select PG/PC is the only master on the bus. Under Network Parameters select the appropriate Transmission Rate of the bus.
  • Page 6 Instruction Manual Supplement DVC6200p Digital Valve Controller November 2014 D103560X012 3. Click on Diagnostics... as shown in figure 4. Figure 4. Diagnostics... 4. In the Diagnostics window, shown in figure 5, click on Test to check the status of the PROFIBUS card and network. Figure 5.
  • Page 7 Instruction Manual Supplement DVC6200p Digital Valve Controller D103560X012 November 2014 5. Confirm the status is OK (see figure 6.) If the status is Failed, changes to the parameters set in step 2 may be required. Note If the“Test” fails, check the DP/PA coupler type used and the parameter setting, as recommended by the coupler manufacturer. 6.

  • Page 8: Loading The Dvc6200P Edd To The Simatic Manager/Pdm Catalog

    Instruction Manual Supplement DVC6200p Digital Valve Controller November 2014 D103560X012 Figure 7. Status/Network Diagnostics—Station Address STATION ADDRESS BUS NODE 55 Note The default address of the DVC6200p is set by the factory to 126. Note In the above example, a slave device was found at Bus Node 55, and the Class 2 Master device is at address 4. Make note of the addresses found during the bus node scan for future reference.
  • Page 9 Instruction Manual Supplement DVC6200p Digital Valve Controller D103560X012 November 2014 Figure 8. Loading the EDD File SOURCE DIRECTORY COMPRESSED SOURCE NAVIAGATE TO EDD FILE...
  • Page 10 Instruction Manual Supplement DVC6200p Digital Valve Controller November 2014 D103560X012 Note Loading the EDD for a specific device, such as the DVC6200p, on the SIMATIC PDM on a station is only needed once, unless a new or updated EDD is required. Figure 9.
  • Page 11 Instruction Manual Supplement DVC6200p Digital Valve Controller D103560X012 November 2014 Device Setup using Siemens SIMATIC PDM Software Before beginning Device Setup, be sure the instrument is correctly mounted and all pneumatic and electrical connections are made. Refer to the quick start guide for general mounting guidelines or the installation instructions supplied with the mounting kit.
  • Page 12 Instruction Manual Supplement DVC6200p Digital Valve Controller November 2014 D103560X012 2. Right click on the project in the left hand pane, select Insert New Object > networks (if not already available). Figure 11. Adding Networks PROJECT NAME 3. Right click on the networks icon in the right pane and select Insert New Object > Communications Network as shown in figure 12.
  • Page 13 Instruction Manual Supplement DVC6200p Digital Valve Controller D103560X012 November 2014 4. Enter the Object name then click on Assign Device Type as shown below. Navigate to PROFIBUS DP network and select OK. Figure 13. Assign Device Type...
  • Page 14 Instruction Manual Supplement DVC6200p Digital Valve Controller November 2014 D103560X012 5. A new network now appears on the right pane, as shown in figure 14. Right-click on the network and select Insert New Object > Object. Figure 14. Insert Object...
  • Page 15 Instruction Manual Supplement DVC6200p Digital Valve Controller D103560X012 November 2014 6. Enter the Object name (for example, the tag name) and define the PROFIBUS address. Click on Assign Device Type. Select PA Standalone for standalone station PDM or PA Step7 when PDM is in an integrated environment. Click OK. Click OK in the resulting screen.
  • Page 16 Instruction Manual Supplement DVC6200p Digital Valve Controller November 2014 D103560X012 7. Right click on the device in the right pane and select Open Object, as shown in figure 16. Figure 16. Open Device in SIMATIC PDM 8. In the resulting Offline menu screen (shown in figure 17), select the Upload icon, as indicated below, to upload the device to the database.

  • Page 17: Going Online With The Dvc6200P

    Instruction Manual Supplement DVC6200p Digital Valve Controller D103560X012 November 2014 Going Online with the DVC6200p 1. Click on Device > Online to access to open the DVC6200p EDD, as shown in figure 18. Figure 18. Going Online...
  • Page 18 Instruction Manual Supplement DVC6200p Digital Valve Controller November 2014 D103560X012 Refer to figure 19 to view the Overview screen interface. Overview shows the Primary Purpose Variables and the Device Status and Mode. It also allows you to enter the Device Serial Number and access Device Information, Stroke Valve, and Calibration procedures.

  • Page 19: Performing One-Step Local Quick Setup To Calibrate And Tune The Dvc6200P

    Instruction Manual Supplement DVC6200p Digital Valve Controller D103560X012 November 2014 Note Auto-calibration and tuning are part of the Device Setup procedure. However, if the DVC6200p is not physically connected to an actuator/valve assembly you will not be able to perform the auto-calibration/tuning procedures. If Device Setup is being done prior to mounting the device complete Device Setup up to auto-calibration and select Cancel, as shown in figure 21.

  • Page 20: November

    Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user. FIELDVUE and Fisher are marks owned by one of the companies in the Emerson Process Management business unit of Emerson Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co.
