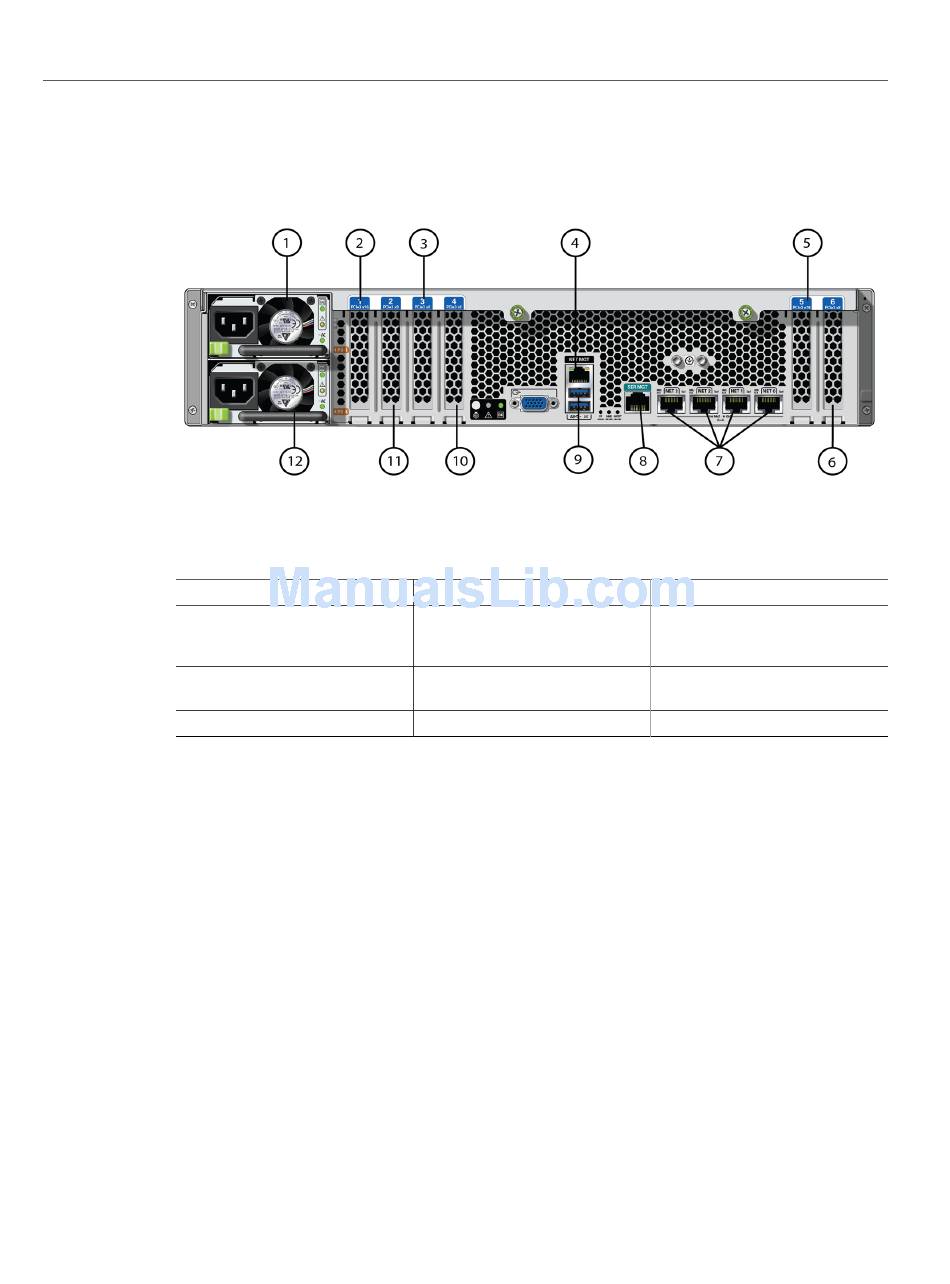

ZS5-2 Rear Panel
FIGURE 25
1 Power Supply Unit (PSU) 1
4 Network Management (NET
MGT) 10/100/1000 BASE-T
Ethernet port
7 Network (NET) 10 GbE ports:
NET 0, NET 1, NET 2, NET 3
10 Cluster interface card (slot 4)
Cluster Interface Card Compatibility - The ZS5-2 controller contains a Version 3 cluster
interface card, which is incompatible with Version 2.
For information about how to connect cables to form a cluster, see
in Oracle ZFS Storage Appliance Cabling
Cable Management Arm
The following figure identifies the components of the cable management arm (CMA). For
installation instructions, see
2 Second PCle option (slot 1)
5 First PCle option (slot 5)
8 SER MGT port
11 First 4x4 SAS HBA (slot 2)
Guide.
"Installing a ZS5-2 Cable Management Arm" on page
Installation Prerequisites and Hardware Overviews
Overview of ZS5-2 Controller
3 Third PCle option (slot 3)
6 Second 4x4 SAS HBA, or fourth
PCle option (slot 6)
9 Two USB 3.0 ports
12 Power Supply Unit (PSU) 0
"Connecting Cluster Cables"
116.
45
