Installing a DE3-24C Disk Shelf
6.

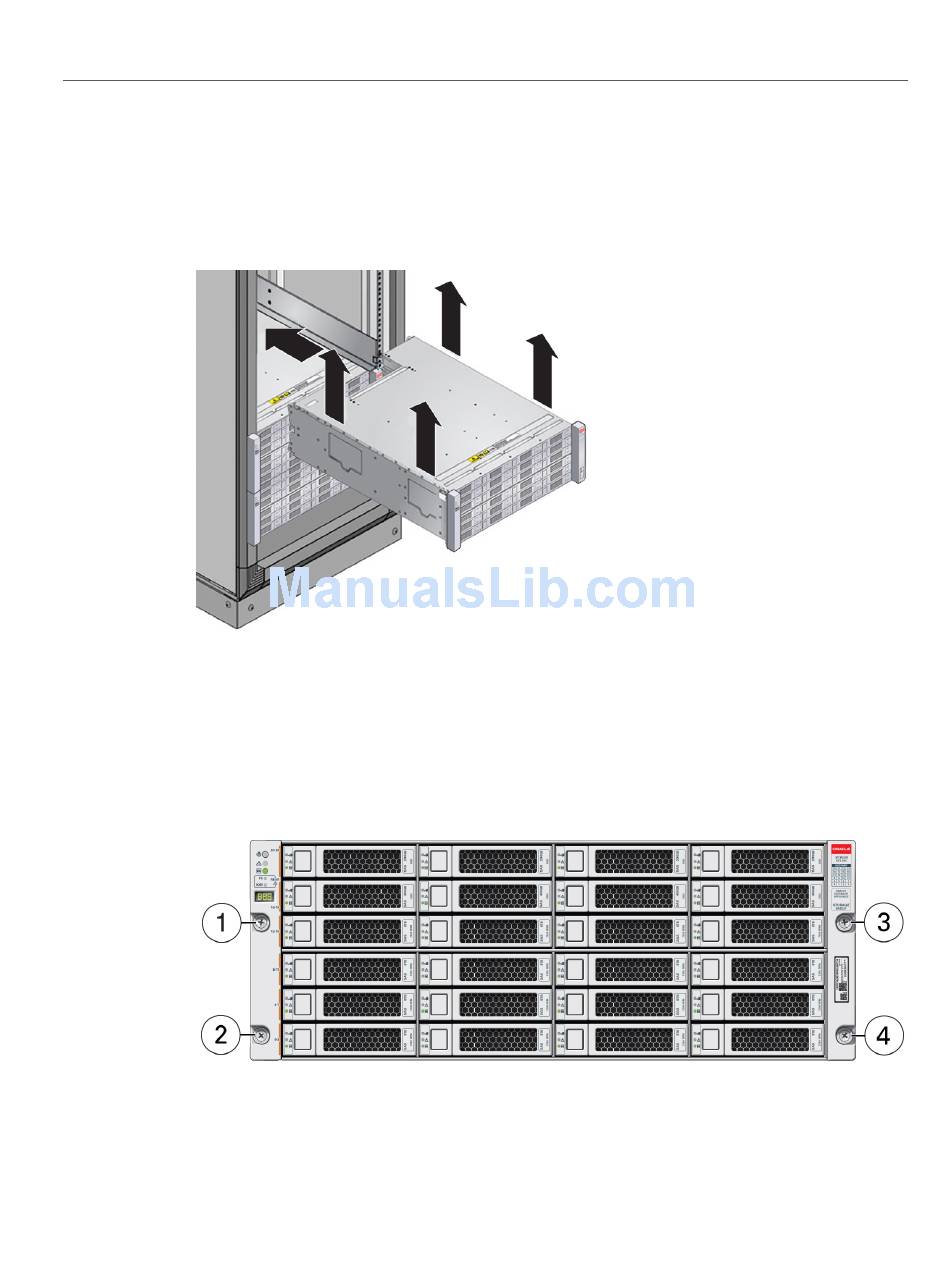

Using a mechanical lift or three people, one at each side of the disk shelf and one
in front, carefully lift and rest the disk shelf on the bottom ledge of the left and
right rails. Do not lift using the power supply handles.
Carefully slide the disk shelf into the cabinet. Ensure that it is fully seated within
7.
the rails. If removing the disk shelf to reseat it, support it at all times.
8.
Secure the front of the disk shelf using the four captive screws [1 - 4].
82
Oracle ZFS Storage Appliance Installation Guide • December 2016
