Overview of Disk Shelves

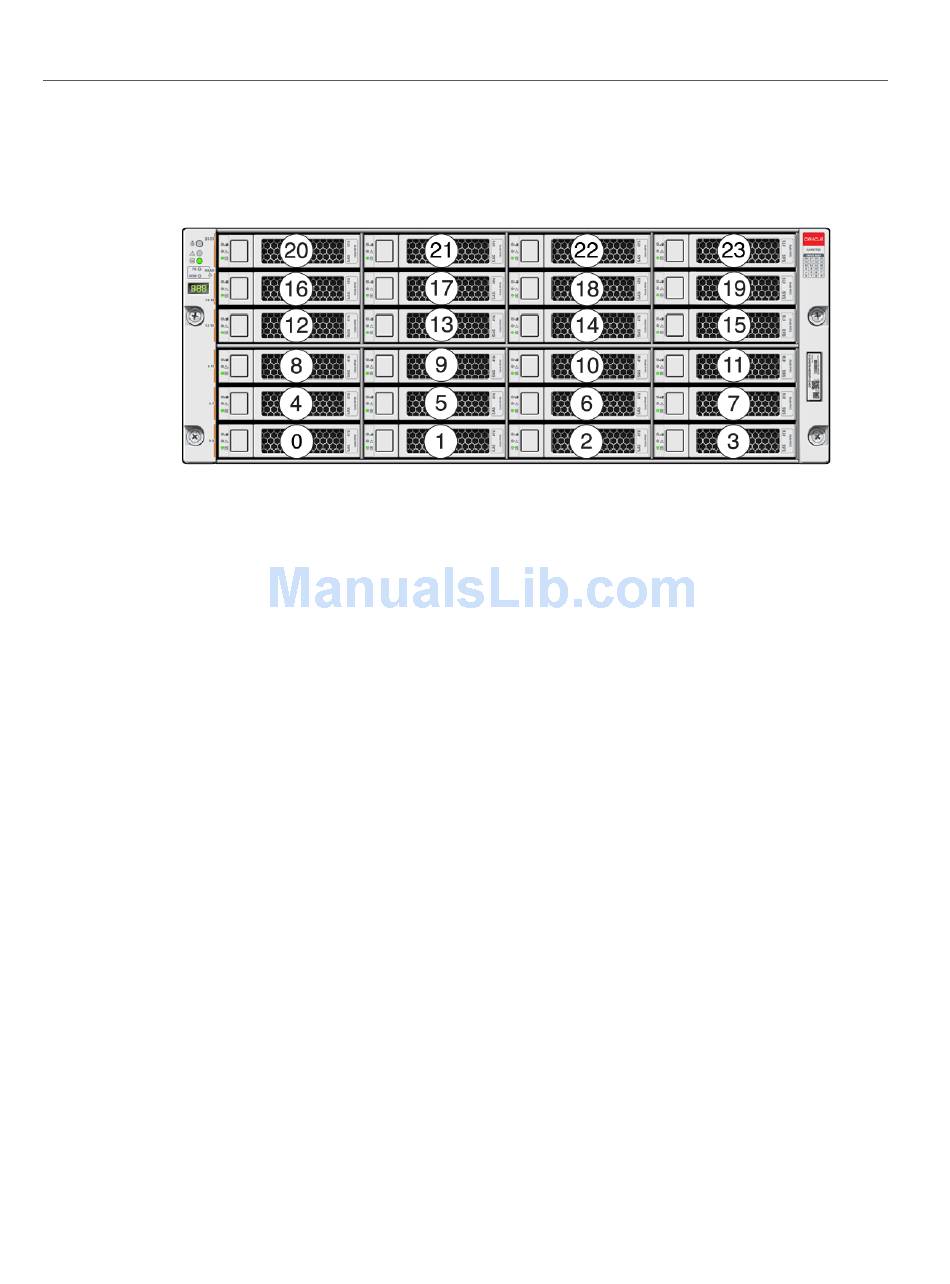

DE3-24C Drive Locations (Front View)
FIGURE 4
Up to four write-optimized log SSDs are supported per disk shelf. Log devices should be
populated in order of slots 20, 21, 22, and 23.
Read-optimized cache SSDs can also be installed in the DE3-24C disk shelf, for some
controllers. For slot configuration details and minimum software requirements, see
"Disk Shelf
Configurations" in Oracle ZFS Storage Appliance Customer Service
Manual.
Installation Prerequisites and Hardware Overviews
23
