Overview of ZS5-4 Controller

ZS5-4 Front Panel Components

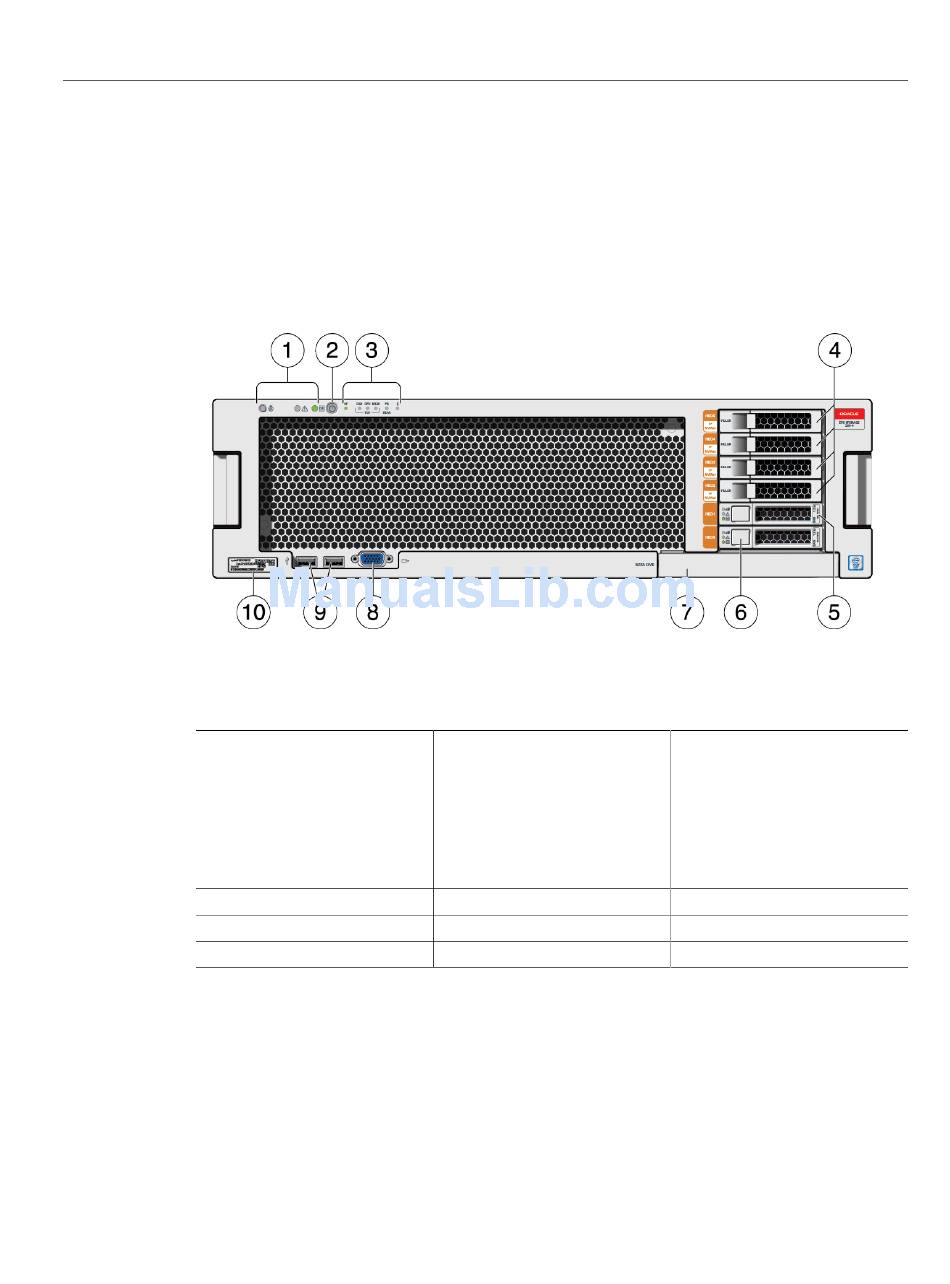

The ZS5-4 controller drive slots and front panel components are shown in the following figure.
FIGURE 22
1 LEDs (left to right)
■ Locator
■ Service action required
■ Power/OK
4 Permanent HDD filler panels
7 DVD filler panel
10 RFID tag

ZS5-4 Rear Panel Components

The ZS5-4 controller PCIe slots and rear panel components are shown in the following figure.
40 Oracle ZFS Storage Appliance Installation Guide • December 2016
ZS5-4 Front Panel
2 Power button
5 System disk 1
8 DB-15 VGA port
3 Alert indicators (left to right)
■ Service Processor (SP) OK/Fault
■ Fan/ CPU/ Memory service
action required
■ Power Supply (PS) service action
required
■ Over-temperature warning
6 System disk 0
9 Two USB 2.0 ports
