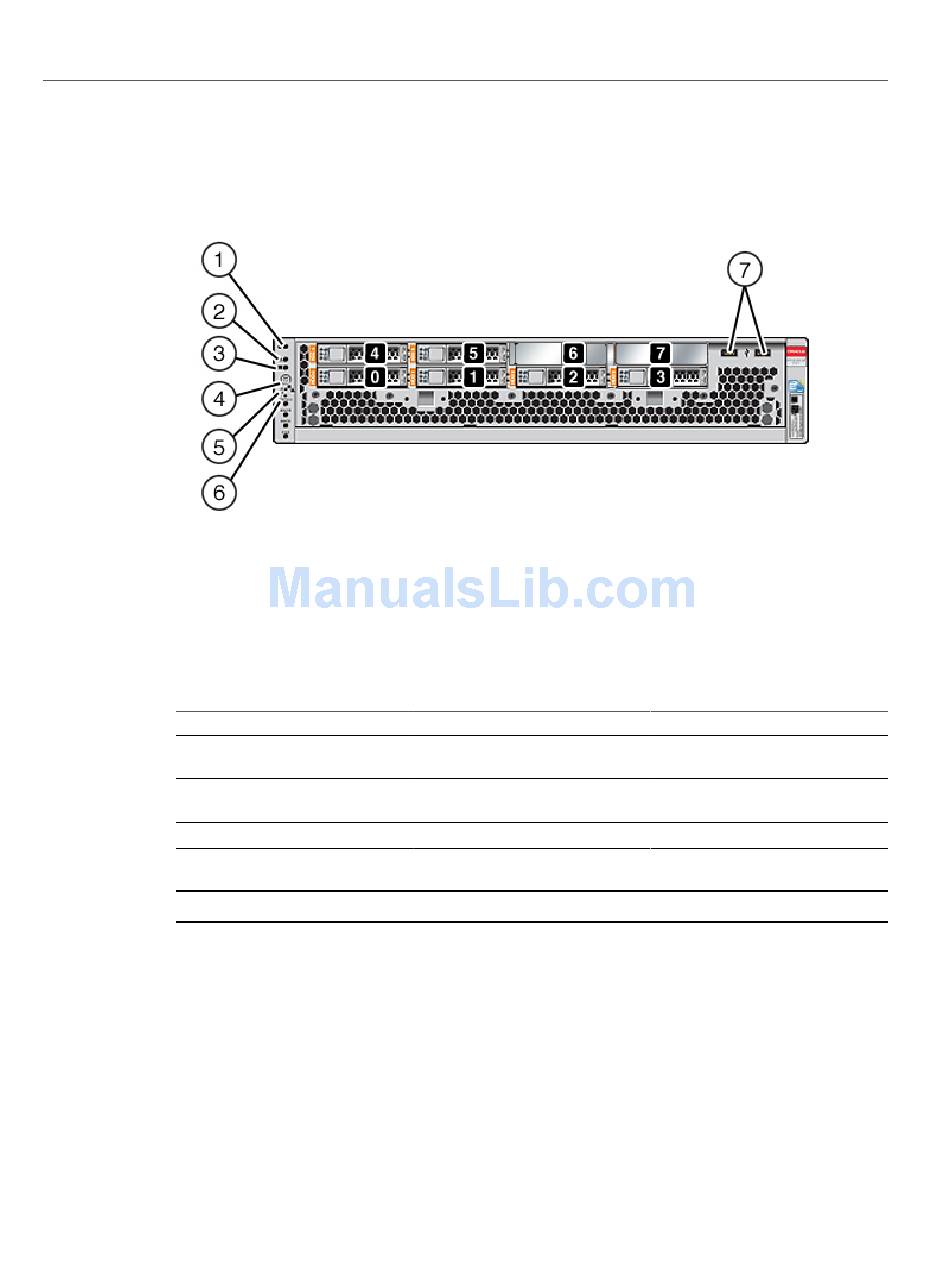

ZS3-2 Controller Front Panel
FIGURE 33
Drive slots 0 and 1 have two mirrored SAS-2 boot drives. Up to four read cache SSDs fill slots
2 through 5, in order. Slots 6 and 7 are empty and must contain drive fillers. For information
about supported HDDs and SSDs, see the
Figure Legend
1 Locator LED/button (white)
4 Power button
7 USB 2.0 ports
The LEDs below the Fan/CPU/Memory Service Required LED are not currently used.
Note -

ZS3-2 Rear Panel Components

The ZS3-2 controller PCIe slots and rear panel components are shown in the following figure.
For more information about PCIe cards, see
Appliance Customer Service
Oracle Systems
2 Service Action Required LED
(amber)
5 Service Processor OK LED (green)
"ZS3-2 PCIe I/O Cards" in Oracle ZFS Storage
Manual.
Installation Prerequisites and Hardware Overviews
Overview of ZS3-2 Controller
Handbook.
3 Power OK LED (green)
6 Fan/CPU/Memory Service
Required LED
