Installing a DE3-24C Disk Shelf
Caution -
the weight of the chassis. Attempting this procedure alone could result in equipment damage or
personal injury. Do not lift the chassis using the power supply handles.
1. Starting at the bottom of the cabinet, locate the appropriate rack unit (RU) height.
2. Unpack the contents of the disk shelf rail kit box, and identify the correct cage
nuts for your rack type.
There are two cage nut packets, each containing square or round hole cage nuts. Each packet
also contains a template for positioning the cage nuts.
Note -
for a round hole rack. Also, screws are not provided for M6-sized threaded rack holes.
Callout
1
2
3
3. Attach the disk shelf rails to the rack, as follows:
a. Orient the rail so that the stamped label (LEFT or RIGHT) is facing the inside
of the rack.
b. Adjust the rail length to fit the front and rear of the rack [A and B].
78 Oracle ZFS Storage Appliance Installation Guide • December 2016
This procedure requires a minimum of three people, or a mechanical lift, because of
This procedure shows rail kit installation for a square hole rack. The same steps apply

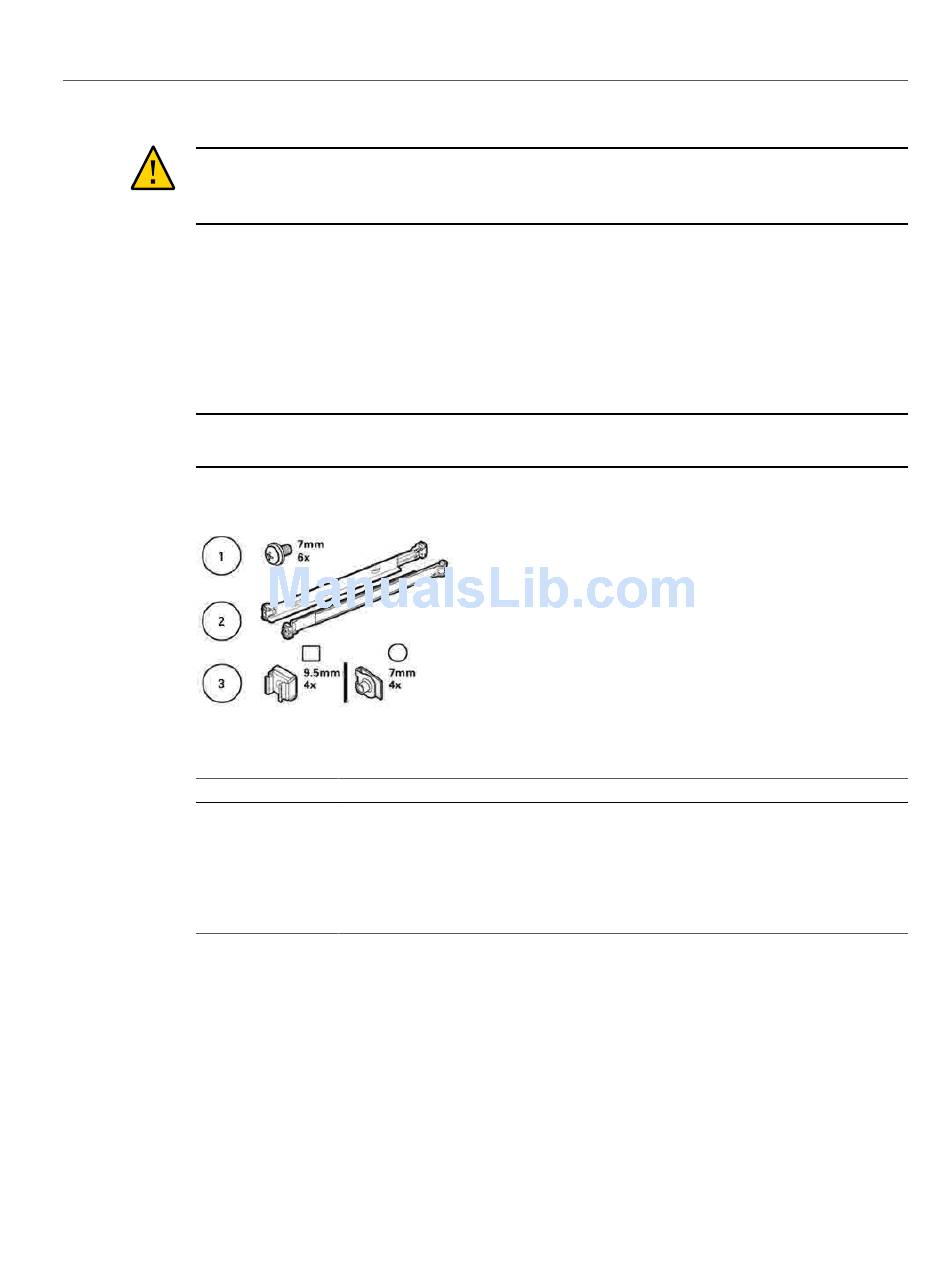

Description
Six 10-32 7 mm captive screws (two spares)
Two adjustable shelf rails
Two packets of four 10-32 cage nuts (only one set is required):
■ Four 9.5 mm square cage nuts (two spares)
■ Four 7 mm round cage nuts (two spares)
