Installing the Slide Rails into the Rack for a ZS5-4

Note -

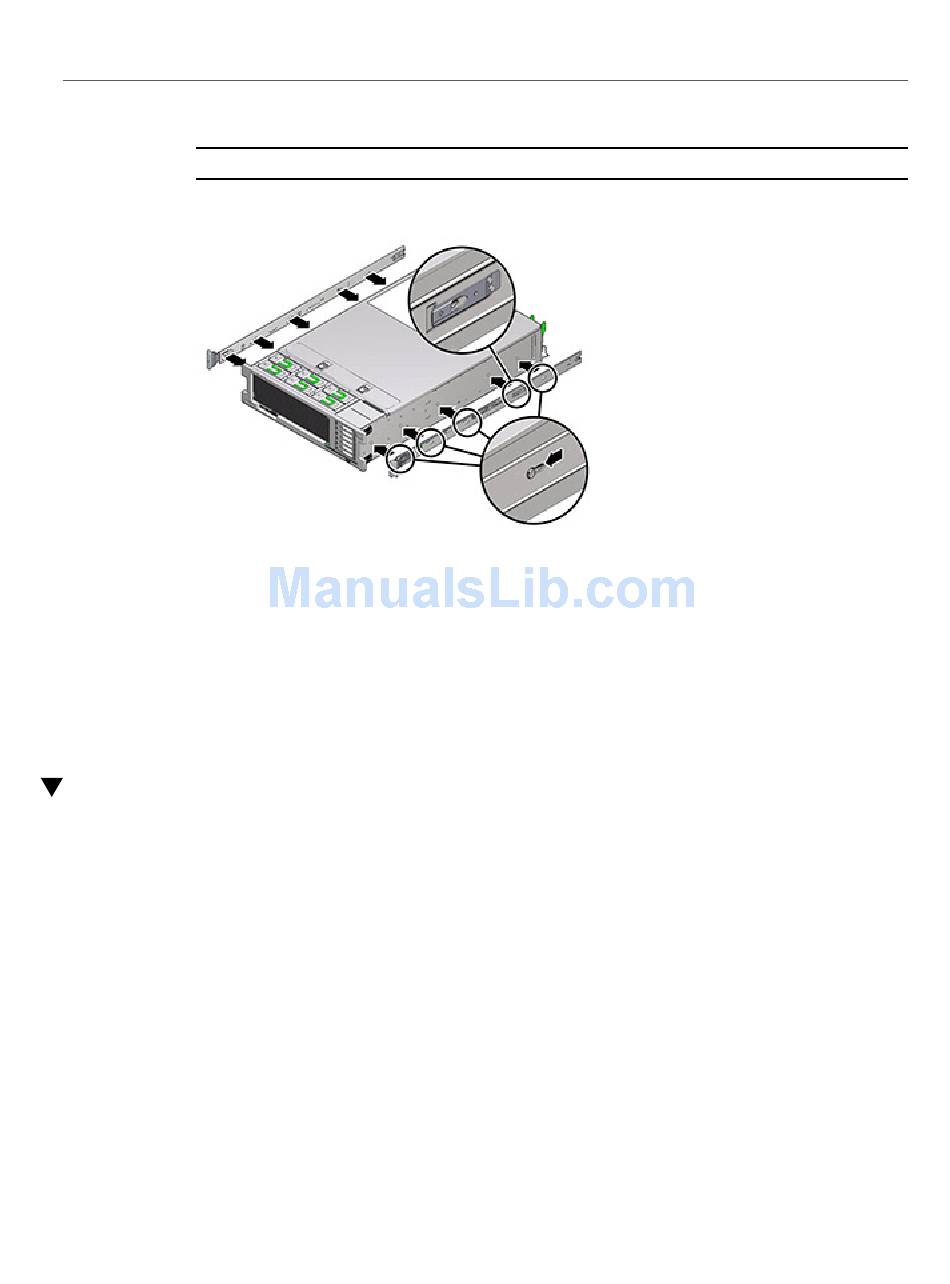

2. With the heads of the five chassis locating pins protruding though the five keyed
openings in the mounting bracket, pull the mounting bracket toward the front of
the chassis until the mounting bracket clip locks into place with an audible click.
3. Verify that the rear locating pin has engaged the mounting bracket clip.
To install the other mounting bracket on the other side of the chassis, repeat
4.
Steps 1 through 3.
Installing the Slide Rails into the Rack for a ZS5-4
Use the following procedure to install the slide rails into the rack for a ZS5-4 controller.
If you plan to move the rack after the controller is installed, use mounting screws and cage nuts
to secure the slide-rail assembly. Refer to Rail Rackmount Kit Overview and Information card
for instructions on inserting these cage nuts. This card is included with the rack kit.
1. Position a slide-rail assembly in your rack so that the slide-rail assembly front
bracket is on the outside of the front rack post and the slide-rail assembly rear
bracket is on the inside of the rear rack post.
2. Align the slide-rail assembly mounting pins with the front and rear rack post
mounting holes. Then lock the assembly into place by pushing the assembly
100 Oracle ZFS Storage Appliance Installation Guide • December 2016
The mounting brackets are identical and can be installed on either side of the chassis.
