Verifying Operation of ZS5-4 Slide-Rails and CMA

5. If required, attach the cable hook and loop straps to the CMA, and press them
into place to secure the cables.
Note -
to reinstall cable hooks and straps.

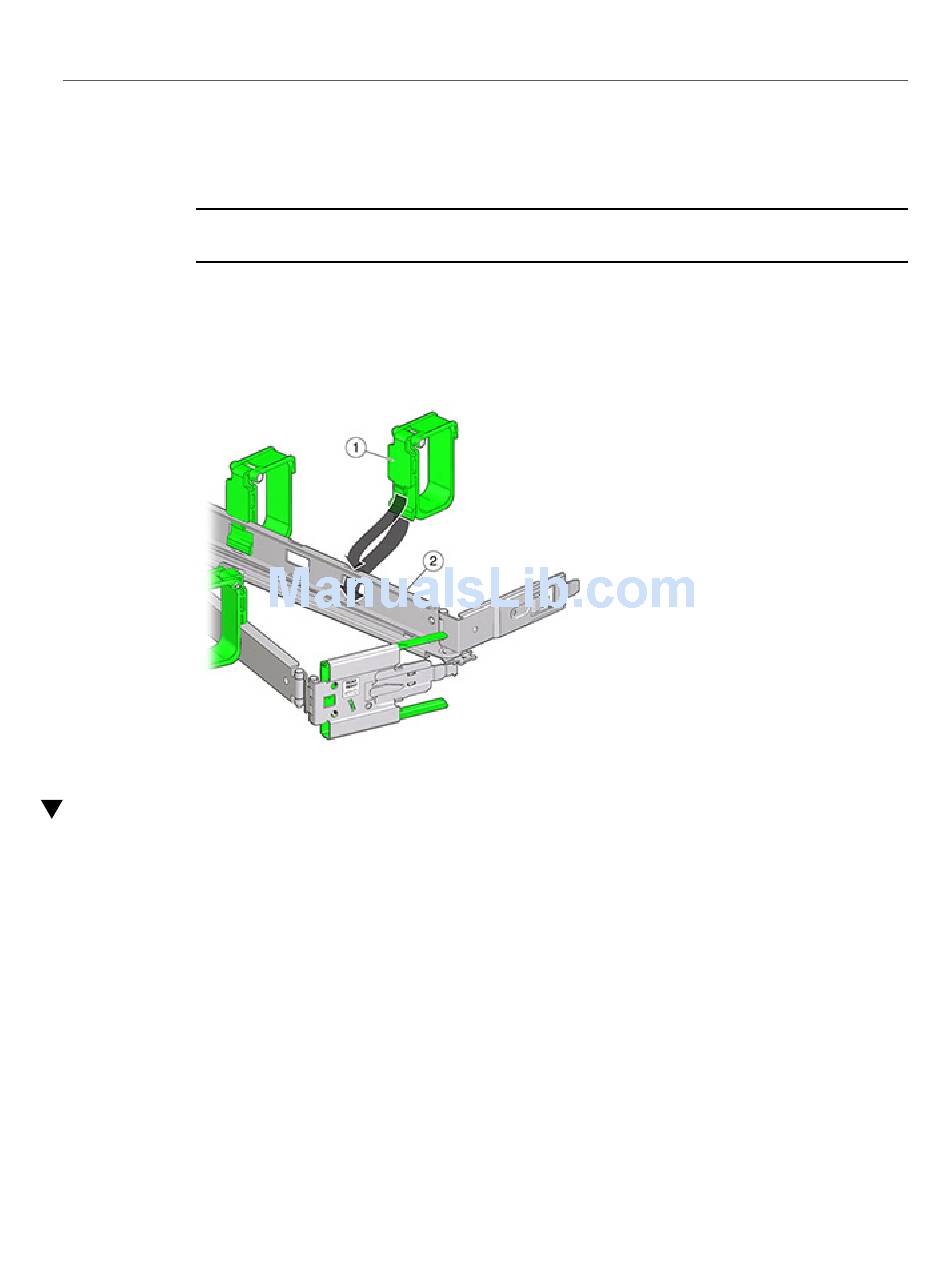

6. For best results, place three cable straps (1), evenly spaced, on the rear-facing
side of the CMA arm (2), and three cable straps on the side of the CMA nearest
the controller.
Verifying Operation of ZS5-4 Slide-Rails and CMA
Use the following procedure to verify the operation of the CMA and slide rails for a ZS5-4
controller.
Ensure all rack anti-tilt devices are extended to prevent the rack from tipping forward when the
Before You Begin
storage controller is extended from the rack.
Slowly pull the storage controller out of the rack until the slide-rails reach their
1.
stops.
2. Inspect the attached cables for any binding or kinks.
3. Verify that the CMA extends fully with the slide-rails.
106 Oracle ZFS Storage Appliance Installation Guide • December 2016
Cable hooks and loop straps are preinstalled on the CMA. Perform this step if you need
