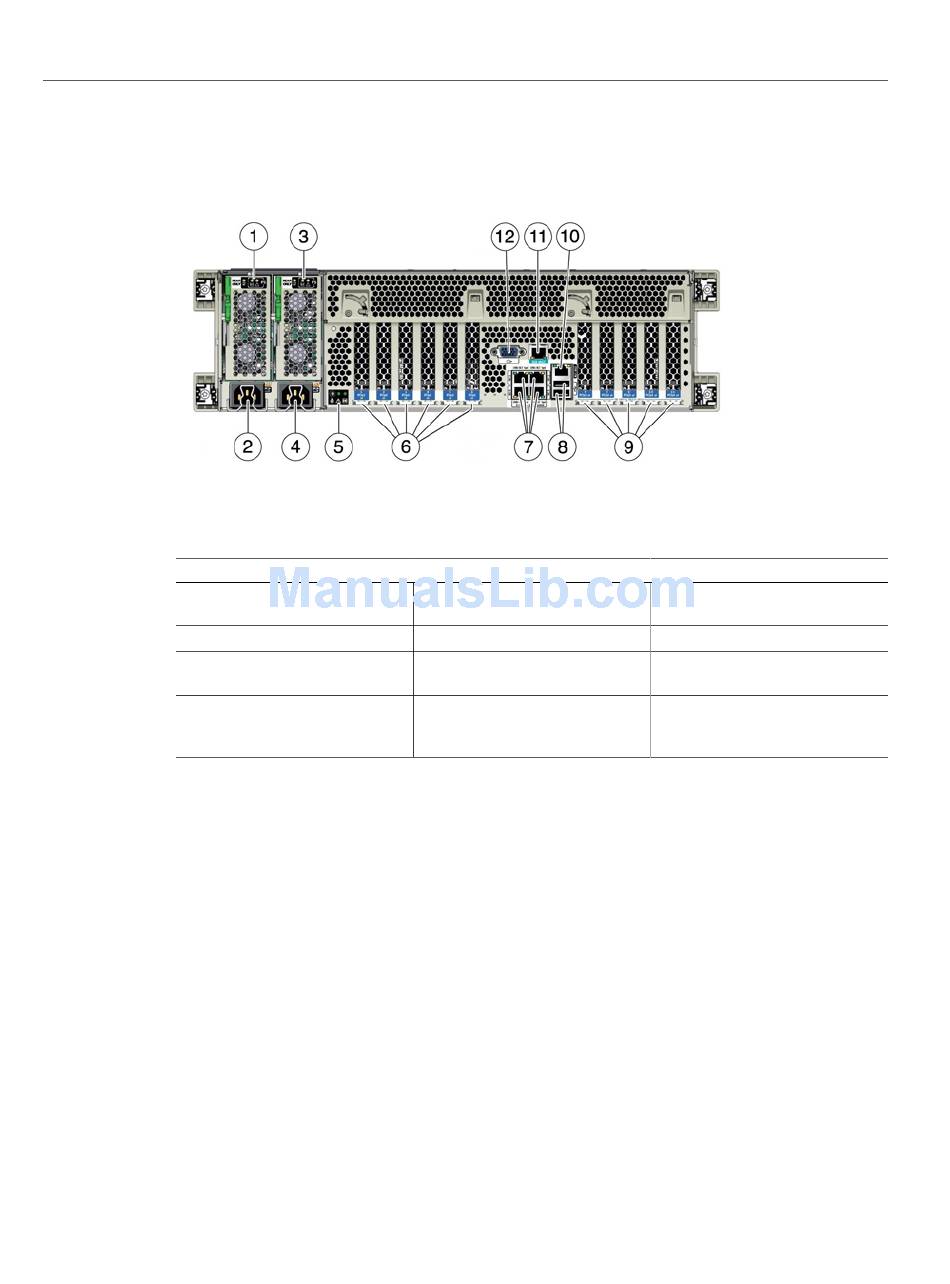

ZS4-4 Controller Rear Panel
FIGURE 29
Figure Legend
1 Power supply unit (PSU) 0
indicator panel
4 PSU 1 AC inlet
7 Network (NET) 10 GbE ports:
NET 0, NET 1, NET 2, NET 3
10 Network management (NET
MGT) 10/100/1000 BASE-T
Ethernet port
PCIe Slots - The ZS4-4 base configuration contains the following PCIe cards:
■
Slot 2 - One 8-port SAS-2 internal HBA
■
Slot 4 - One cluster interface card
■
Slots 6 and 7 - Two 4-port (4x4) SAS-2 external HBAs
■
For information about PCIe slot order, see
Appliance Customer Service Manual.
Ethernet Ports - The ZS4-4 has four RJ-45 10-Gigabit Ethernet (10GbE) network
■
connectors on the rear panel, labeled NET 0, NET 1, NET 2, and NET 3 (bottom left to
top right), as shown in the following figure. Use these ports to connect the appliance to the
network.
The LEDs located above the NET ports, labeled 2, 0, 3, 1 (left to right) are Link/Activity
indicators.
2 PSU 0 AC inlet
5 System status indicator panel
8 USB 2.0 connectors (2)
11 Serial management (SER MGT)
RJ-45 port
"ZS4-4 PCIe I/O Cards" in Oracle ZFS Storage
Installation Prerequisites and Hardware Overviews
Overview of ZS4-4 Controller
3 PSU 1 indicator panel
6 PCIe card slots 1-6
9 PCIe card slots 7-11
12 DB-15 video port
