4.
Using a mechanical lift or two people, one at each side of the disk shelf, carefully
lift and rest the shelf on the bottom ledge of the left and right rails. Do not lift
using the power supply with fan module handles.
5.

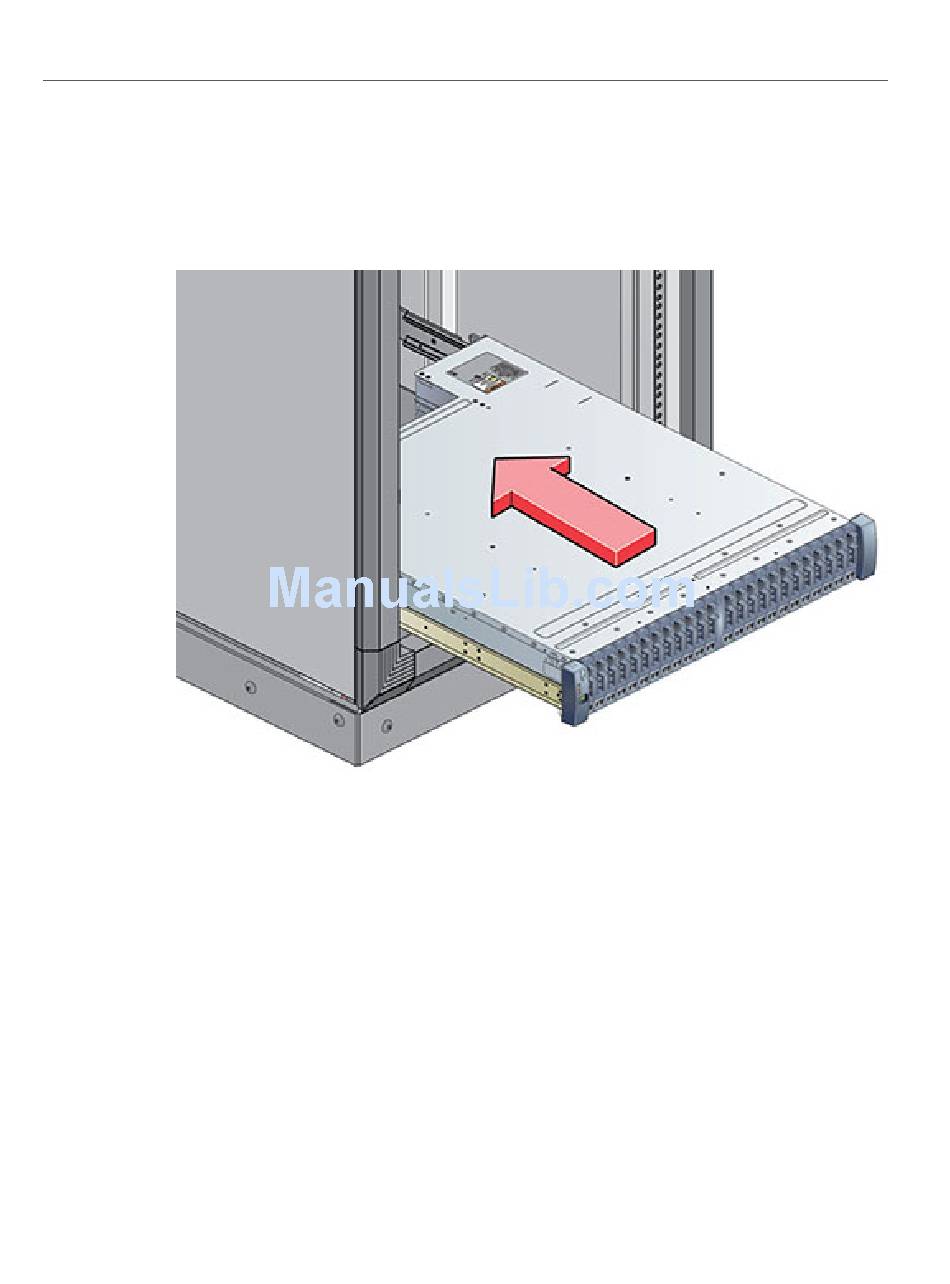

Carefully slide the shelf into the rails until it is fully seated within the cabinet.
The spotter, using a flashlight, should ensure that the shelf is fully seated within
the rails. If removing the shelf to reseat it, support it at all times.
Installing a DE2-24P Disk Shelf
Installing Disk Shelves
87
