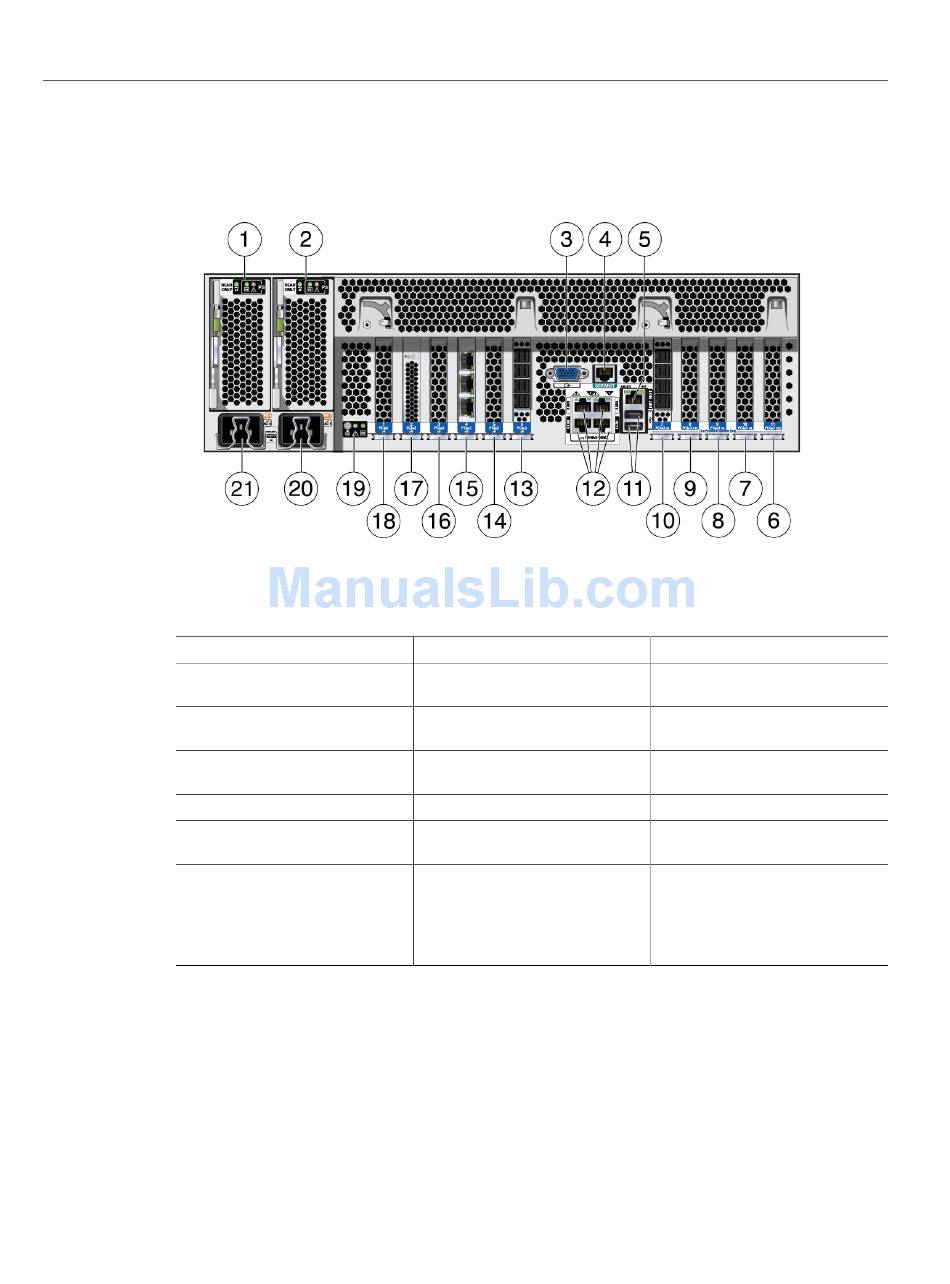

ZS5-4 Rear Panel
FIGURE 23
1 Power Supply Unit (PSU) 0
4 SER MGT port
7 Fifth PCIe (slot 10)
10 4X4 SAS HBA (slot 7)
13 4X4 SAS HBA (slot 6)
16 Fourth 4X4 SAS HBA or sixth
PCIe (slot 3)
19 System status LEDs (left to right)
■ Power/OK (green)
■ Attention (amber)
■ Locate (white)
Cluster Interface Card Compatibility - The ZS5-4 controller contains a Version 3 cluster
interface card, which is incompatible with Version 2.
For information about how to connect cables to form a cluster, see
in Oracle ZFS Storage Appliance Cabling
2 PSU 1
5 Service Processor (SP) NET MGT
port
8 Third 4x4 SAS HBA or seventh
PCIe (slot 9)
11 Two USB 2.0 ports
14 Third PCIe (slot 5)
17 Internal SAS-3 HBA (slot 2)
20 PSU 1 AC inlet
Guide.
Installation Prerequisites and Hardware Overviews
Overview of ZS5-4 Controller
3 DB-15 VGA port
6 First PCle (slot 11)
9 Second PCIe (slot 8)
12 Network (NET) 10 Gb Ethernet
ports, NET 0 - NET 3
15 Cluster interface card (slot 4)
18 Fourth PCIe (slot 1)
21 PSU 0 AC inlet
