7320 Rear Panel Components

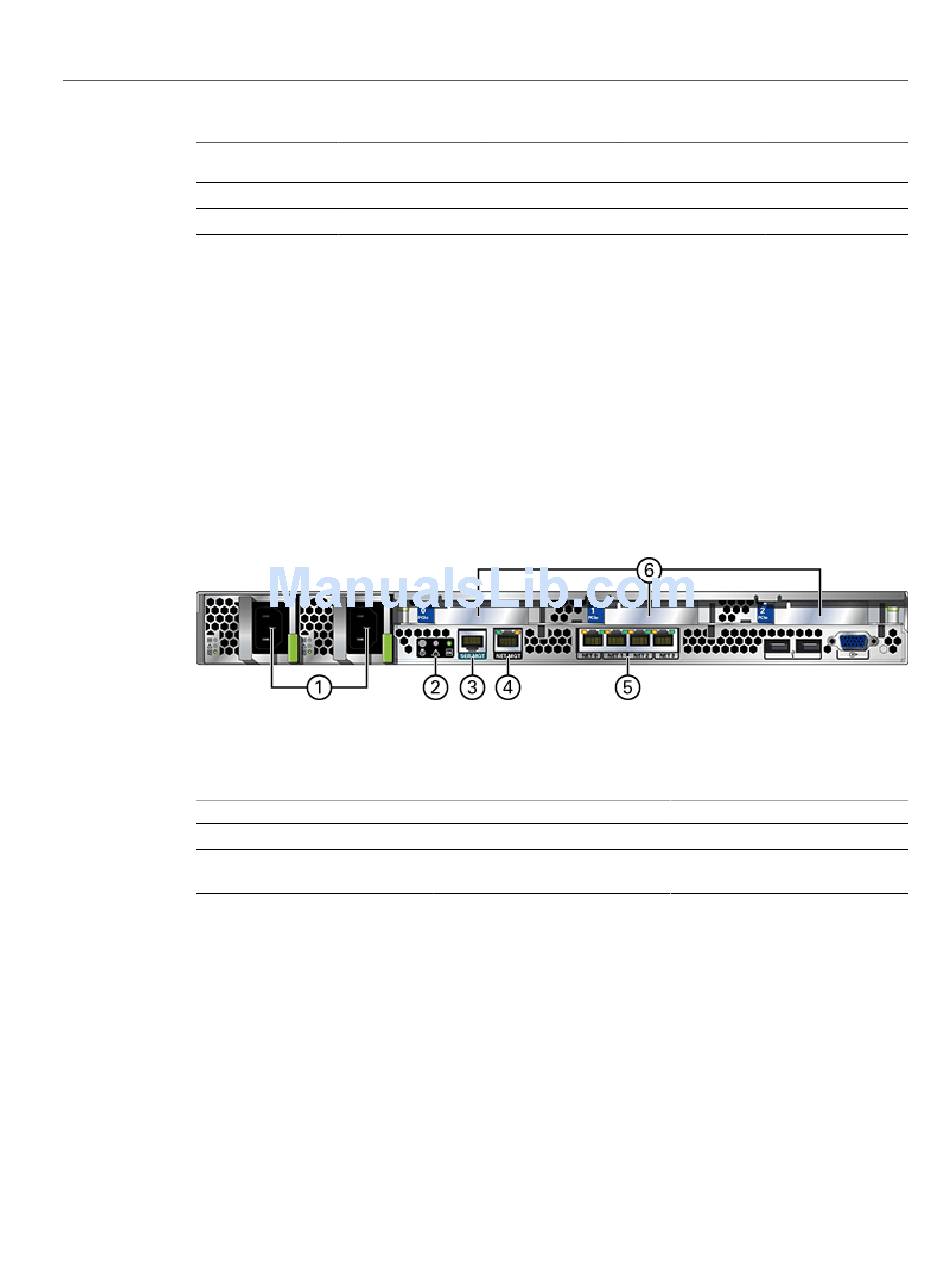

Following is an illustration of the 7320 storage controller rear panel. The Sun 375-3609 belongs
in slot 2, cannot be installed in any other slots, and a second is not offered as an option.
For information about PCIe cards, see
Appliance Customer Service
FIGURE 41
Figure Legend
1 Power supplies
4 Network management (NET MGT)
10/100 BASE-T Ethernet port
The 7320 controller has the following ports:
Ethernet Ports - There are four RJ-45 Gigabit Ethernet ports (NET 0, NET 1, NET 2,
■
NET 3) located on the motherboard that operate at 10/100/1000 Mbit/sec. These network
interfaces must be configured before use.
Network Management Port - The network management connector (NET MGT) is an RJ-
■
45 10/100 BASE-T Ethernet port and provides an alternate terminal interface to the SP
console.
68 Oracle ZFS Storage Appliance Installation Guide • December 2016
HDD3 HDD5
HDD2 HDD4
"7320 Configuration Options" in Oracle ZFS Storage
Manual.
7320 Controller Rear Panel
2 SC summary status LEDs
5 Ethernet ports
HDD6 HDD7
3 Serial management port
6 PCIe slots
