6.
Using a mechanical lift or two people, one at each side of the shelf or controller,
carefully lift and rest the shelf on the bottom ledge of the left and right rails. The

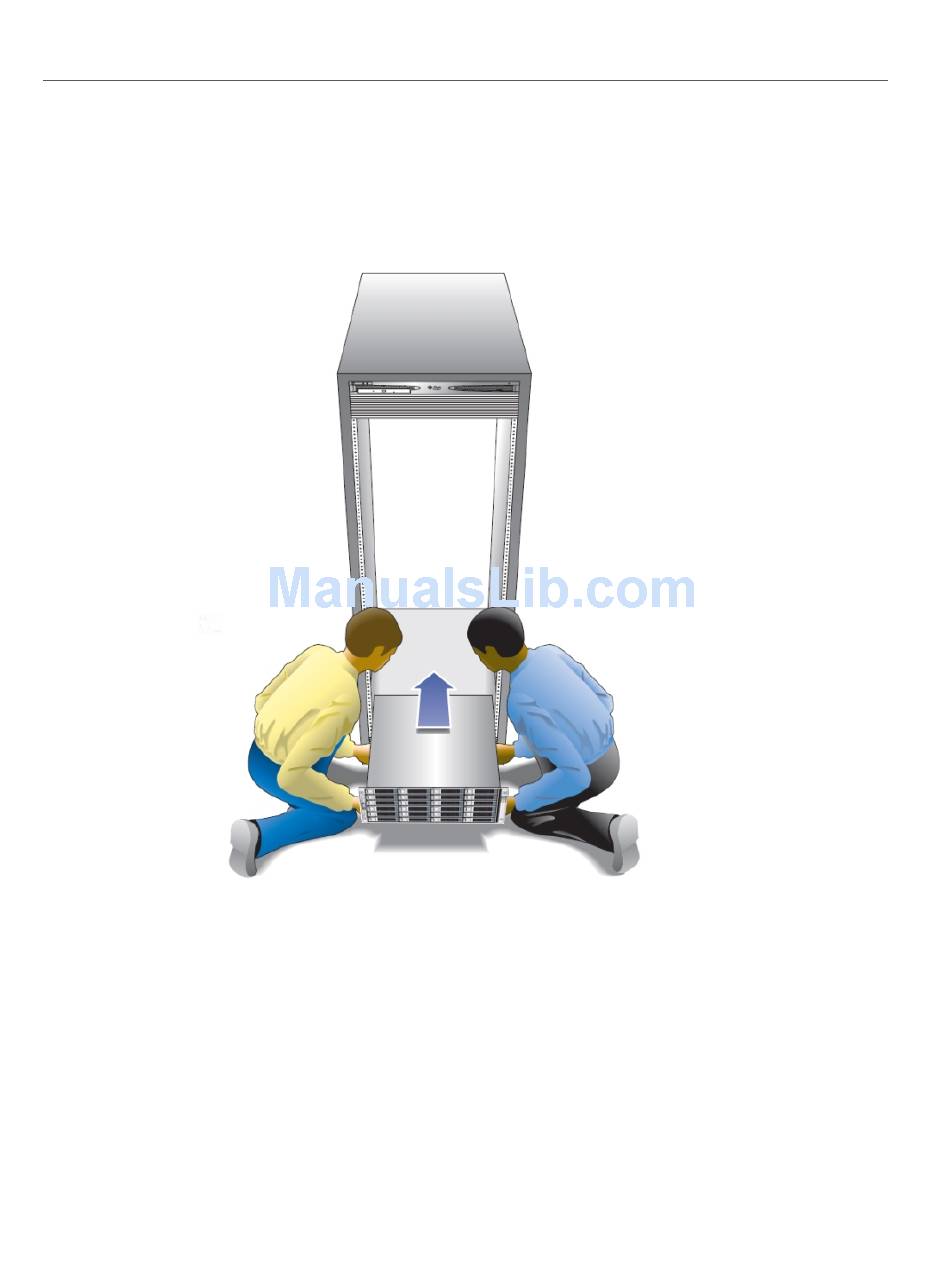

following graphic illustrates the chassis insertion.
7.
Carefully slide the shelf into the cabinet until the front flanges of the shelf touch
the vertical face of the rack.
8.
Tighten the captive screws on each side of the front of the shelf to secure the
shelf to the rack.
9.
At the back of the disk shelf, slide a system locking clip onto each lower corner
of the chassis.
Installing a Sun Disk Shelf
Installing Disk Shelves
97
