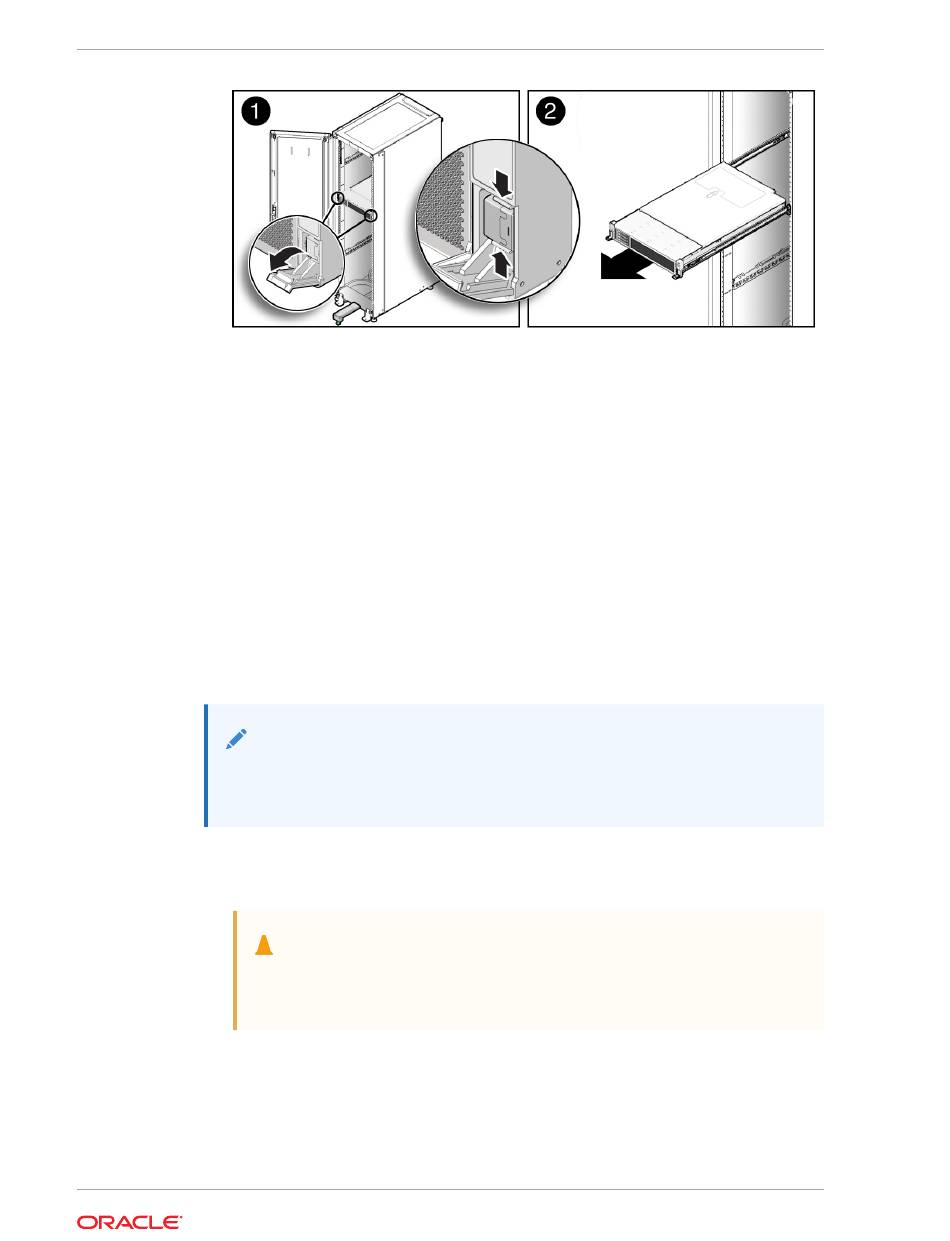

While the release latch covers are in the open position, slowly pull the server
4.
forward until the slide-rails latch into a locked position [2].
The server is now in the extended maintenance position.
Remove the Cable Management Arm
Follow this procedure to remove the cable management arm (CMA). You might need
to remove the CMA to service power supplies or cables connected to the back of the
system.
Before you begin this procedure, refer to the illustration provided in the procedure
Install the Cable Management Arm (Optional)
D. Disconnect the CMA connectors in the reverse order in which you installed them,
that is, disconnect connector D first, followed by C, B, and A.
Throughout this procedure, after you disconnect any of the CMA four connectors, do
not allow the CMA to hang under its own weight.
Note:
References to "left" or "right" in this procedure assume that you are facing
the back of the equipment rack.
To prevent the rack from tipping forward when the server is extended, ensure that
1.
the rack anti-tilt bar is extended.
For instructions to stabilize the rack, see
To make it easier to remove the CMA, extend the server approximately 13 cm (5
2.
inches) out of the front of the rack.
To remove the cables from the CMA:
3.
Caution:
To reduce the risk of personal injury, stabilize the rack cabinet and
extend the anti-tilt bar before extending the server from the rack.
Preparing the Server for Component Replacement
to identify CMA connectors A, B, C, and
Stabilize the
Rack.
Chapter 2
2-14
