Overview of Disk Shelves

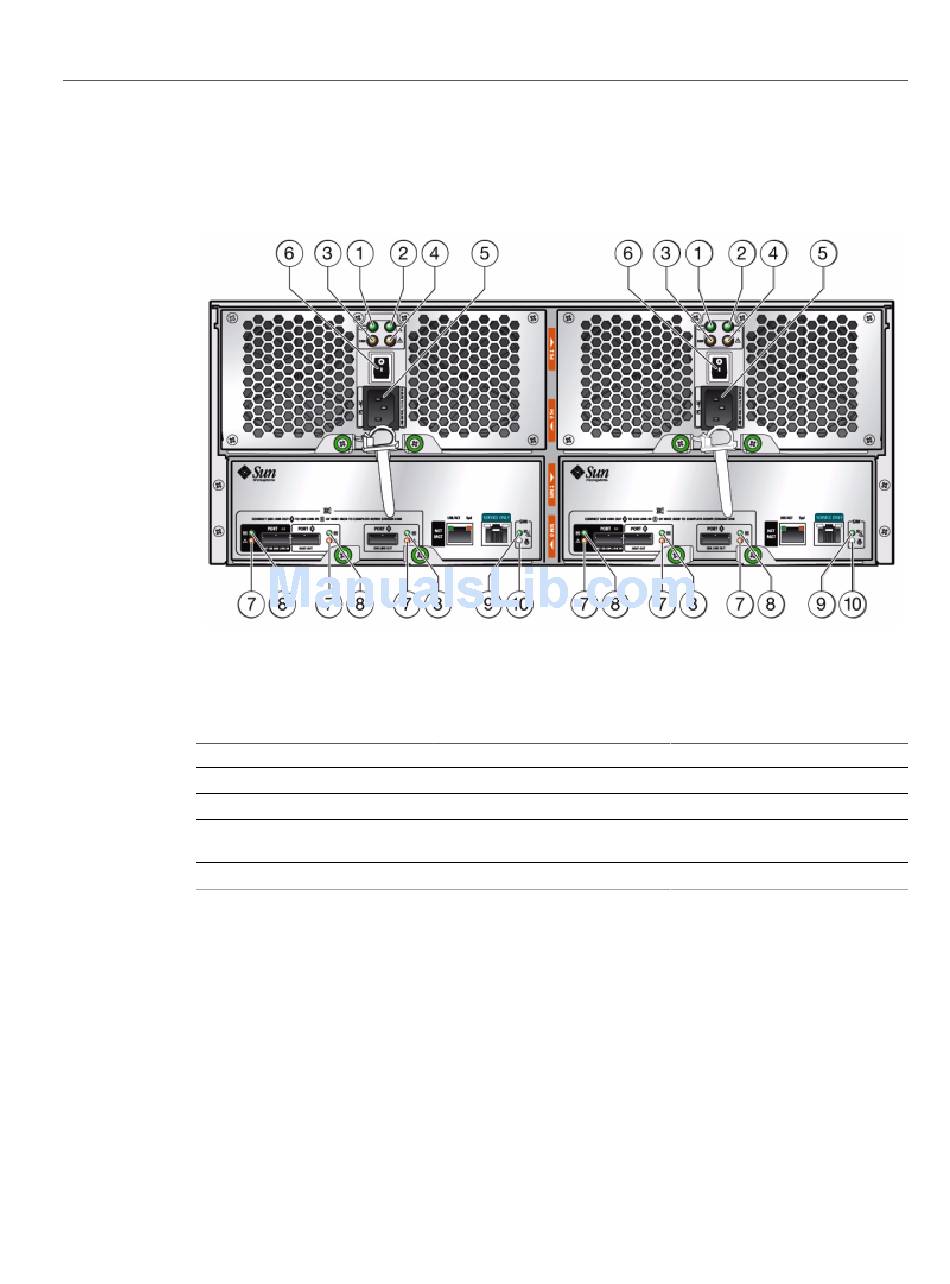

FIGURE 20
Figure Legend
1 AC power indicator
4 Power supply fault indicator
7 Port fault indicator
10 SIM locator indicator
36
Oracle ZFS Storage Appliance Installation Guide • December 2016
Sun Disk Shelf SIM Board Indicators
2 DC power indicator
5 Universal power connector
8 Port OK indicator
3 Fan fault indicator
6 Power switch
9 SIM board OK indicator (green)/
SIM board fault indicator (amber)
