7320 Front Panel Components

The following figure and legend identify the front panel LEDs.

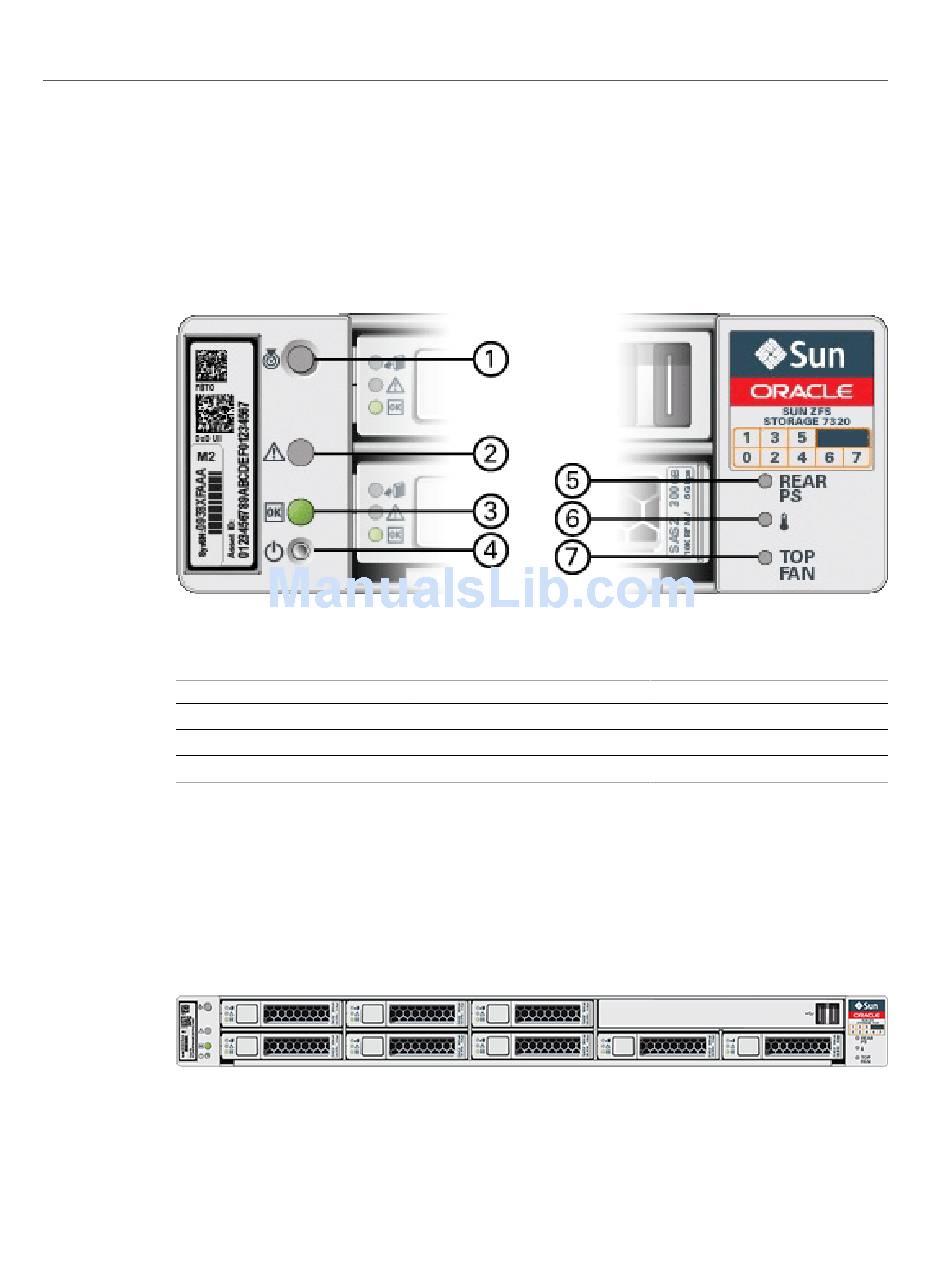

FIGURE 39 7320 Controller Front Panel
Figure Legend
1 Locate Button/LED
4 Power Button
7 Top Fan
The following figure and legend identify the 7320 front panel drive locations. Two mirrored
hard disk drives (HDDs) that store the operating system reside in slots 0 and 1. Up to four solid
state drives (ReadZilla SSDs), which store the read cache, fill slots 2 through 5, in order. Slots 6
and 7 are empty and must contain drive fillers.
FIGURE 40 7320 Front Panel Drive Locations
2 Service Required LED (amber)
5 Rear Power Supply
Installation Prerequisites and Hardware Overviews
Overview of 7320 Controller
3 Power/OK LED (green)
6 System Overtemperature LED
