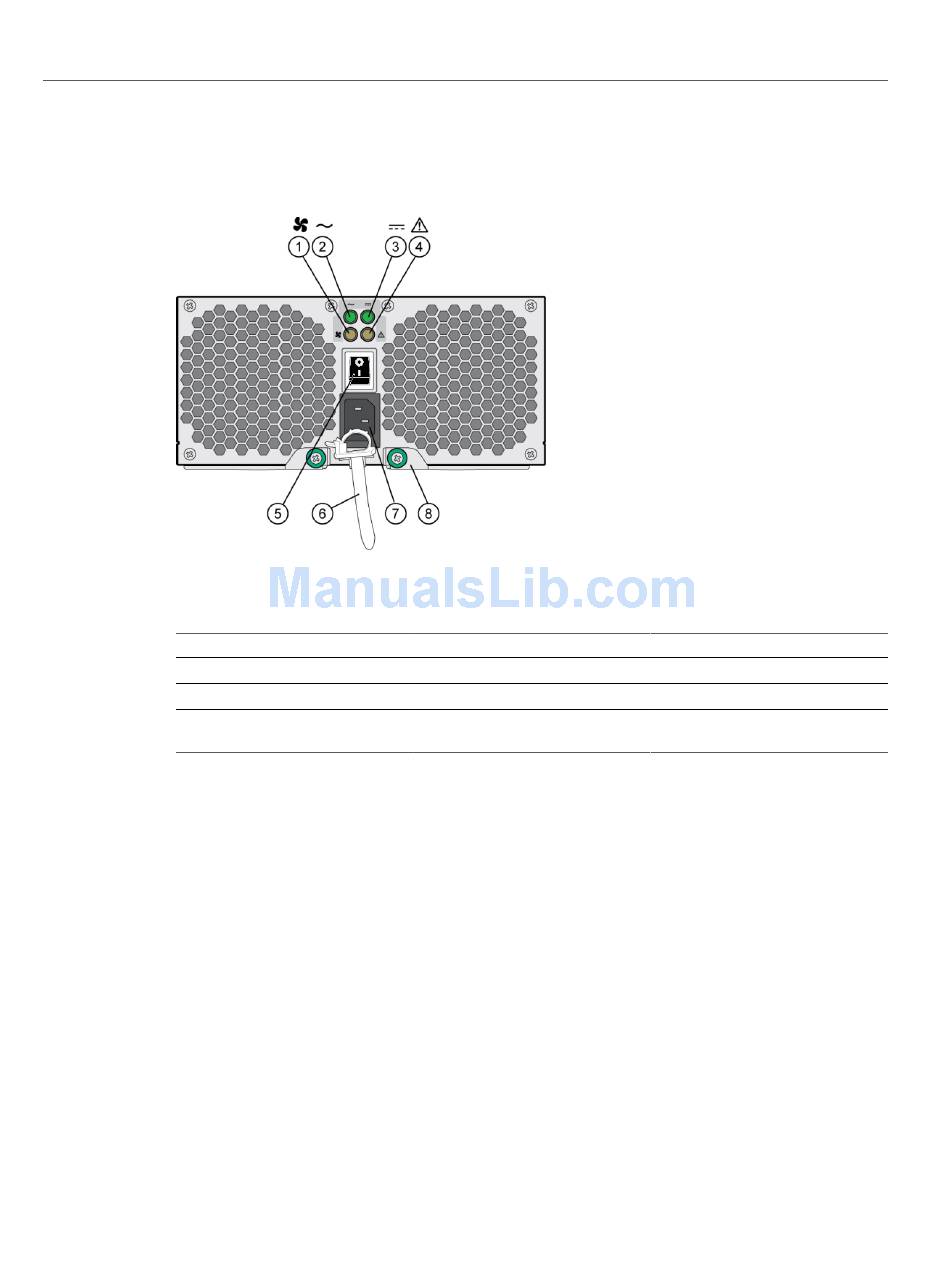

Sun Disk Shelf Power Supply and Fan Module Indicators
FIGURE 21
Figure Legend
1 Cooling fan status indicator
4 Power supply status indicator
7 Universal power input connector
Disk Shelf Components
The following sections describe each disk shelf's components:
Oracle Storage Drive Enclosure DE3-24P Components
Drive Enclosure DE3-24P Base Chassis
■
Filler Panel, Drive Enclosure DE3-24P
■
Up to 24 2.5" SAS-3 HDDs, SSDs. For information about supported HDDs and SSDs, see
■
the
Oracle Systems
Handbook.
Oracle Storage Drive Enclosure DE3-24C Components
Drive Enclosure DE3-24C Base Chassis
■
Filler Panel, Drive Enclosure DE3-24C
■
2 AC power status indicator
5 Power on/off switch
8 Right ejection arm and captive
screw latch
Installation Prerequisites and Hardware Overviews
Overview of Disk Shelves
3 DC power status indicator
6 Power cord tie wrap
37
