1.

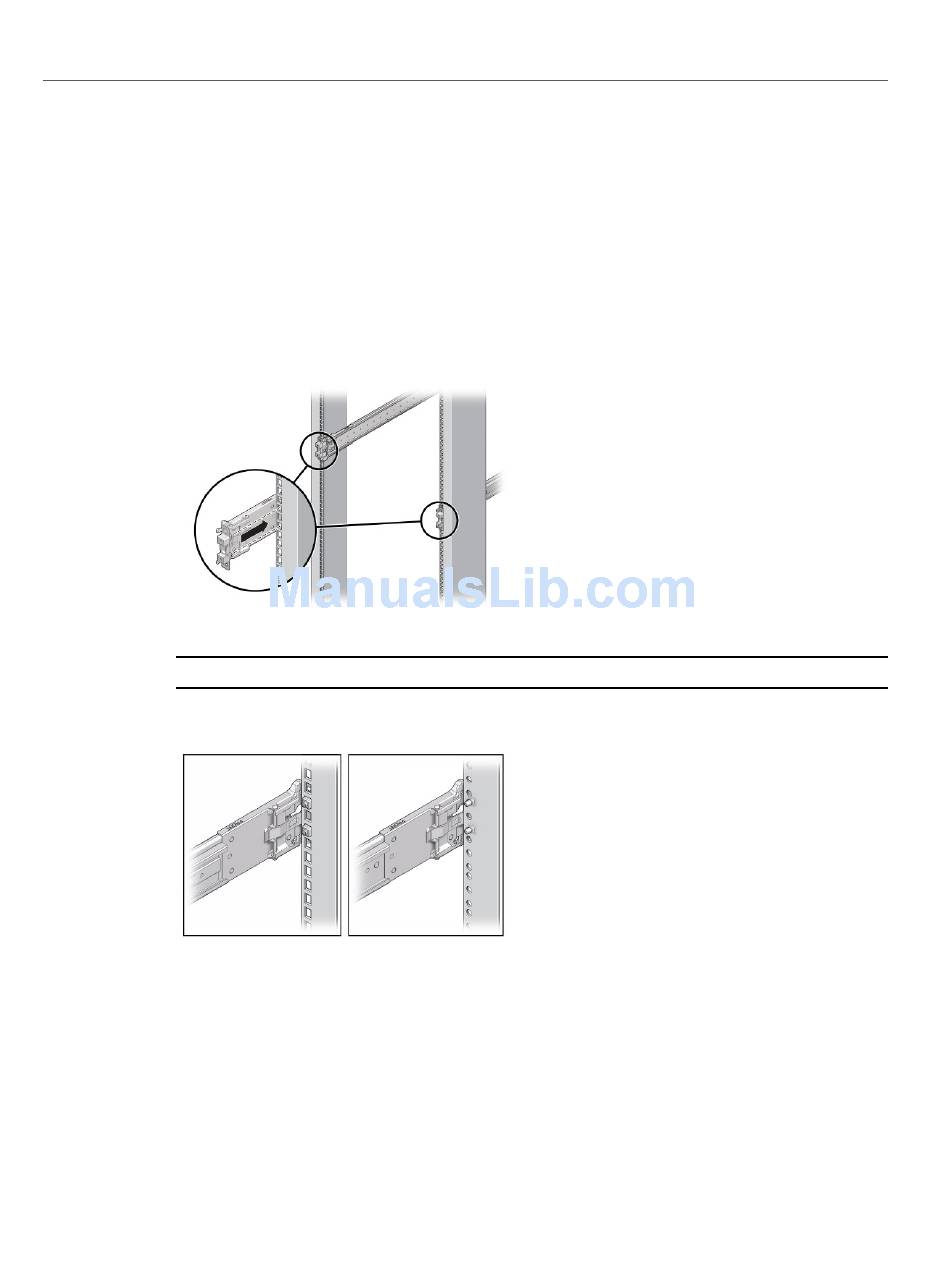

Position a slide-rail assembly in your rack so that the slide-rail assembly front
bracket is on the outside of the front rack post and the slide-rail assembly rear
bracket is on the inside of the rear rack post.
2.
Align the slide-rail assembly mounting pins with the front and rear rack post
mounting holes. Then lock the assembly into place by pushing the assembly
toward the rear of the rack until the mounting pins engage the rack with an
audible click.
The slide rails can be used with either 9.5-mm square or M6 round mounting hole racks.
Note -
3.
(Optional) If installing the assembly with cage nuts and mounting screws, insert
the cage nuts into the front and rear rack posts in the desired positions. Then
Installing the Slide Rails into the Rack for a ZS4-4 or ZS3-4
Installing a ZS4-4 or ZS3-4 Controller
129
