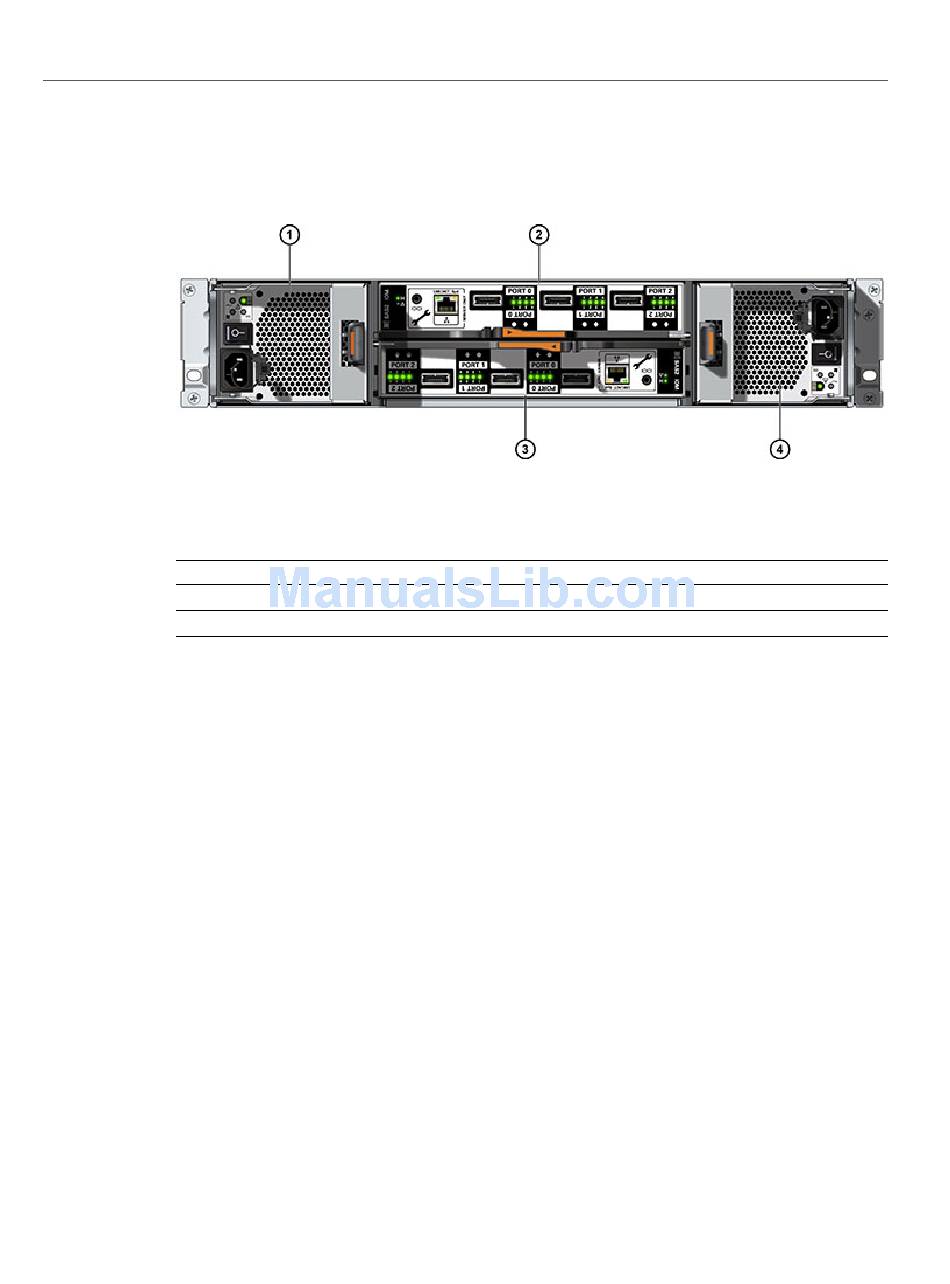

DE2-24P Rear Panel
FIGURE 11
Figure Legend
1 Power supply with fan module 0
3 I/O Module 0
DE2-24C Disk Shelf
The Oracle Storage Drive Enclosure DE2-24C is a 4U chassis that supports 24 3.5" SAS-2
drives. The high-capacity HDDs provide reliable storage. The SSDs provide accelerated write
operations, and for some controllers, read-optimized cache operations. This disk shelf features
dual, redundant I/O Modules (IOMs), and dual power supply with fan modules.
2 I/O Module 1
4 Power supply with fan module 1
Installation Prerequisites and Hardware Overviews
Overview of Disk Shelves
