Installing a ZS5-2 Cable Management Arm
10.

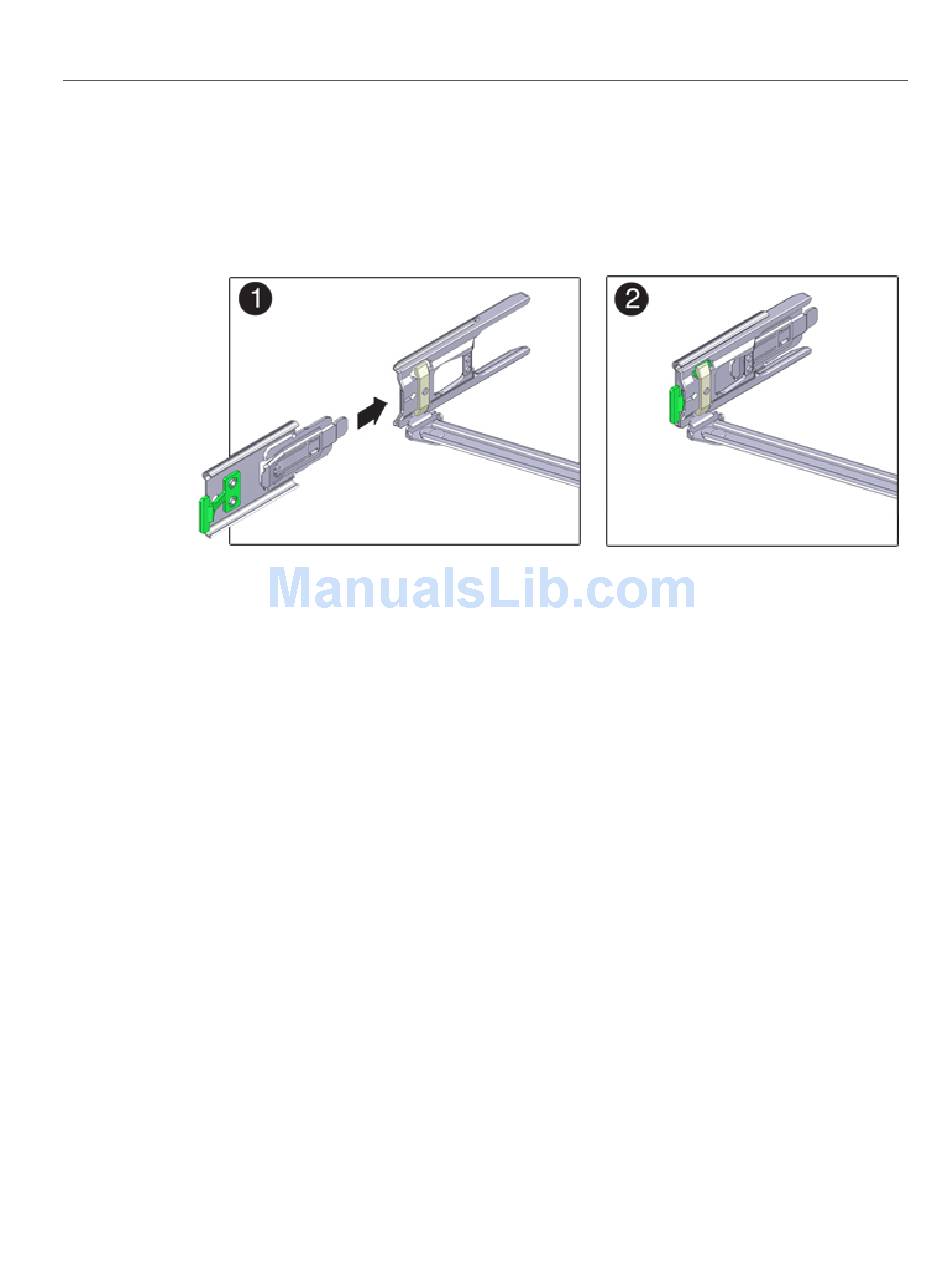

To prepare the CMA's connector D for installation, remove the tape that secures
the slide-rail latching bracket to connector D and ensure that the latching
bracket is properly aligned with connector D (frames 1 and 2).
11.
While holding the slide-rail latching bracket in place, insert connector D and
its associated slide-rail latching bracket into the left slide-rail until connector D
locks into place with an audible click (frames 1 and 2).
122
Oracle ZFS Storage Appliance Installation Guide • December 2016
