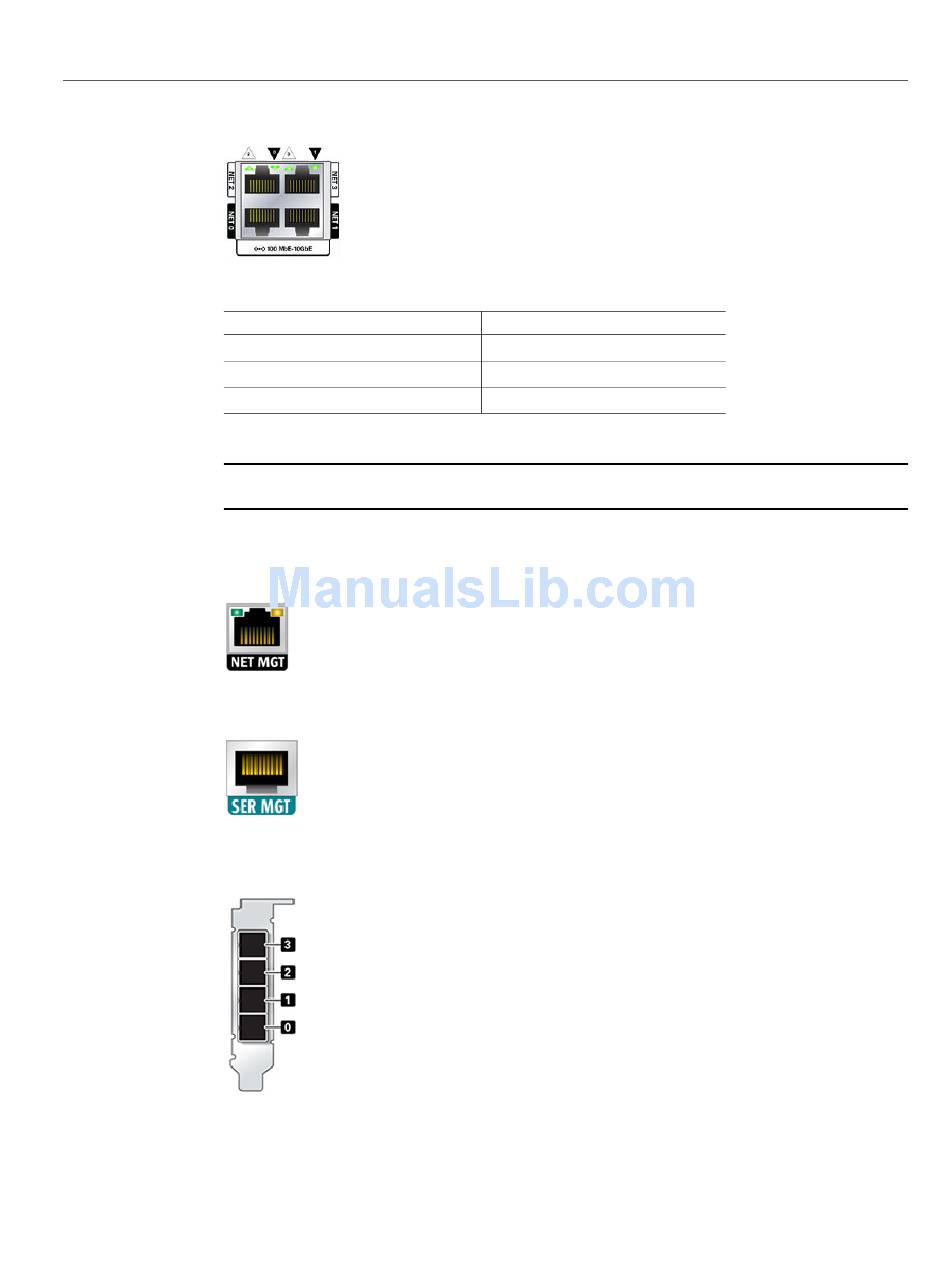

Overview of ZS4-4 Controller
LED
OFF (1)
ON (0)
Blink
Note -
Network Management Port - The network management connector (NET MGT) is an RJ-
■
45 10/100/1000 BASE-T Ethernet port and provides an alternate terminal interface to the
service processor (SP) console.
Serial Management Port - The serial management connector (SER MGT) is an RJ-45 port
■
and provides a terminal connection to the SP console.
HBA Ports - The 4x4 SAS-2 HBA provides connectivity to external DE2-24 disk shelves.
■
The HBA ports are numbered 0-3, bottom to top.
50
Oracle ZFS Storage Appliance Installation Guide • December 2016
Speed is not indicated for the NET ports.
Status
No Link
Link and no activity
Link and activity
