Installing a ZS5-2 Cable Management Arm

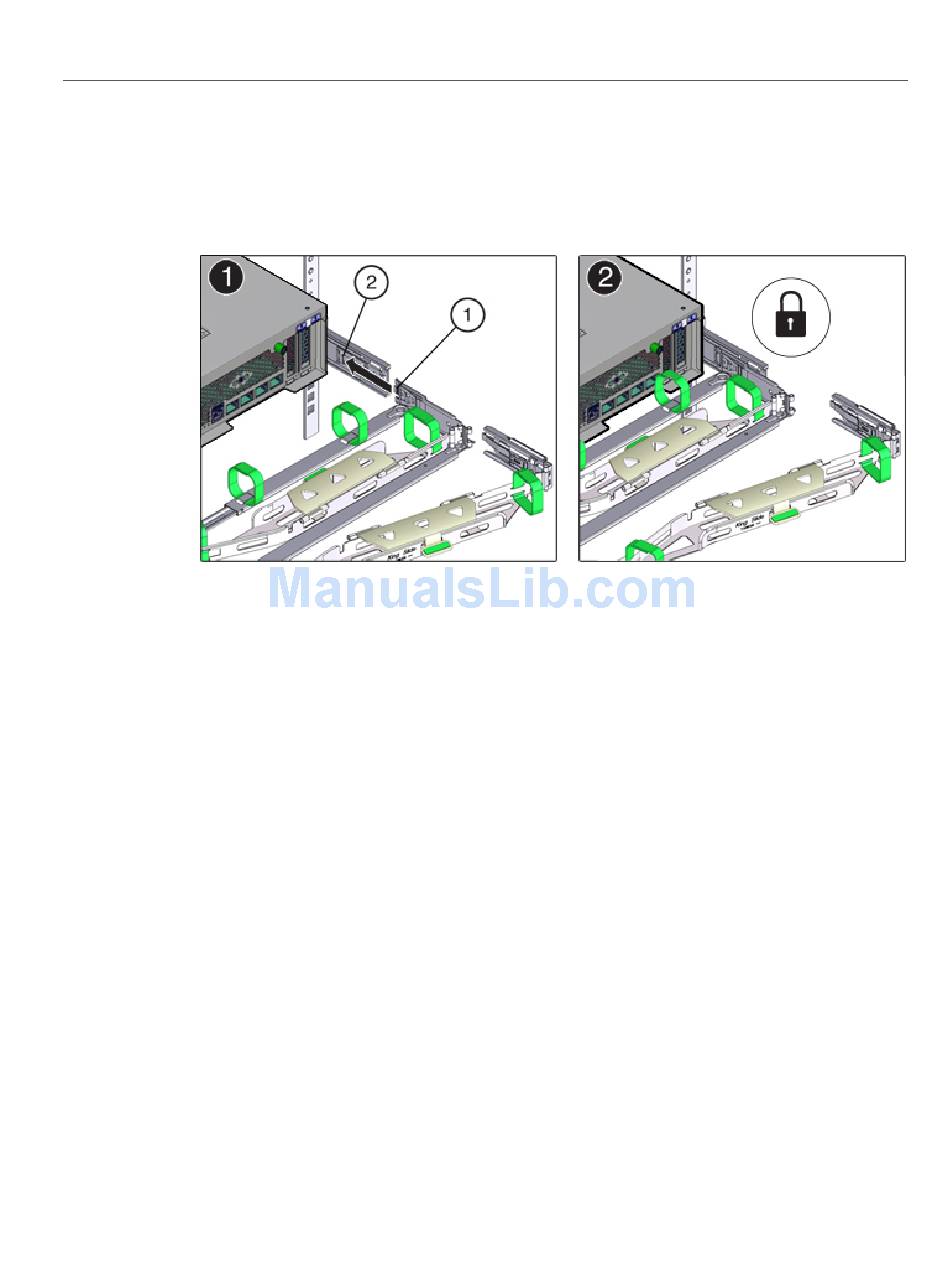

The connector B tab (1) goes into the slide-rail front slot (2). Gently tug on the right side of the
front slide bar to verify that connector B is properly seated.
9.
To install the CMA's connector C into the right slide-rail, perform the following
steps:
a.
Align connector C with the slide-rail so that the locking spring (1) is
positioned inside (server side) of the right slide-rail (frame 1).
b.
Insert connector C into the right side-rail until it locks into place with an
audible click (frames 2 and 3).
120
Oracle ZFS Storage Appliance Installation Guide • December 2016
