Disconnecting an RJ-45 Cable

No. 2 Phillips screwdriver
■
ESD mat and grounding strap
■
Pencil, stylus, or other pointed device, for pushing front panel buttons
■
Optional mechanical lift
■
You also need a system console device, such as one of the following:
Workstation
■
ASCII terminal
■
Terminal server
■
Patch panel connected to a terminal server
■
Disconnecting an RJ-45 Cable
Use the following procedure to properly disconnect an RJ-45 cable.
1. Using your index finger, press down fully on the RJ-45 release tab. Be sure the
tab is fully disengaged from the port.
2. Using your thumb and middle finger, apply a slight downward pressure while

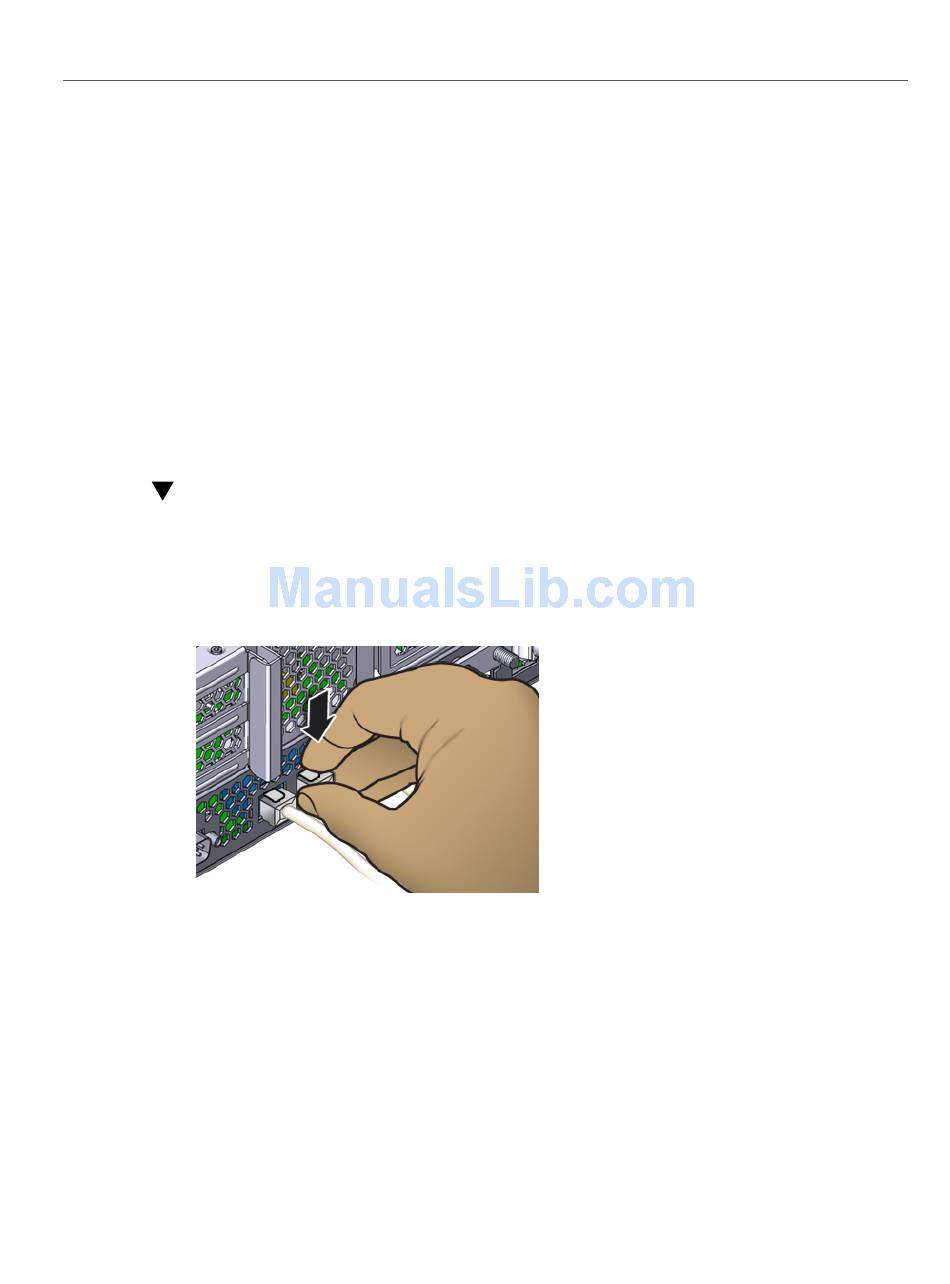

pulling the plug out of the port. Do not pull the plug upward or pinch the release
tab with your fingers below the plug, as shown below.
14 Oracle ZFS Storage Appliance Installation Guide • December 2016
