c.

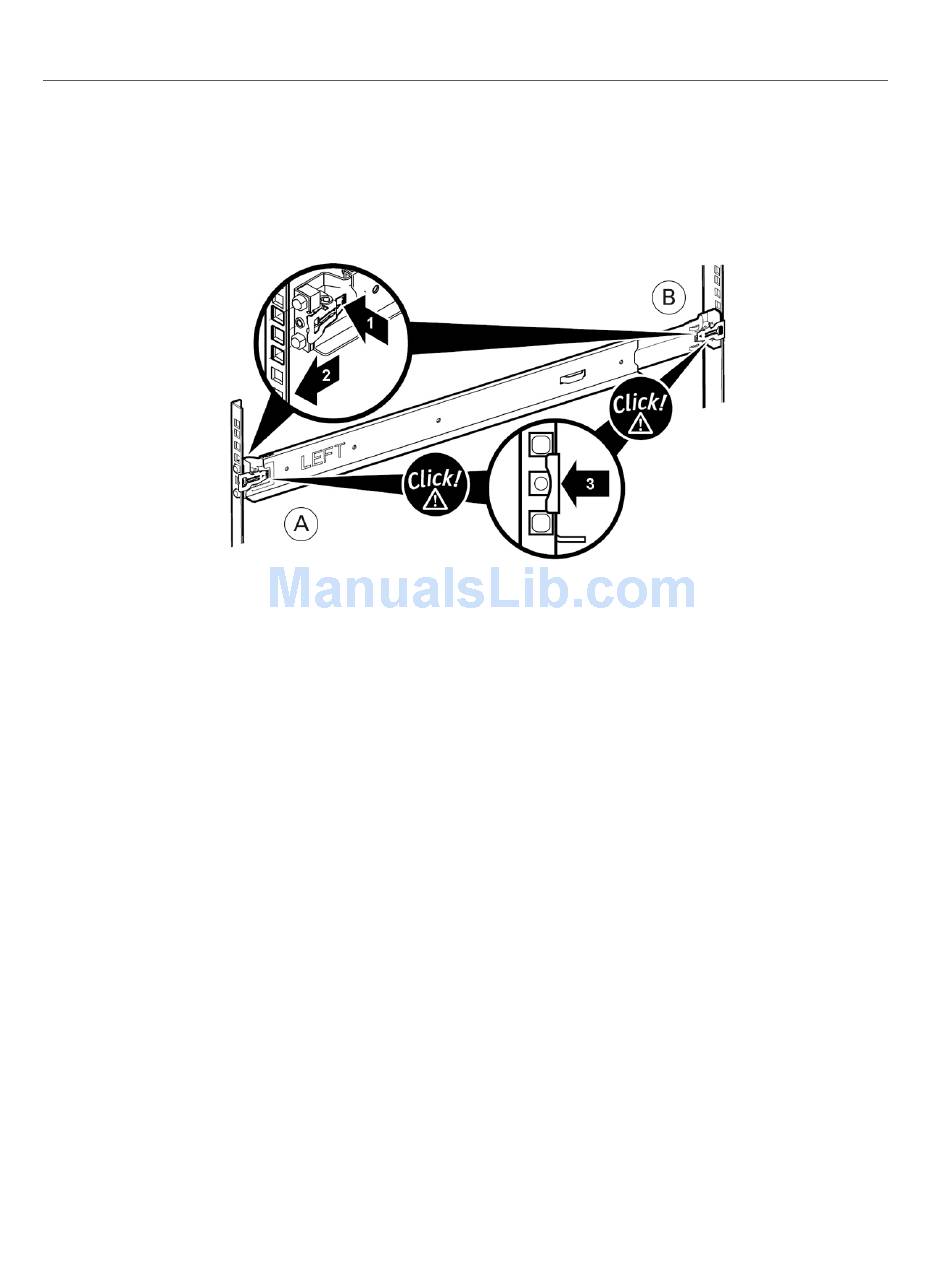

Press and hold open the clamp lever on each rail end [1], and insert both rail
ends into the appropriate rack holes [2].
Close the rail clamps over the rails by releasing the clamp lever [3].
d.
You will hear an audible click as the clamps lock in place over the rack rails.
e.
Repeat steps a through d for the second rail.
Installing a DE3-24P Disk Shelf
Installing Disk Shelves
75
