Overview of ZS3-4 Controller
Figure Legend
1 Power supply unit 0 status LEDs
OK: green Power Supply Fail: amber
AC OK: green
4 Power supply unit 1 AC inlet
7 Cluster card slot
10 PCIe slots 5-9
13 DB-15 video connector

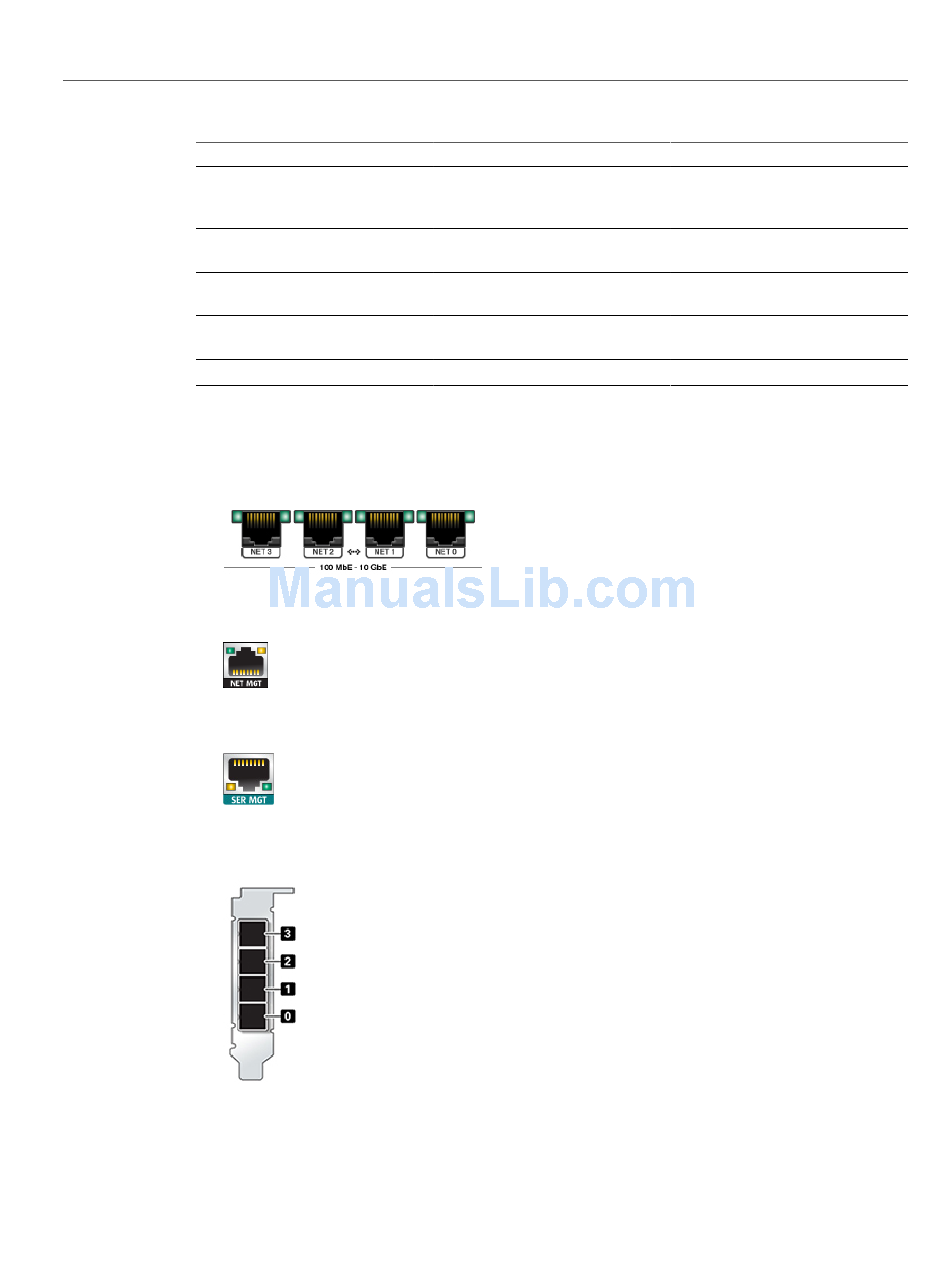

Ethernet Ports - The ZS3-4 has four RJ-45 Gigabit Ethernet connectors (NET 0, NET 1,
■
NET 2, NET 3) located on the motherboard that operate at 10/100/1000 Mbit/sec. These
network interfaces must be configured before use.
Network Management Port - The network management connector (NET MGT) is an RJ-
■
45 10/100 BASE-T Ethernet port and provides a LAN interface to the SP console.
Serial Management Port - The serial management connector (SER MGT) is an RJ-45
■
connector and provides a terminal connection to the SP console.
HBA Ports - The 4x4 SAS-2 HBA, installed in the ZS3-4, provides connectivity to external
■
DE2 and Sun Disk Shelves. The HBA ports are numbered 3-0, top to bottom:
54 Oracle ZFS Storage Appliance Installation Guide • December 2016
2 Power supply unit 0 AC inlet
5 System status LEDs Power: green
Attention: amber Locate: white
8 Network (NET) 10/100/1000 ports:
NET 0-NET 3
11 Network management (NET
MGT) 10/100 BASE-T Ethernet port
3 Power supply unit 1 status LEDs
OK: green Power Supply Fail: amber
AC OK: green
6 PCIe slots 0-4
9 USB 2.0 ports
12 Serial management (SER MGT)
port
