PROline Prosonic Flow 93 FOUNDATION Fieldbus
Endress+Hauser
6.1

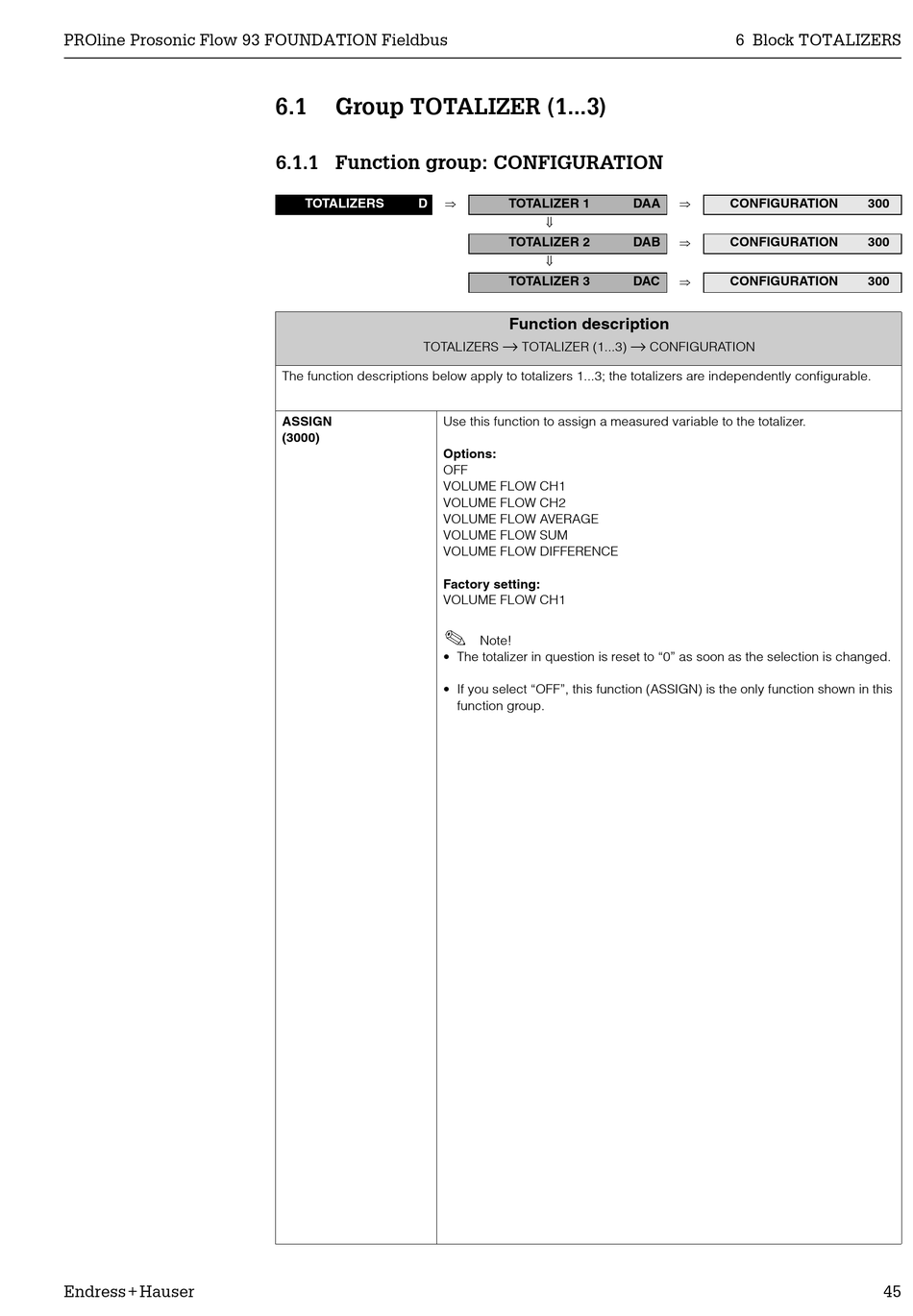

Group TOTALIZER (1...3)

6.1.1 Function group: CONFIGURATION

Þ
TOTALIZERS D
TOTALIZERS
The function descriptions below apply to totalizers 1...3; the totalizers are independently configurable.
ASSIGN Use this function to assign a measured variable to the totalizer.
(3000)
Options:
OFF
VOLUME FLOW CH1
VOLUME FLOW CH2
VOLUME FLOW AVERAGE
VOLUME FLOW SUM
VOLUME FLOW DIFFERENCE
Factory setting:
VOLUME FLOW CH1


• The totalizer in question is reset to "0" as soon as the selection is changed.
• If you select "OFF", this function (ASSIGN) is the only function shown in this
TOTALIZER 1
ß
TOTALIZER 2
ß
TOTALIZER 3
Function description
→
TOTALIZER (1...3)
Note!
function group.
6 Block TOTALIZERS
Þ
DAA CONFIGURATION
Þ
DAB CONFIGURATION
Þ
DAC CONFIGURATION
→
CONFIGURATION
300
300
300
45
