4 Analog Input function block

160
4 Analog Input function block
In the Analog Input function block (AI function block), the process variables from
the Transducer Blocks "TRANSDUCER_CH1" (flow channel 1, base index 1200),
"TRANSDUCER_ CH2" (flow channel 2, base index 1300) and "TRANSDUCER_ TOT"
(totalizer, base index 1550) are prepared for the subsequent automation functions, (e.g.
scaling, limit value processing). The automation function is defined by the connections
of the outputs.
OUT = Output value and output status of the Analog Input function block
4.1

Signal processing

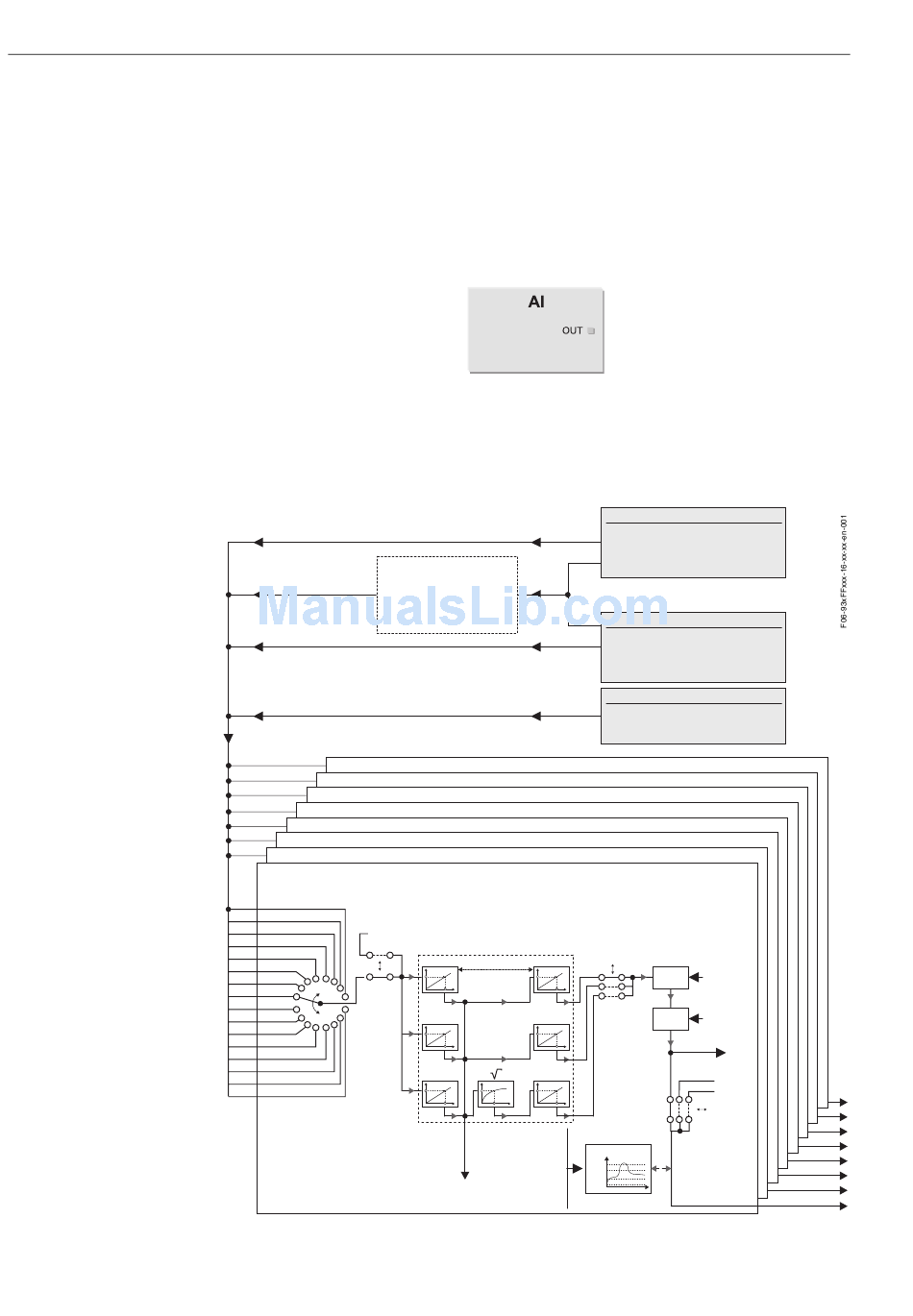

The figure shows the internal structure of the Analog Input function blocks available:
Volume flow average
Sum
Difference Volume flow
Sound Velocity average
Flow Velocity average
Analog Input 8
Analog Input 7
Analog Input 6
Analog Input 5
Analog Input 4
Analog Input 3
Analog Input 2
Analog Input 1
CHANNEL
A CH 2
B CH 21
SIMULATE
C CH 23
Value, Status
D CH 30
E CH 20
F CH 22
G CH 24
Direct
H CH 31
I CH 7
J CH 8
K CH 9
Indirect
L CH 25
M CH 26
N CH 27
O CH 28
Indirect
P CH 29
square root
Fig. 3: Signal processing and structure of the Analog Input function blocks
PROline Prosonic Flow 93 FOUNDATION Fieldbus
(L)
Volume flow
(M)
(N)
(O)
(P)
XD_SCALE OUT_SCALE
XD_SCALE = OUT_SCALE
XD_SCALE OUT_SCALE
XD_SCALE OUT_SCALE
ALARM_HYS
HI_HI_ALM
HI_ALM
LO_LO_ALM
FIELD_VAL LO_ALM
F06-53xFFxxxx-16-xx-xx-en-001
TRANSDUCER_CH1 (Basic index 1200)
Volume flow Channel 1
Sound velocity Channel 1
Flow velocity Channel 1
Signal strength Channel 1
TRANSDUCER_CH2 (Basic Index 1300)
Volume flow Channel 2
Sound velocity Channel 2
Flow velocity Channel 2
Signal strength Channel 2
TRANSDUCER_TOT (Basic index 1550)
Totalizer 1
Totalizer 2
Totalizer 3
L_TYPE
Cutoff LOW_CUT
Filter PV_FTIME
PV
O/S
AUTO MAN
MODE
Alarm detection
HI_HI
HI
LO
LO_LO
OUT
Endress+Hauser
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)
(J)
(K)
