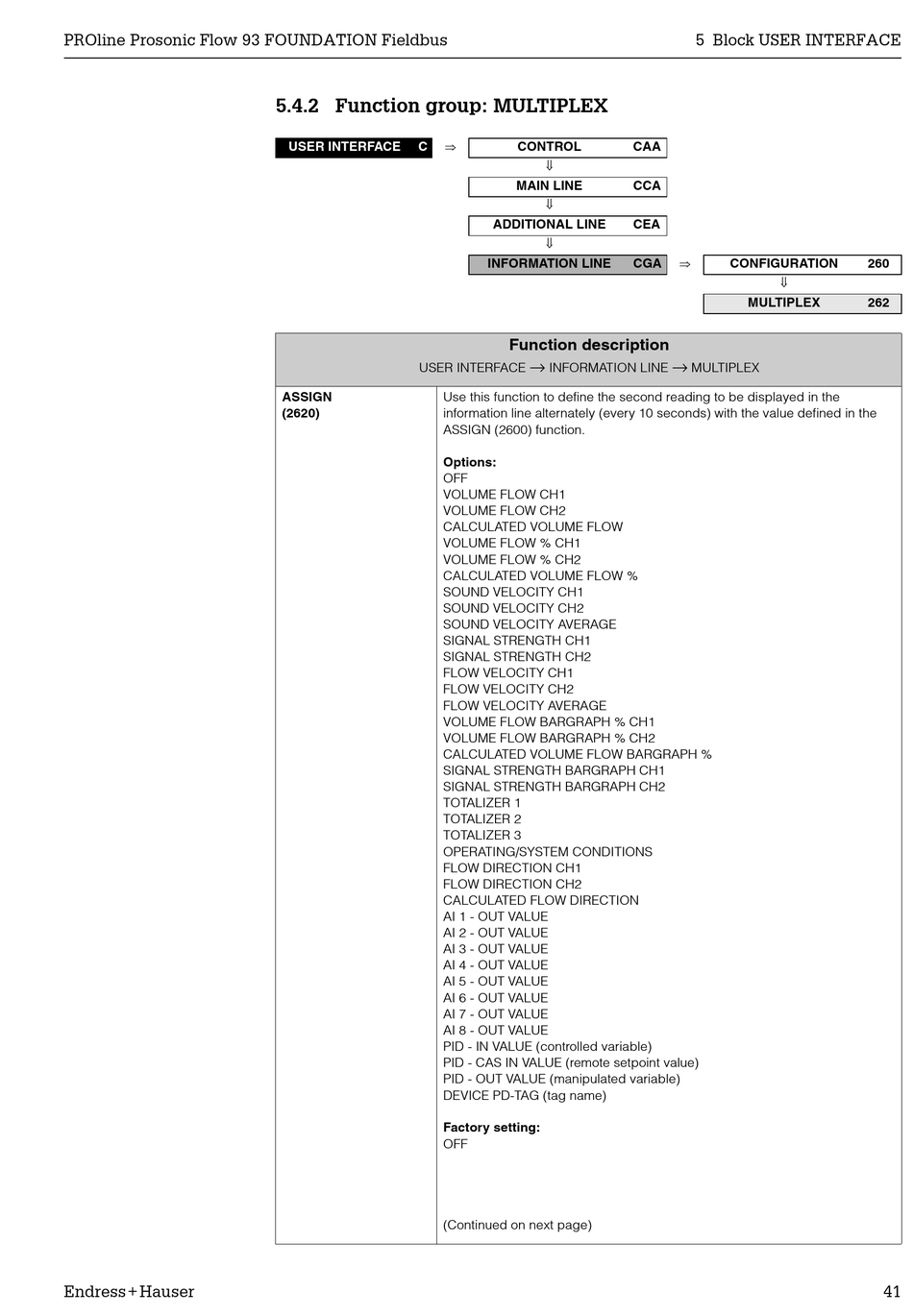

5.4.2 Function group: MULTIPLEX

Þ
USER INTERFACE C
USER INTERFACE
ASSIGN Use this function to define the second reading to be displayed in the
(2620) information line alternately (every 10 seconds) with the value defined in the
ASSIGN (2600) function.
Options:
OFF
VOLUME FLOW CH1
VOLUME FLOW CH2
CALCULATED VOLUME FLOW
VOLUME FLOW % CH1
VOLUME FLOW % CH2
CALCULATED VOLUME FLOW %
SOUND VELOCITY CH1
SOUND VELOCITY CH2
SOUND VELOCITY AVERAGE
SIGNAL STRENGTH CH1
SIGNAL STRENGTH CH2
FLOW VELOCITY CH1
FLOW VELOCITY CH2
FLOW VELOCITY AVERAGE
VOLUME FLOW BARGRAPH % CH1
VOLUME FLOW BARGRAPH % CH2
CALCULATED VOLUME FLOW BARGRAPH %
SIGNAL STRENGTH BARGRAPH CH1
SIGNAL STRENGTH BARGRAPH CH2
TOTALIZER 1
TOTALIZER 2
TOTALIZER 3
OPERATING/SYSTEM CONDITIONS
FLOW DIRECTION CH1
FLOW DIRECTION CH2
CALCULATED FLOW DIRECTION
AI 1 - OUT VALUE
AI 2 - OUT VALUE
AI 3 - OUT VALUE
AI 4 - OUT VALUE
AI 5 - OUT VALUE
AI 6 - OUT VALUE
AI 7 - OUT VALUE
AI 8 - OUT VALUE
PID - IN VALUE (controlled variable)
PID - CAS IN VALUE (remote setpoint value)
PID - OUT VALUE (manipulated variable)
DEVICE PD-TAG (tag name)
Factory setting:
OFF
(Continued on next page)
CONTROL CAA
ß
MAIN LINE CCA
ß
ADDITIONAL LINE CEA
ß
INFORMATION LINE CGA
Function description
→
INFORMATION LINE
5 Block USER INTERFACE
Þ
CONFIGURATION
ß
MULTIPLEX
→
MULTIPLEX
260
262
41
