4 Block QUICK SETUP


22

4.0.2 Commissioning Quick Setup

ENDRESS+HAUSER
+ +
E
- +
E
ESC
HOME-POSITION
➀
Selection
Volume flow
System units
Unit
Volume Flow
Unit
Totalizer
➁
Configure another unit?
Autom. Configuration of the display?
Inquiry: another
Quick Setup?
Note!
• The display returns to the QUICK SETUP COMMISSIONING (1002) cell if you press
the ESC key combination during parameter interrogation.
• See numbers in the illustration of the Quick Setup sensor menu:
➀
Only the units not yet configured in the current Quick Setup are offered for
selection in each cycle. The unit for volume is derived from the volume flow unit.
➁
The "YES" option remains visible until all the units have been configured. "NO" is
the only option displayed when no further units are available.
• The system units selected via the Quick Setup are only valid for display on the local
display and for the parameters in the Transducer Blocks.
They have no effect on the process variables which are transmitted via the
FOUNDATION Fieldbus.
PROline Prosonic Flow 93 FOUNDATION Fieldbus
B
Quick Setup E
+
Viscosity
Temperature
0402 0422 0423
Unit Unit
Viscosity
Temperature
3001
YES
YES
Automatical configuration
of the display
Sensor
Carrying out the
Quick Setup
Sensor
1002
QS
Commission
2000
Language
Presetting
System Units
Length Velocity
0424 0425
Unit Unit
Length Velocity
NO
NO
NO

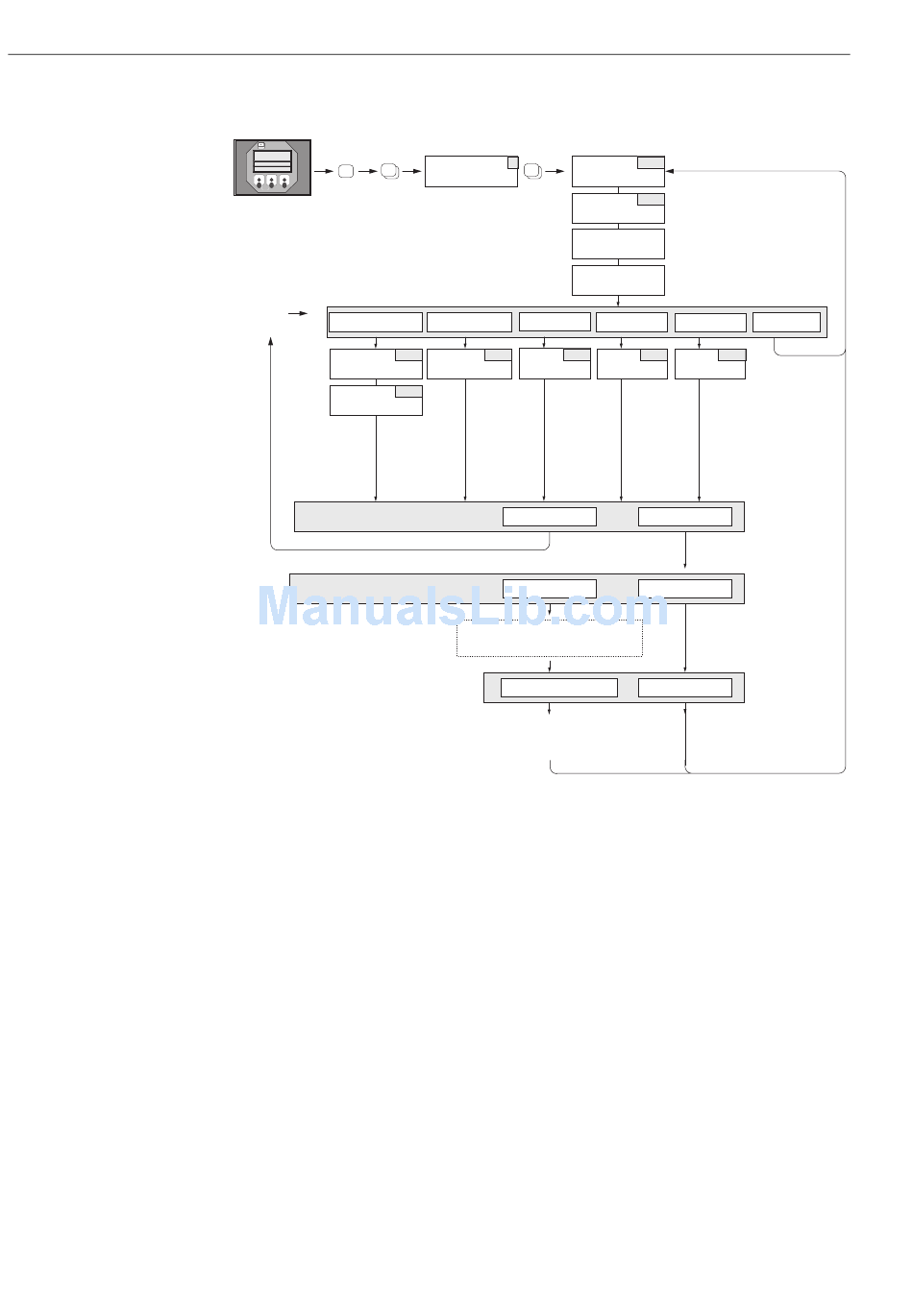

F06-93xFFxxx-19-xx-xx-en-000
