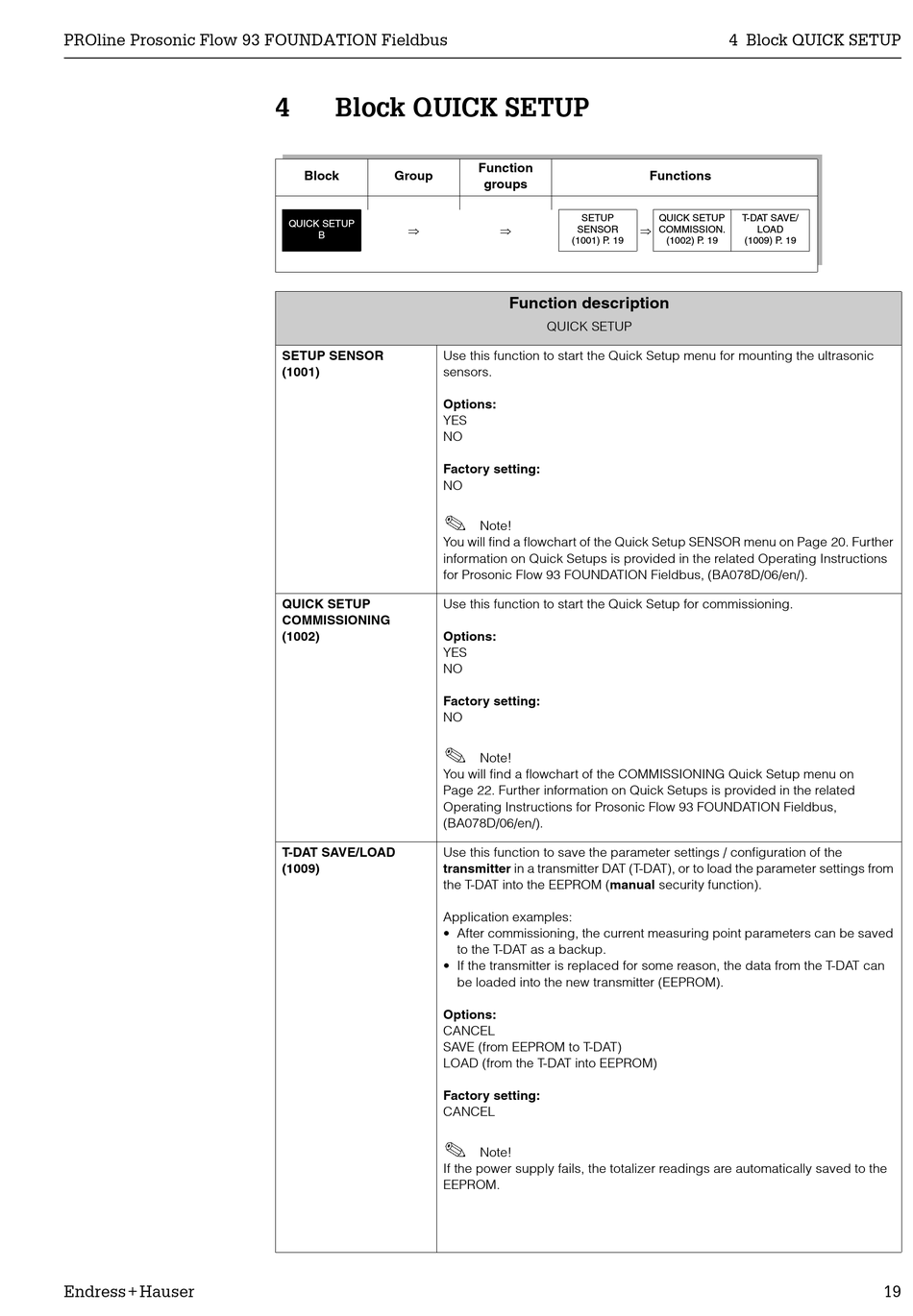

Block QUICK SETUP

Block Group
QUICK SETUP
Þ
(B)
SETUP SENSOR Use this function to start the Quick Setup menu for mounting the ultrasonic
(1001) sensors.
Options:
YES
NO
Factory setting:
NO


You will find a flowchart of the Quick Setup SENSOR menu on Page 20. Further
information on Quick Setups is provided in the related Operating Instructions
for Prosonic Flow 93 FOUNDATION Fieldbus, (BA078D/06/en/).
QUICK SETUP Use this function to start the Quick Setup for commissioning.
COMMISSIONING
(1002) Options:
YES
NO
Factory setting:
NO


You will find a flowchart of the COMMISSIONING Quick Setup menu on
Page 22. Further information on Quick Setups is provided in the related
Operating Instructions for Prosonic Flow 93 FOUNDATION Fieldbus,
(BA078D/06/en/).
T-DAT SAVE/LOAD Use this function to save the parameter settings / configuration of the
(1009) transmitter in a transmitter DAT (T-DAT), or to load the parameter settings from
the T-DAT into the EEPROM (manual security function).
Application examples:
• After commissioning, the current measuring point parameters can be saved
• If the transmitter is replaced for some reason, the data from the T-DAT can
Options:
CANCEL
SAVE (from EEPROM to T-DAT)
LOAD (from the T-DAT into EEPROM)
Factory setting:
CANCEL


If the power supply fails, the totalizer readings are automatically saved to the
EEPROM.
Function
groups
SETUP
Þ
SENSOR
(1001) P. 19
Function description
QUICK SETUP
Note!
Note!
to the T-DAT as a backup.
be loaded into the new transmitter (EEPROM).
Note!
4 Block QUICK SETUP
Functions
QUICK SETUP T-DAT SAVE/
Þ
COMMISSION. LOAD
(1002) P. 19 (1009) P. 19
