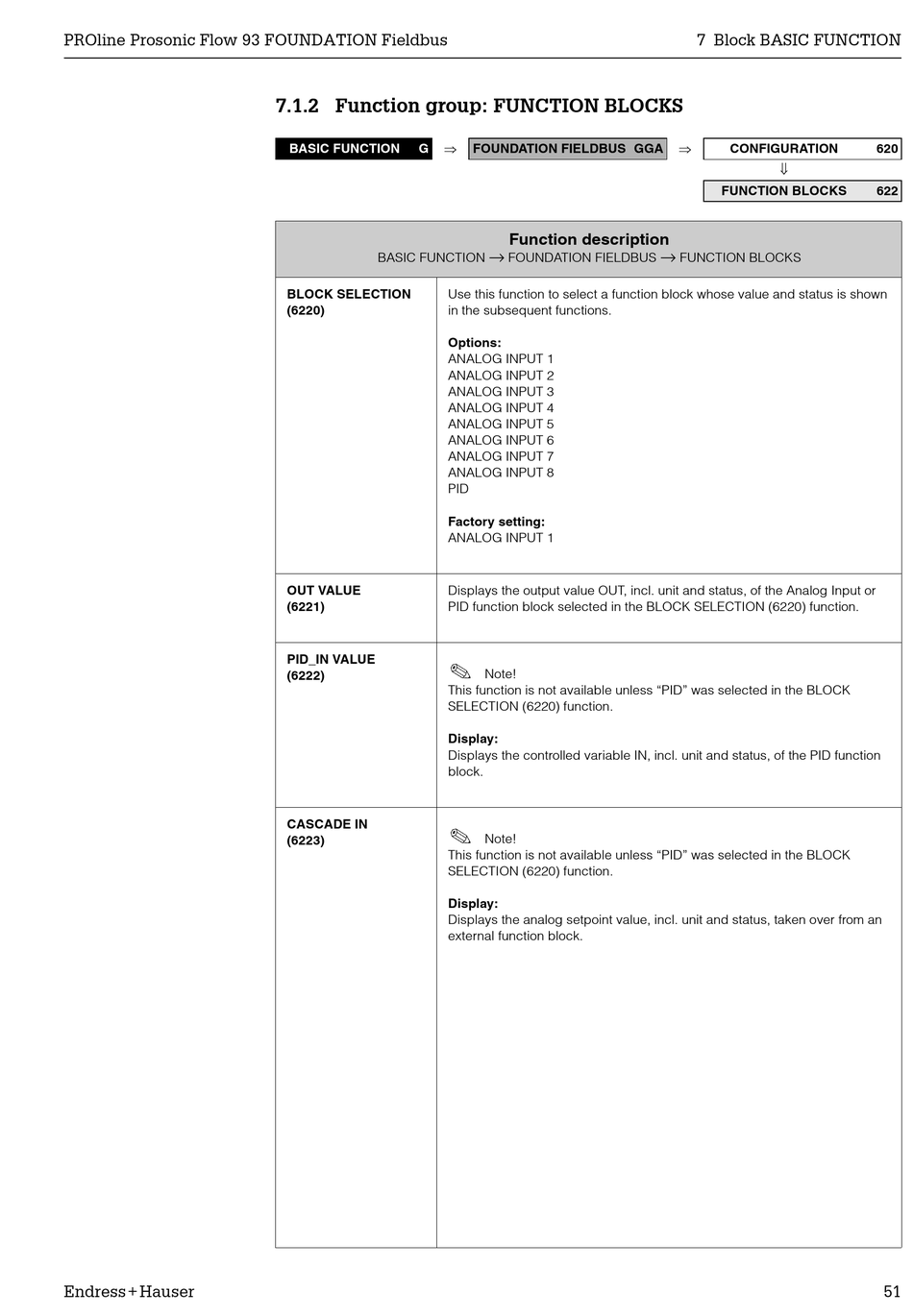

7.1.2 Function group: FUNCTION BLOCKS

Þ
BASIC FUNCTION G
BASIC FUNCTION
BLOCK SELECTION
(6220)
OUT VALUE
(6221)
PID_IN VALUE
(6222)
CASCADE IN
(6223)
FOUNDATION FIELDBUS GGA
Function description
→
FOUNDATION FIELDBUS
Use this function to select a function block whose value and status is shown
in the subsequent functions.
Options:
ANALOG INPUT 1
ANALOG INPUT 2
ANALOG INPUT 3
ANALOG INPUT 4
ANALOG INPUT 5
ANALOG INPUT 6
ANALOG INPUT 7
ANALOG INPUT 8
PID
Factory setting:
ANALOG INPUT 1
Displays the output value OUT, incl. unit and status, of the Analog Input or
PID function block selected in the BLOCK SELECTION (6220) function.


Note!
This function is not available unless "PID" was selected in the BLOCK
SELECTION (6220) function.
Display:
Displays the controlled variable IN, incl. unit and status, of the PID function
block.


Note!
This function is not available unless "PID" was selected in the BLOCK
SELECTION (6220) function.
Display:
Displays the analog setpoint value, incl. unit and status, taken over from an
external function block.
7 Block BASIC FUNCTION
Þ
CONFIGURATION
ß
FUNCTION BLOCKS
→
FUNCTION BLOCKS
620
622
