Endress+Hauser PROline Prosonic Flow 93 Function Manual page 144

3 Transducer Blocks (transmission blocks)
144
"TRANSDUCER_DISP" (E+H parameters) / base index 1500
Parameter Write access
with operating
mode
(MODE_BLK)
Info Line - AUTO - OOS
Display Mode
PROline Prosonic Flow 93 FOUNDATION Fieldbus
Description


Note!
Selection is not active unless one of the following was selected in the
"Info Line - Assign" parameter:
• VOLUME FLOW BARGRAPH % CH1
• VOLUME FLOW BARGRAPH % CH2
• CALC. VOLUME FLOW BARGRAPH %
• SIGNAL BARGRAPH CH1
• SIGNAL BARGRAPH CH2

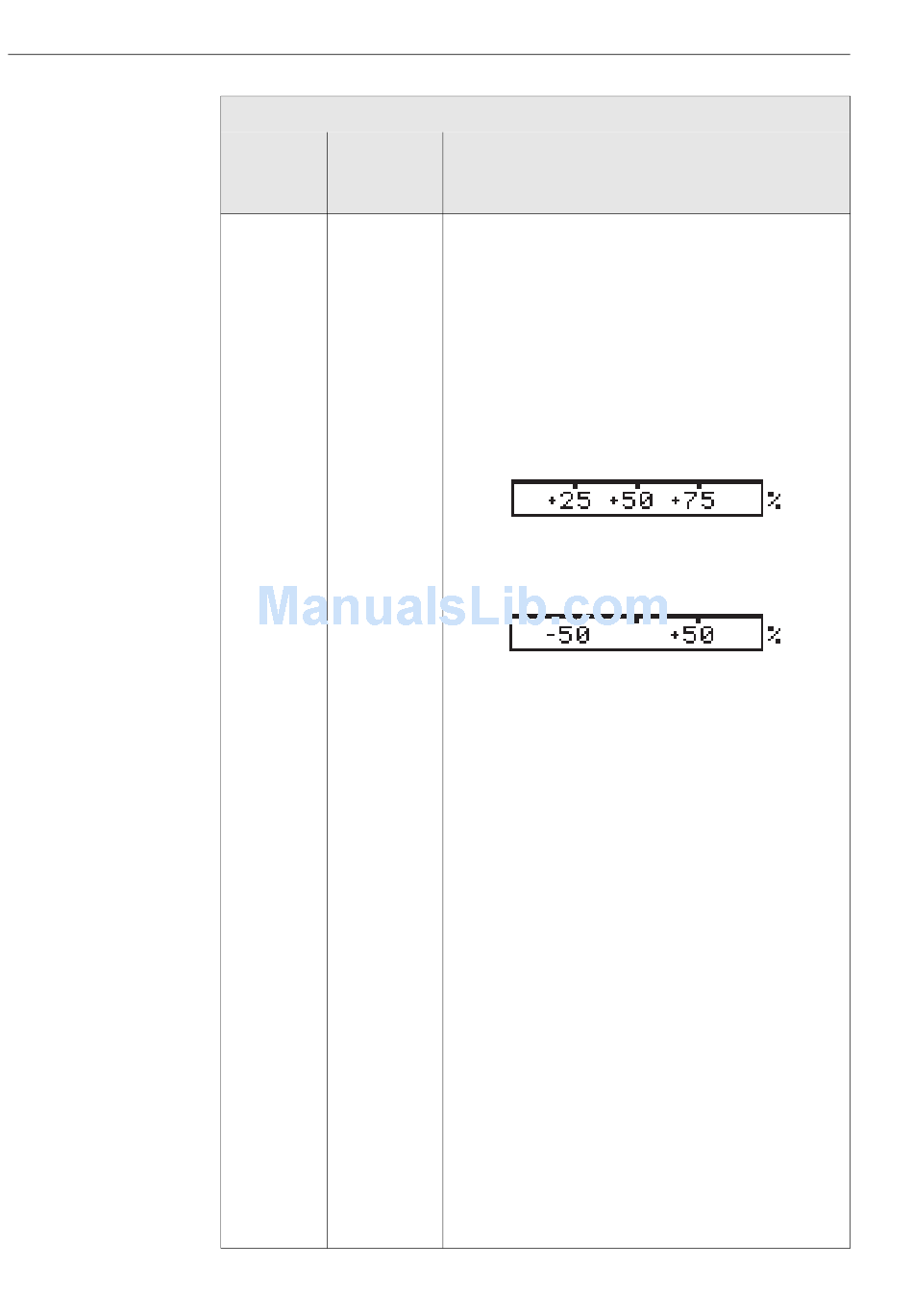

Use this parameter to define the format of the bar graph.
Options:
STANDARD
Simple bar graph with 25 / 50 / 75% gradations and integrated sign.
F-x3xxxxx-20-xx-xx-xx-000
SYMMETRY
Symmetrical bar graph for positive and negative directions of flow
with –50 / 0 / +50% gradations and integrated sign.
F-x3xxxxx-20-xx-xx-xx-001
Factory setting:
STANDARD
Endress+Hauser
