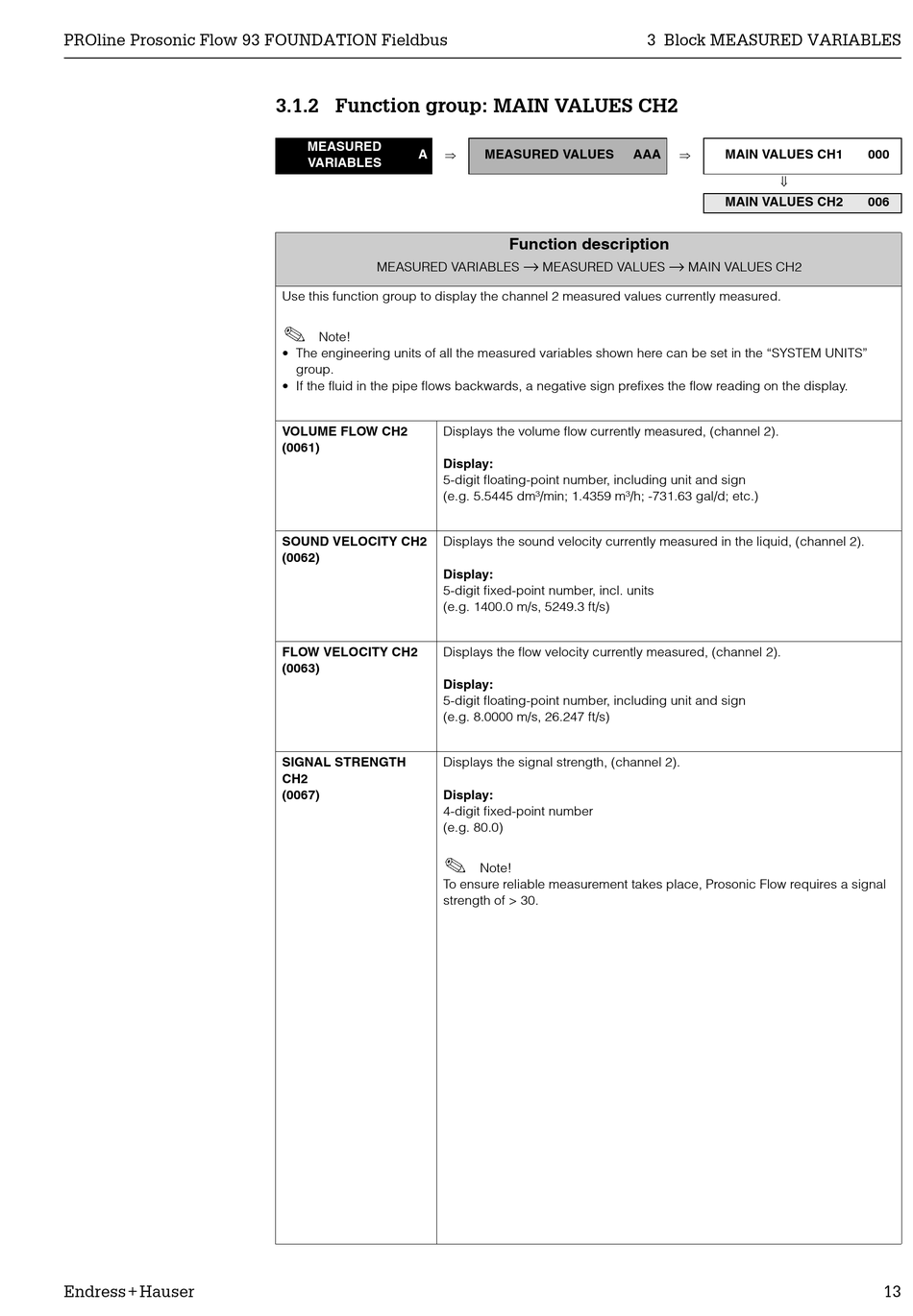

3.1.2 Function group: MAIN VALUES CH2

MEASURED
Þ
A
VARIABLES
MEASURED VARIABLES
Use this function group to display the channel 2 measured values currently measured.


Note!
• The engineering units of all the measured variables shown here can be set in the "SYSTEM UNITS"
group.
• If the fluid in the pipe flows backwards, a negative sign prefixes the flow reading on the display.
VOLUME FLOW CH2 Displays the volume flow currently measured, (channel 2).
(0061)
Display:
5-digit floating-point number, including unit and sign
(e.g. 5.5445 dm³/min; 1.4359 m³/h; -731.63 gal/d; etc.)
SOUND VELOCITY CH2 Displays the sound velocity currently measured in the liquid, (channel 2).
(0062)
Display:
5-digit fixed-point number, incl. units
(e.g. 1400.0 m/s, 5249.3 ft/s)
FLOW VELOCITY CH2 Displays the flow velocity currently measured, (channel 2).
(0063)
Display:
5-digit floating-point number, including unit and sign
(e.g. 8.0000 m/s, 26.247 ft/s)
SIGNAL STRENGTH Displays the signal strength, (channel 2).
CH2
(0067) Display:
4-digit fixed-point number
(e.g. 80.0)


To ensure reliable measurement takes place, Prosonic Flow requires a signal
strength of > 30.
3 Block MEASURED VARIABLES
