3 Block MEASURED VARIABLES
14

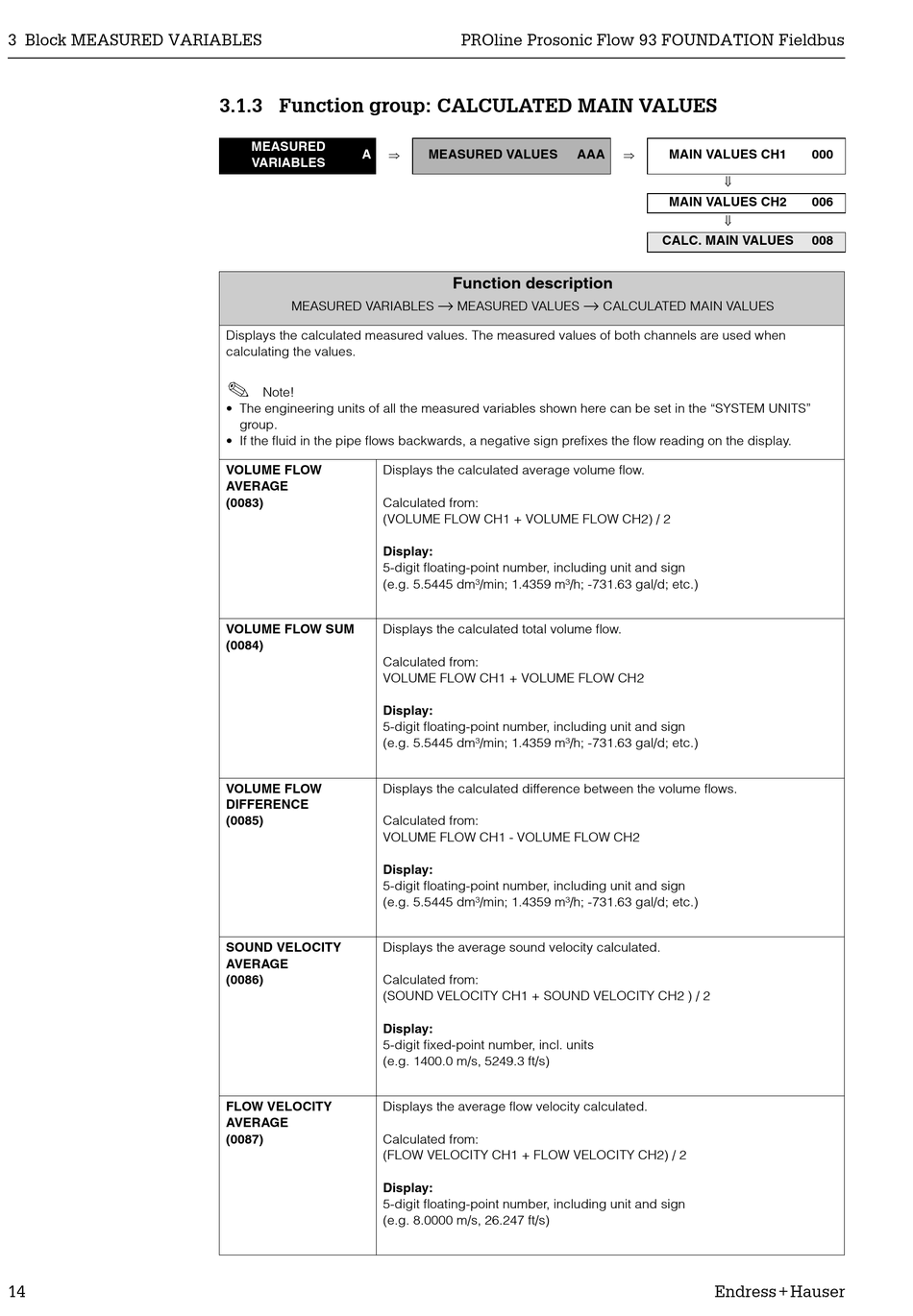

3.1.3 Function group: CALCULATED MAIN VALUES

MEASURED
Þ
A
VARIABLES
MEASURED VARIABLES
Displays the calculated measured values. The measured values of both channels are used when
calculating the values.


Note!
• The engineering units of all the measured variables shown here can be set in the "SYSTEM UNITS"
group.
• If the fluid in the pipe flows backwards, a negative sign prefixes the flow reading on the display.
VOLUME FLOW Displays the calculated average volume flow.
AVERAGE
(0083) Calculated from:
(VOLUME FLOW CH1 + VOLUME FLOW CH2) / 2
Display:
5-digit floating-point number, including unit and sign
(e.g. 5.5445 dm³/min; 1.4359 m³/h; -731.63 gal/d; etc.)
VOLUME FLOW SUM Displays the calculated total volume flow.
(0084)
Calculated from:
VOLUME FLOW CH1 + VOLUME FLOW CH2
Display:
5-digit floating-point number, including unit and sign
(e.g. 5.5445 dm³/min; 1.4359 m³/h; -731.63 gal/d; etc.)
VOLUME FLOW Displays the calculated difference between the volume flows.
DIFFERENCE
(0085) Calculated from:
VOLUME FLOW CH1 - VOLUME FLOW CH2
Display:
5-digit floating-point number, including unit and sign
(e.g. 5.5445 dm³/min; 1.4359 m³/h; -731.63 gal/d; etc.)
SOUND VELOCITY Displays the average sound velocity calculated.
AVERAGE
(0086) Calculated from:
(SOUND VELOCITY CH1 + SOUND VELOCITY CH2 ) / 2
Display:
5-digit fixed-point number, incl. units
(e.g. 1400.0 m/s, 5249.3 ft/s)
FLOW VELOCITY Displays the average flow velocity calculated.
AVERAGE
(0087) Calculated from:
(FLOW VELOCITY CH1 + FLOW VELOCITY CH2) / 2
Display:
5-digit floating-point number, including unit and sign
(e.g. 8.0000 m/s, 26.247 ft/s)
PROline Prosonic Flow 93 FOUNDATION Fieldbus
MEASURED VALUES AAA
Function description
→ →
MEASURED VALUES
Þ
MAIN VALUES CH1
ß
MAIN VALUES CH2
ß
CALC. MAIN VALUES
CALCULATED MAIN VALUES
Endress+Hauser
000
006
008
