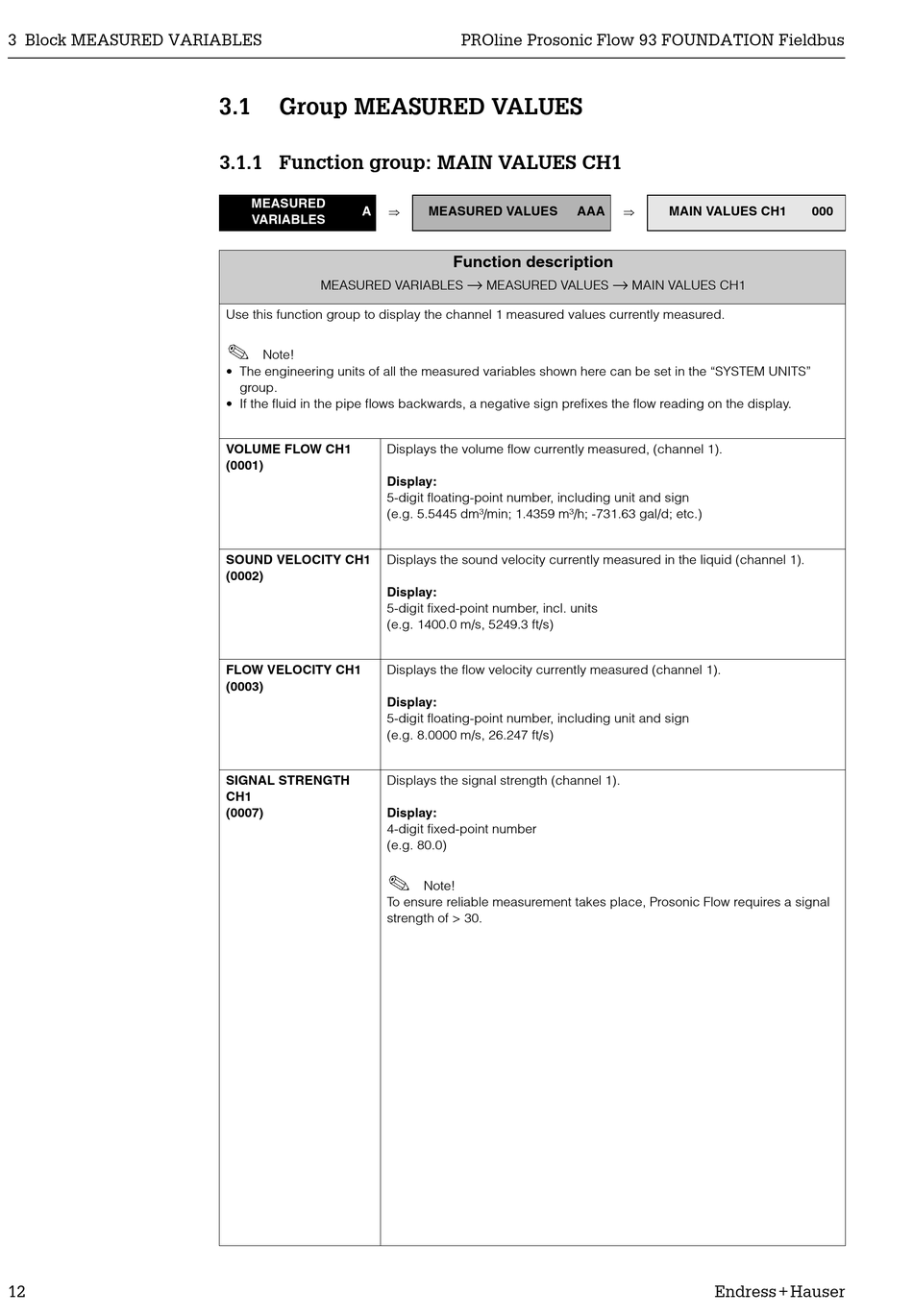

3 Block MEASURED VARIABLES
12
3.1

Group MEASURED VALUES

3.1.1 Function group: MAIN VALUES CH1

MEASURED
Þ
A
VARIABLES
MEASURED VARIABLES
Use this function group to display the channel 1 measured values currently measured.


Note!
• The engineering units of all the measured variables shown here can be set in the "SYSTEM UNITS"
group.
• If the fluid in the pipe flows backwards, a negative sign prefixes the flow reading on the display.
VOLUME FLOW CH1 Displays the volume flow currently measured, (channel 1).
(0001)
Display:
5-digit floating-point number, including unit and sign
(e.g. 5.5445 dm³/min; 1.4359 m³/h; -731.63 gal/d; etc.)
SOUND VELOCITY CH1 Displays the sound velocity currently measured in the liquid (channel 1).
(0002)
Display:
5-digit fixed-point number, incl. units
(e.g. 1400.0 m/s, 5249.3 ft/s)
FLOW VELOCITY CH1 Displays the flow velocity currently measured (channel 1).
(0003)
Display:
5-digit floating-point number, including unit and sign
(e.g. 8.0000 m/s, 26.247 ft/s)
SIGNAL STRENGTH Displays the signal strength (channel 1).
CH1
(0007) Display:
4-digit fixed-point number
(e.g. 80.0)


To ensure reliable measurement takes place, Prosonic Flow requires a signal
strength of > 30.
PROline Prosonic Flow 93 FOUNDATION Fieldbus
MEASURED VALUES AAA
Function description
→
MEASURED VALUES
Note!
Þ
MAIN VALUES CH1
→
MAIN VALUES CH1
