Endress+Hauser PROline Prosonic Flow 93 Function Manual page 136

3 Transducer Blocks (transmission blocks)
136
"TRANSDUCER_DISP" (E+H parameters) / base index 1500
Parameter Write access
with operating
mode
(MODE_BLK)

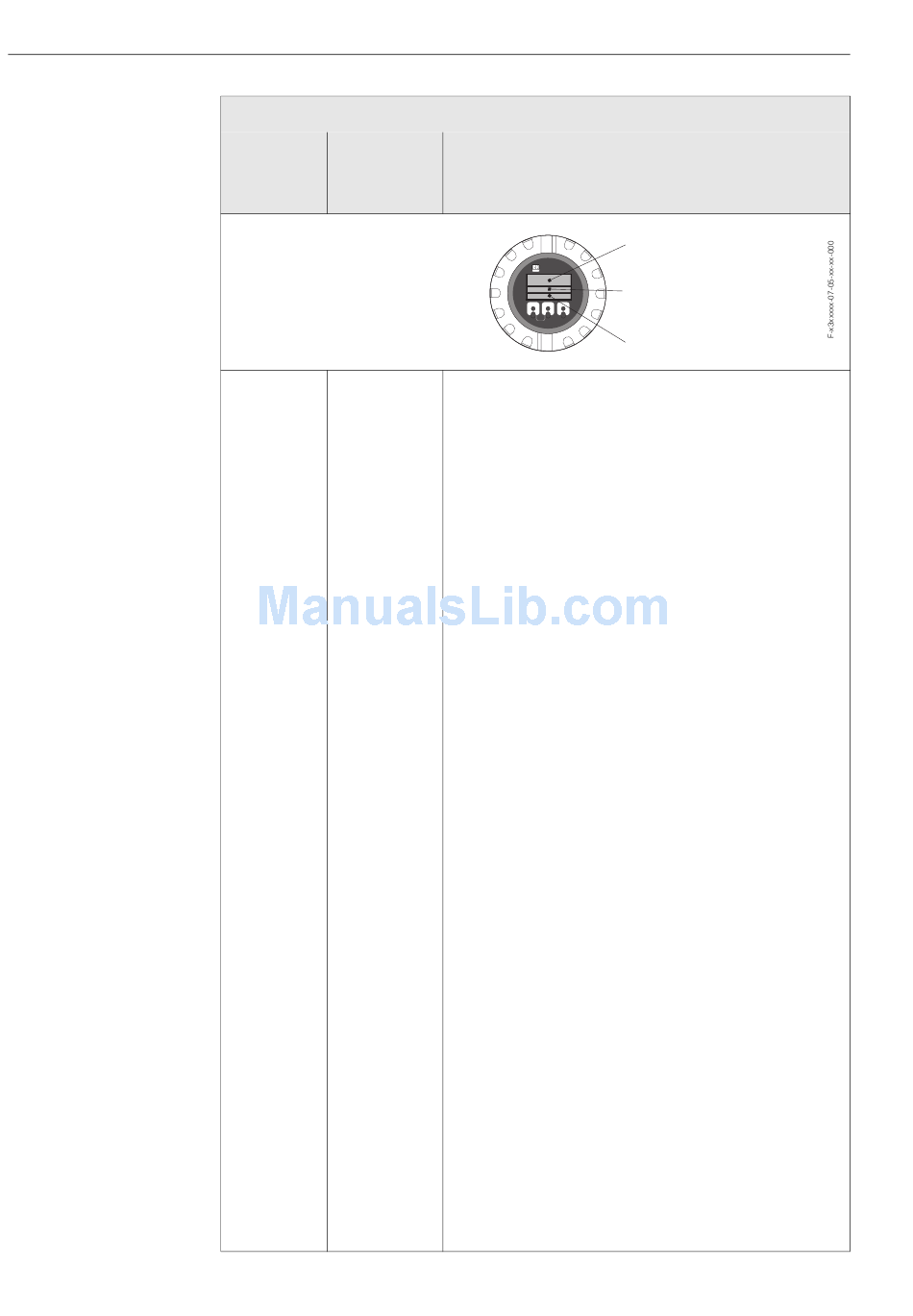

A = Main line,
B = Additional
line,
C = Information
line
Add. Line - AUTO - OOS
Assign
PROline Prosonic Flow 93 FOUNDATION Fieldbus
Description
ENDRESS+HAUSER
- +
E
ESC
Use this parameter to define the display value assigned to the
additional line (the middle line of the local display) during normal
measuring operation.
Options:
OFF
VOLUME FLOW CH1
VOLUME FLOW CH2
CALC. VOLUME FLOW
VOLUME FLOW % CH1
VOLUME FLOW % CH2
CALC. VOLUME FLOW %
SOUND VELOCITY CH1
SOUND VELOCITY CH2
SOUND VELOCITY AVG.
SIGNAL STRENGTH CH1
SIGNAL STRENGTH CH2
FLOW VELOCITY CH1
FLOW VELOCITY CH2
FLOW VELOCITY AVG.
VOLUME FLOW BARGRAPH % CH1
VOLUME FLOW BARGRAPH % CH2
CALC. VOLUME FLOW BARGRAPH %
SIGNAL BARGRAPH CH1
SIGNAL BARGRAPH CH2
TOTALIZER 1
TOTALIZER 2
TOTALIZER 3
FLOW DIRECTION CH1
FLOW DIRECTION CH2
CALC. FLOW DIRECTION
AI 1 - OUT VALUE
AI 2 - OUT VALUE
AI 3 - OUT VALUE
AI 4 - OUT VALUE
AI 5 - OUT VALUE
AI 6 - OUT VALUE
AI 7 - OUT VALUE
AI 8 - OUT VALUE
PID - IN VALUE (controlled variable)
PID - CAS IN VALUE (remote setpoint value)
PID - OUT VALUE (manipulated variable)
DEVICE PD-TAG (tag name)
Factory setting:
TOTALIZER 1
A
B
C
