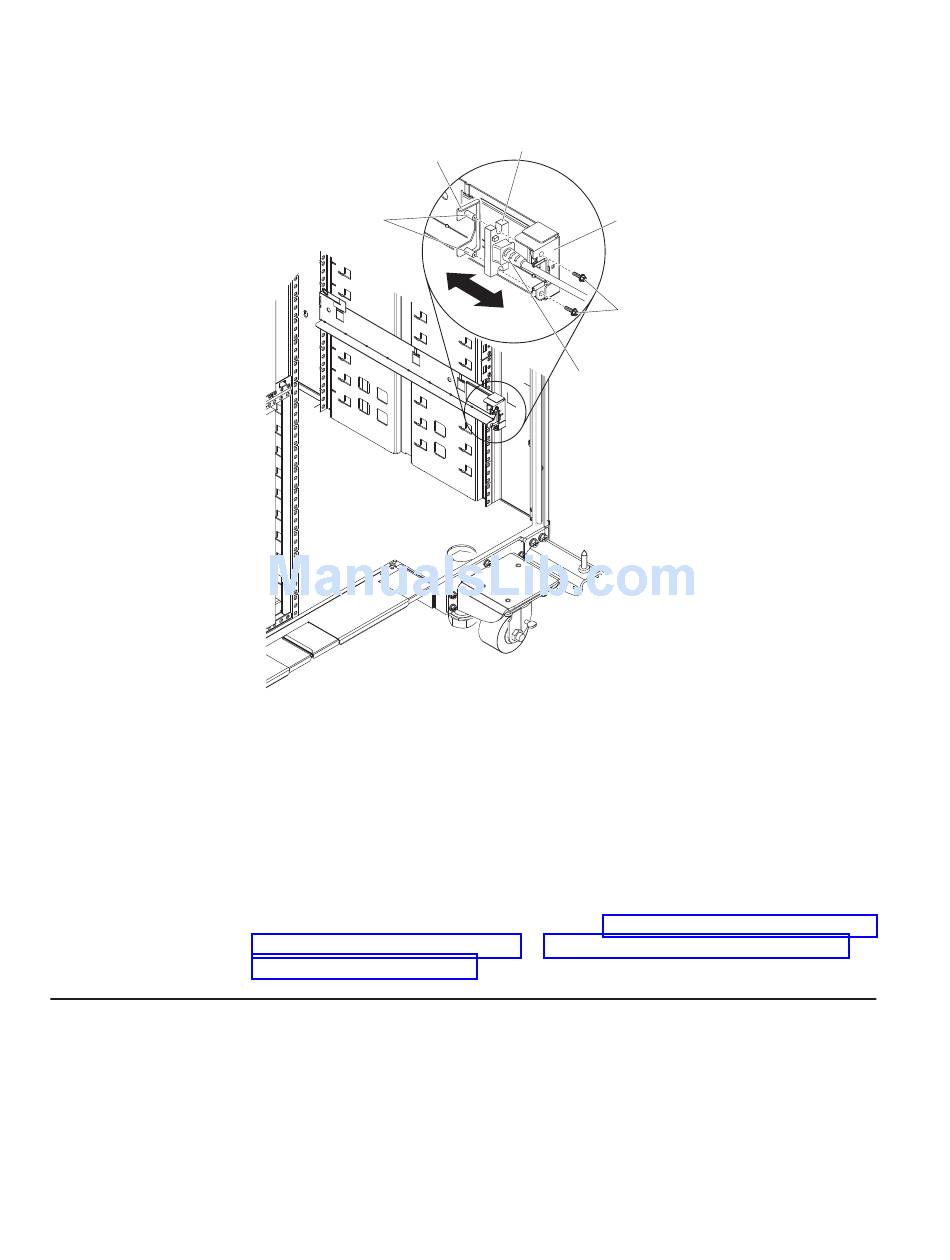

Installing the power cord

To install the power cord, complete the following steps:
1. Grasp the end of the power cord with the plug mount molded onto it in your
2. Align the mounting posts on the mounting plate with the slots in the plug mount
3. Position the entire assembly inside the left rail and align the mounting posts with
4. Install the power cord and mounting plate.
5. Connect the power cord that you are working on to a PDU.
6. Install the chassis in the iDataPlex rack (see "Installing the 2U chassis in a Type

Removing and replacing Tier 2 CRUs

You may install a Tier 2 CRU yourself or request IBM to install it, at no additional
charge, under the type of warranty service that is designated for your server.
Note: The illustrations in this document might differ slightly from your hardware.
146
System x iDataPlex dx360 M2: Problem Determination and Service Guide
Mounting
plate
Mounting
post
right hand. Notice the shape of the plug and how it matches the cutout in the
mounting plate.
and install the power cord onto the mounting plate.
the holes in the back of the mounting bracket on the rail.
7825 iDataPlex rack" on page 187 or "Installing a 3U chassis in a Type 7825
iDataPlex rack" on page 191).
Plug
mount
Power
cord mounting
bracket
M3
screws
Power
cord
