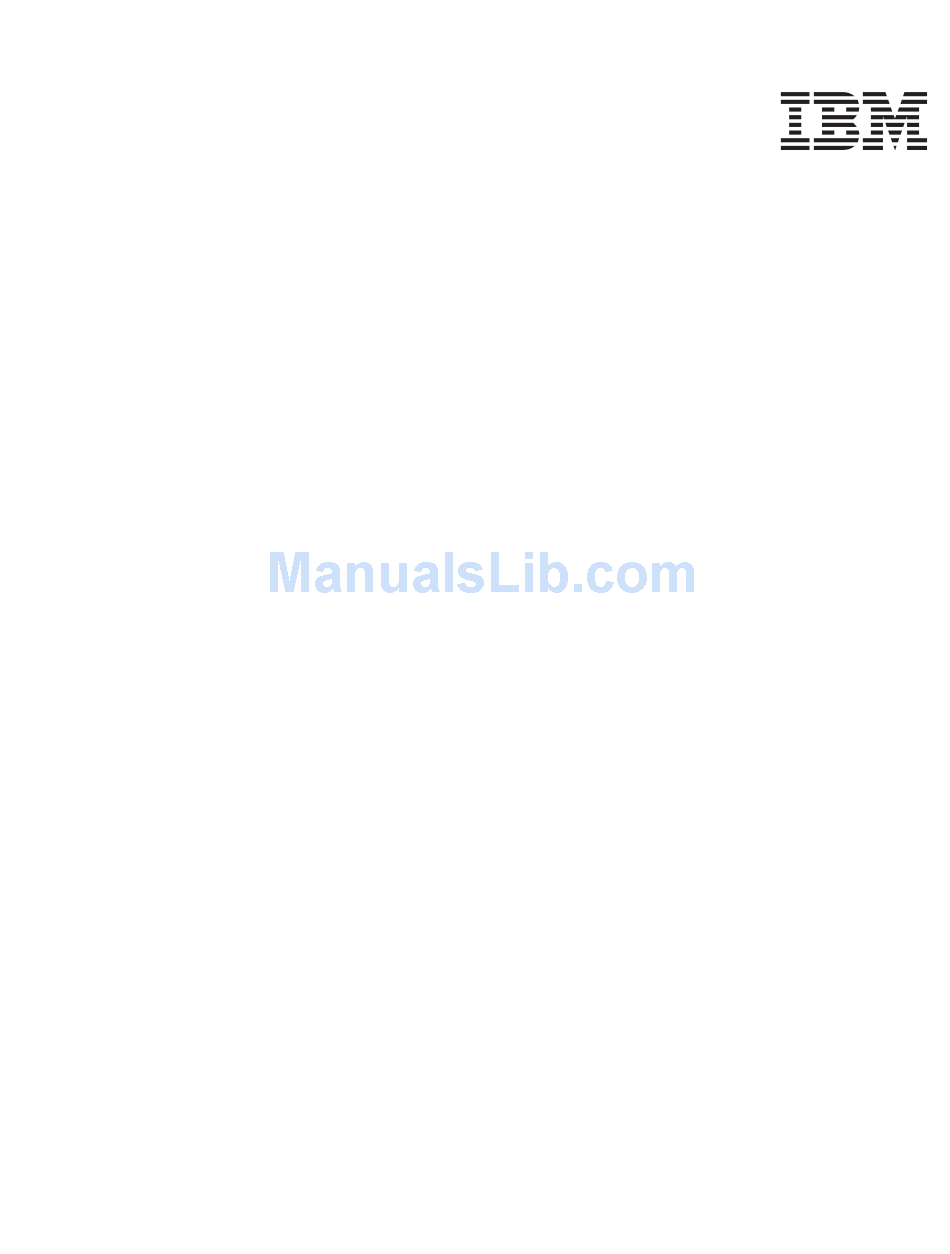

Page 1 Fibre Channel RAID Storage Server and Expandable Storage Unit, IBM 2102 Model F10 and Model D00 Service Guide SY27-7604-02...
Page 3 Fibre Channel RAID Storage Server and Expandable Storage Unit, IBM 2102 Model F10 and Model D00 Service Guide SY27-7604-02...
Page 4 U.S.A. You can also send your comments electronically to: When you send information to IBM, you grant IBM a nonexclusive right to use or distribute the information in any way it believes appropriate without incurring any obligation to you. © Copyright International Business Machines Corporation 1999. All rights reserved.
Page 5: Table Of Contents
..... . . xxiii The IBM Warranty for Machines ....xxiii Warranty Service .
Page 6 ......89 Controller Description ..... 89 IBM 2102 Model F10 and Model D00 Service Guide...
Page 7 Controller Speciﬁcations ....91 Controller Servicing Notes ....91 Troubleshooting Controller Problems .
Page 8 ..... . 159 General Notes ......159 IBM 2102 Model F10 and Model D00 Service Guide...
Page 9 Drive Failure Notes ..... . 160 Maintaining the Drives ..... . 160 Replace a Failed Drive .
Page 10 Appendix A. AIX Code Information ....253 2102-F10 Error Log Sense Information....253 Field Replaceable Unit (FRU) Codes .
Page 11 Unit Parts Catalog ..... . 281 2102 Model F10 Controller Module FRUs ....282 2102 Model D00 Drive Module FRUs .
Page 12 IBM 2102 Model F10 and Model D00 Service Guide...
Page 14 107. Device Drawer with 2 Drive Buses (Bridge Disable ON)..219 108. Attachment of the Modem and WTI Switch to a IBM 2102 F10 Fibre Channel Storage Server ....229...
Page 15 113. DriveDload Main Menu ....241 114. 2102 Model F10 Controller Module FRUs ... . . 282 115.
Page 16 IBM 2102 Model F10 and Model D00 Service Guide...
Page 17: Notices
References in this publication to IBM products, programs, or services do not imply that IBM intends to make these available in all countries in which IBM operates. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used.
Page 18: Environmental Notices And Statements
Environmental Notices and Statements Product Disposal This product contains a SEALED LEAD ACID BATTERY. When the battery assembly is replaced, the used battery assembly must be returned to IBM for proper disposal. Product Recycling This unit contains recyclable materials. These materials should be recycled where processing sites are available and according to local regulations.
Page 19: Industry Canada Compliance Statement
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modiﬁcations to this equipment. Unauthorized changes or modiﬁcations could void the user’s authority to operate the equipment.
Page 20: Japanese Voluntary Control Council For Interference (Vcci) Class A Statement
Corporation in the United States or other countries or both: Seascape StorWatch HP-UX and Hewlett-Packard are trademarks of Hewlett-Packard Company. Sun, SPARC, SunOS, and Solaris, are trademarks of Sun Microsystems, Inc. xviii IBM 2102 Model F10 and Model D00 Service Guide...
Page 21 Windows NT and Alpha Windows NT are trademarks of Microsoft Corporation. UNIX is a registered trademark in the United States and other countries licensed exclusively through X/Open Company Limited. Other company, product, or service names, may be trademarks or service marks of others.
Page 22 IBM 2102 Model F10 and Model D00 Service Guide...
Page 23: Ibm License Agreement For Machine Code
International Business Machines Corporation or one of its subsidiaries (“IBM”), or an IBM supplier, owns copyrights in Machine Code. IBM grants you a nonexclusive license to use Machine Code only in conjunction with a Machine. As the rightful possessor of a Machine, you may make a reasonable number of copies of Machine Code as necessary for backup, conﬁguration, and restoration of the Machine.
Page 24 IBM 2102 Model F10 and Model D00 Service Guide...
Page 25: Statements Of Limited Warranty
The warranties provided by IBM in this Statement of Limited Warranty apply only to Machines you originally purchase for your use, and not for resale, from IBM or your reseller. The term “Machine” means an IBM machine, its features, conversions, upgrades, elements, or accessories, or any combination of them.
Page 26: Warranty Service
If IBM or your reseller is unable to repair or replace the Machine, you may return it to your place of purchase and your money will be refunded. If you transfer a Machine to another user, warranty service is available to that user for the remainder of the warranty period.
Page 27: Limitation Of Liability
PERIOD. NO WARRANTIES APPLY AFTER THAT PERIOD. Limitation of Liability Circumstances may arise where, because of a default on IBM’s part or other liability you are entitled to recover damages from IBM. In each such instance, regardless of the basis on which you are entitled to claim damages from IBM (including...
Page 28 IBM 2102 Model F10 and Model D00 Service Guide...
Page 29: About This Book
Additional information that is related to the subsystem is available in the following publications: v Seascape Solution Rack, Installation and Service Guide, IBM 2101 Model 100 , SY27-7606 v Fibre Channel RAID Storage Server, Introduction and Planning Guide, IBM 2102 ,...
Page 30 IBM 2102 Model F10 and Model D00 Service Guide...
Page 32 IBM 2102 Model F10 and Model D00 Service Guide...
Page 33: Chapter 1. Maintenance Starting Points
Fibre Channel Storage Manager, Installation and User’s Guide for the AIX Operating System , SC26-7290 and Diagnostic Information for Multiple Bus Systems , SA38-0509 for more information (refer to MAP 0410 for returning the customer to normal operation). © Copyright IBM Corp. 1999...
Page 34: 2102 Fibre Channel Raid Storage Server Start Tables
If you are here for this ...Then perform this action reason... Running diagnostics from an Go to “AIX Error Codes (SRNs)” on page 15. AIX host resulted in a six digit Service Request Number/Error Code IBM 2102 Model F10 and Model D00 Service Guide...
Page 35 Table 1. 2102 Fibre Channel RAID Storage Server Start Table A (continued) If you are here for this ...Then perform this action reason... Controller: v A check light is active on a 1. If the subsystem is attached to a Windows NT, SUN, or HP-UX host system subsystem component running the Fibre Channel Storage Manager software or a Windows NT or v A problem occurred during...
Page 36 Go to “Drive Module Troubleshooting Chart” on page 198 and follow the problem identiﬁcation procedures given. If this does not ﬁx the problem, go to the next step. f. Call your next level of support. IBM 2102 Model F10 and Model D00 Service Guide...
Page 37 Call your next level of support. Rack: Go to Seascape Solution Rack, Installation and Service Guide, IBM 2101 Model 100 , SY27-7606 and follow the appropriate procedure for debugging rack problems. If you cannot ﬁx the problem following the procedures in Seascape Solution Rack, Installation and Service Guide, IBM 2101 Model 100 , SY27-7606, then call your next level of support.
Page 38: Start Table B
Go to “Replace a Failed Fan” on page 188 Power Supply Go to “Replace a Failed Power Supply” on page 183 Refer to Fibre Channel Storage Hub, Installation, Service, and User’s Guide, IBM Replace FRUs in the Fibre Channel Hub 2103 Model H07 , SC26-7289.
Page 39 Table 2. 2102 Fibre Channel RAID Storage Server Start Table B (continued) If you are here for this ...Then perform this action reason... Power On/Off Subsystem Note: Subsystem components must be powered up in the correct sequence to ensure proper operation. Power Up Sequence: Components 1.
Page 40 ﬁbre channel adapter to check for problems. For information on running diagnostics on the adapter refer to Diagnostic Information for Multiple Bus Systems , SA38-0509. IBM 2102 Model F10 and Model D00 Service Guide...
Page 41: Start Table C
Start Table C Table 3. 2102 Fibre Channel RAID Storage Server Start Table C If you are here for this ...Then perform this action reason... Use Fibre Channel Storage See Fibre Channel Storage Manager, Installation and User’s Guide for the AIX Operating System , SC26-7290.
Page 42 Guide, IBM 2103 Model H07 , SC26-7289 device drawer and drives Go to “Check the Overall Hardware Status” on page 156. controller module Go to “Using the Status LEDs” on page 75. IBM 2102 Model F10 and Model D00 Service Guide...
Page 43: Start Table D
GBIC to Initiators and Targets″ in Fibre Channel Storage Hub, Installation, Service, and User’s Guide, IBM 2103 Model H07 , SC26-7289. v For GBIC and cable debug procedures, see ″Troubleshooting″ in Fibre Channel Storage Hub, Installation, Service, and User’s Guide, IBM 2103 Model H07 , SC26-7289. Device Drawer v For SCSI connector locations on the ESM board, see “Environmental Services...
Page 44 If the subsystem is attached to a system running AIX, use Format service aid provided by AIX diagnostics. For details, refer to Fibre Channel Storage Manager, Installation and User’s Guide for the AIX Operating System , SC26-7290. IBM 2102 Model F10 and Model D00 Service Guide...
Page 45: Aix Error Codes (Srns)
Table 4. 2102 Fibre Channel RAID Storage Server Start Table D (continued) If you are here for this ...Then perform this action reason... Revive a dead LUN v If the subsystem is attached to a Windows NT, SUN, or HP-UX host system running the Fibre Channel Storage Manager software or a Windows NT or Windows 95 system running the StorWatch Fibre Channel RAID Specialist software, then refer to the Fibre Channel Storage Manager and StorWatch Fibre...
Page 46 Action: Follow the procedures in “Troubleshooting Controller Problems” on page 92 and replace FRUs as indicated. v Fibre Channel Adapter v Controller backpanel - see “Replacing a Failed Controller Backpanel” on page 98. IBM 2102 Model F10 and Model D00 Service Guide...
Page 47 Table 5. AIX Error Codes (continued) Description 444105 Cannot access physical disks. v SCSI cables v ESM board - see “Replace a Failed Action: Read the procedures in “Hints for Troubleshooting ESM FRU” on page 170. Interface Problems” on page 169 for debugging SCSI interface problems.
Page 48 Mode through the adapter and array controller for which the problem was reported, to conﬁrm the error. Exchange the v Controller backpanel - see “Replacing a FRUs for new FRUs. Failed Controller Backpanel” on page 98. IBM 2102 Model F10 and Model D00 Service Guide...
Page 49 Table 5. AIX Error Codes (continued) Description 555202 The list of possible failing FRUs depends Critical fan fault. Two or more fan assemblies have failed. on the enclosure identiﬁed in the Action: diagnostic failure information (See “Location Codes Displayed By v For Controller Module fan failures, read the procedure in Diagnostics”...
Page 50 Action: Exchange the FRU for a new FRU. 641330 Disk Drive - see “Replace a Failed Drive” Error Log analysis indicates predictive failure analysis. on page 160. Action: Exchange the FRU for a new FRU. IBM 2102 Model F10 and Model D00 Service Guide...
Page 51 Table 5. AIX Error Codes (continued) Description 641332 Disk Drive - see “Replace a Failed Drive” Error Log Analysis indicates that the physical disk does not on page 160. support dual-active conﬁguration. Action: Exchange the FRU for a new FRU. 641333 Disk Drive - see “Replace a Failed Drive”...
Page 52 Controller Card - see “Replacing a Failed Controller” on page 93 Action: Exchange the FRU for a new FRU. v Controller backpanel - see “Replacing a Failed Controller Backpanel” on page 98. IBM 2102 Model F10 and Model D00 Service Guide...
Page 53 Table 5. AIX Error Codes (continued) Description 658123 Error Log Analysis indicates a passive controller failure. v Controller Card - see “Replacing a Failed Controller” on page 93 Important: Diagnostics may take a long time (up to 40 minutes) if interface problems exist. v Controller backpanel - see “Replacing a Failed Controller Backpanel”...
Page 54 Failed Power Supply” on page 183. FRUs as instructed. Drive Drawer (EID E2 - E6): v Device Drawer Power Supply - see “Replace a Failed Power Supply” on page 183. IBM 2102 Model F10 and Model D00 Service Guide...
Page 55 Table 5. AIX Error Codes (continued) Description 666203 The list of possible failing FRUs depends Enclosure status reports a non-critical power supply failure. on the enclosure identiﬁed in the Action: diagnostic failure information (See “Location Codes Displayed By v For Controller Module power system failures, read the Diagnostics”...
Page 56 Incorrect sector size. on page 160. Action: Format the drive using the Fibre Channel RAID Manager. If this fails to ﬁx the problem, then exchange the FRU for a new FRU. IBM 2102 Model F10 and Model D00 Service Guide...
Page 57 Table 5. AIX Error Codes (continued) Description 671123 Disk Drive - see “Replace a Failed Drive” The drive does not respond or a deﬁned Global Hot Spare on page 160. drive is missing. Action: Exchange the FRU for a new FRU. 671126 Disk Drive - see “Replace a Failed Drive”...
Page 58 Action: Exchange the FRU for a new FRU. 679330 Disk Drive - see “Replace a Failed Drive” Error Log analysis indicates predictive failure analysis. on page 160. Action: Exchange the FRU for a new FRU. IBM 2102 Model F10 and Model D00 Service Guide...
Page 59 Table 5. AIX Error Codes (continued) Description 679332 Disk Drive - see “Replace a Failed Drive” Error Log Analysis indicates that the physical disk does not on page 160. support dual-active conﬁguration. Action: Exchange the FRU for a new FRU. 679333 Disk Drive - see “Replace a Failed Drive”...
Page 60 Failed Fan” on page 188. v Device Drawer ESM module - see “Replace a Failed ESM FRU” on page 170. v Device Drawer Midplane/Chassis - see “Replace a Failed MidPlane” on page 173. IBM 2102 Model F10 and Model D00 Service Guide...
Page 61: Location Codes Displayed By Diagnostics
Translating location codes for a disk drive failure: Disk drive failures will be reported in the following format: 653153: Drive failed by user via Mode Select. Refer to the 2102 Model F10 Service Guide for more information. 100% 17.357GB...
Page 62 Enclosure attached to SCSI channel 1 Enclosure attached to SCSI channel 2 Enclosure attached to SCSI channel 3 Enclosure attached to SCSI channel 4 Enclosure attached to SCSI channel 5 Enclosure attached to SCSI channel 6 IBM 2102 Model F10 and Model D00 Service Guide...
Page 64 IBM 2102 Model F10 and Model D00 Service Guide...
Page 65: Chapter 2. Installation And Removal Guide
Mounting hardware for any rack components that are not yet installed in the rack v Table or cart (optional) About the Installation Procedure The step-by-step procedures in this chapter will guide you through the entire installation process. These procedures include: © Copyright IBM Corp. 1999...
Page 66: Preparing The Site
14.3 kg 3.0 kg (6.6 lb) 9.7 kg 0.9 kg (1.9 lb) 0.7 kg (1.5 lb) 1.5 kg (3.3 (31.6 lb) (21.4 lb) Shipping 48.5 kg 28.4 kg (107.0 lb) (62.6 lb) IBM 2102 Model F10 and Model D00 Service Guide...
Page 67: Controller Module Dimensions
Table 7. Drive Module Weight Drive Module Weight Individual Component Weight Weight Maximum Empty 18 GB 9 GB Drive 4.5 GB ESM FRU Power Fan FRU Criteria Drive FRU Drive FRU Supply Unit 40.13 kg 10.3 kg 1.93 kg 1.63 kg 1.63 kg 2.77 kg 2.9 kg (6.4...
Page 68: Heating And Air Conditioning
-40° C to 60° C (-40° F to 140° F) Temperature Change (maximum Operating Range 10° C (18° F) per hour allowed) Storage Range 15° C (27° F) per hour Transit Range 20° C (36° F) per hour IBM 2102 Model F10 and Model D00 Service Guide...
Page 69: Electrical
Table 10. Environmental Requirements (continued) Element Unit of Measure Requirement Relative Humidity (no Operating Range 20% to 80% condensation) Storage Range 10% to 90% Transit Range 5% to 95% Maximum Dew Point 26° C (79° F) Maximum Humidity Gradient 10% per hour ¹...
Page 70 Additionally, if there are not enough PDU outlets for every power supply of all rack components, then it will be necessary to use a Y power cable to connect two power supplies to the same PDU outlet. The power cabling priority should be: IBM 2102 Model F10 and Model D00 Service Guide...
Page 71: Interface Connectors And Cables
1. There is at least 1 PDU outlet available for each module (controller, drive or hub) in the rack. This is the minimum requirement. 2. If there is only a single PDU in the rack, but an outlet is available, then each controller module power supply should be connected to a different PDU outlet.
Page 72: Media Interface Adapter (Mia)
“LVD-SCSI Drive Cable Routing Examples” on page 59 for examples of connecting the controller module to one or more LVD-SCSI drive modules. Table 15 on page 43 lists the SCSI cable that you can use on this drive module. IBM 2102 Model F10 and Model D00 Service Guide...
Page 73: Preparing The Rackmount Cabinet
Figure 5. Rackmount Cabinet Cabinet Preparation Task List If you are installing a new IBM 2101-100 Seascape Solutions rack with the rack components (controller module, drive modules and optional hubs) already installed, then use the following preparation checklist: 1.
Page 74: Installing The Support Rails
43. Make sure that you have a minimum of two feet around the outside of the cabinet in order to install the support rails and complete the remaining installation procedures. IBM 2102 Model F10 and Model D00 Service Guide...
Page 75: Installing The Controller Module
1. Turn off the power, if applicable. Stop all I/O activity to the devices in the cabinet in which you are installing the controller module. Turn off the power switches on both AC distribution boxes in the cabinet. 2. Install the support rails. If instructions were shipped with the support rail kit, then follow those instructions for installing the support rails.
Page 76: Removable Covers On The Controller Module
Figure 6. Removable Covers on the Controller Module 3. Remove all the FRUs, using Figure 7, Figure 8 on page 47 and Figure 9 on page 47 as a guide. Figure 7. Removing The FRUs IBM 2102 Model F10 and Model D00 Service Guide...
Page 77: Removing The Frus - Cont
Figure 8. Removing The FRUs – cont. Figure 9. Removing The FRUs – cont. 4. Put the controller module in the cabinet (Figure 10 on page 48). At front of the cabinet, set the controller module on the support rails and slide it to the back of the cabinet.
Page 78: Chassis Mounting On Support Rails
Note: The power supplies are interchangeable, so you can insert them in either slot. 7. Connect the LVD- SCSI drive cables (Figure 11 on page 49). Attach LVD-SCSI drive cables to the drive LVD connectors on the controller module. IBM 2102 Model F10 and Model D00 Service Guide...
Page 79: Installing The Drive Module
Figure 11. Interface Connections on a Rackmount Controller Module 8. If applicable, attach secondary interface cables (Figure 11). There is one RS-232 and one Ethernet connector for each controller. Attach cables to these connections if you need to perform troubleshooting, special conﬁguration tasks or you are connecting the controller to a network RAID storage Management PC.
Page 80: Removing The Drive Module Frus
Be sure to keep track of which drive you remove from which location. You must replace the drives in the exact slots from which you removed them. Figure 12. Removing the Drive Module FRUs IBM 2102 Model F10 and Model D00 Service Guide...
Page 81: Removing The Drive Module Frus - Cont
Figure 13. Removing the Drive Module FRUs – cont. 2. Put the Drive Module in the cabinet. At the front of the cabinet, set the Drive Module on the support rails and slide it to the back of the cabinet. 3.
Page 82 6 drive modules installed: The Bridge Disable bit (switch 1) should be in the ″OFF″ position for all drive module and each module will have single SCSI connections to the controller module. See “LVD-SCSI Drive Cable Routing Examples” on page 59 for examples. IBM 2102 Model F10 and Model D00 Service Guide...
Page 83 Figure 14. Tray ID and Option Switches 6. Connect the Cables There are two SCSI interface connectors on the ESM board (Figure 15 on page 54) for attaching the SCSI cables from the controllers to the Drive Module SCSI buses. Depending on the setting of the Bridge Disable switch (Option Switch 1), you will have to connect either one or two SCSI cables between the controller and drive modules: v If the Bridge Disable switch is in ″ON″...
Page 84: Conﬁguring The Controller Module
0 0 0 1 1 0 0 0 0 0 1 1 0 1 0 0 0 1 1 1 0 0 0 0 1 1 1 1 0 0 1 0 0 0 0 IBM 2102 Model F10 and Model D00 Service Guide...
Page 85 Host ID Setting Controller SCSI ID Binary (switch setting) 0 0 1 0 0 0 1 0 0 1 0 0 1 0 0 0 1 0 0 1 1 0 0 1 0 1 0 0 0 0 1 0 1 0 1 0 0 1 0 1 1 0 0 0 1 0 1 1 1 0 0 1 1 0 0 0...
Page 86: Completing The Installation
2. Make sure that both power switches on the controller module are turned off (Figure 17 on page 57). 3. Plug both power cords into the controller module (Figure 17 on page 57). 4. Plug power cords into the AC outlets. IBM 2102 Model F10 and Model D00 Service Guide...
Page 87: Controller Module Power Cords And Power Switches
If possible, plug each controller power cord into an independent power source to maintain power redundancy (see “Power Cord Routing Notes” on page 40). Figure 17. Controller Module Power Cords and Power Switches Figure 18. Drive Module Power Switches 5. Turn on the power as follows: a.
Page 88: Verifying The Installation
Note: The controller module, drive units, or other components in your system may be identiﬁed by names that differ from those used in this book. Keep this in mind when using the software. 3. Begin normal system operation. IBM 2102 Model F10 and Model D00 Service Guide...
Page 89: Removal
End of Procedure Removal If you are removing the subsystem from service, you must be sure to erase any user data on the array. Have the customer use the Storage management software to format all existing LUNs and then delete the conﬁguration. If the host connection is not available or already disconnected, you can use DOS RAID Manager (DRM) to perform these operations.
Page 90: Drive Cabling Example B
One (1) Drive Module v Bridge Disable = ON Figure 19. Rackmount Cabling to One Drive Module Drive Cabling Example B Drive Cabling Example B shows the cabling conﬁguration for two drive modules: IBM 2102 Model F10 and Model D00 Service Guide...
Page 91: Drive Cabling Example C
Conﬁguration: v One (1) Controller Module v Two (2) Drive Modules v All Bridge Disables = ON Figure 20. Rackmount Cabling to Two Drive Modules Drive Cabling Example C Drive Cabling Example C shows the cabling conﬁguration for three drive modules: Chapter 2.
Page 92: Drive Cabling Example D
Three (3) Drive Modules v All Bridge Disables = ON Figure 21. Rackmount Cabling to Three Drive Modules Drive Cabling Example D Drive Cabling Example D shows the cabling conﬁguration for four drive modules: IBM 2102 Model F10 and Model D00 Service Guide...
Page 93: Drive Cabling Example E
Conﬁguration: v One (1) Controller Module v Four (4) Drive Modules v Bridge Disable = OFF on Drive Modules D1 and D4 v Bridge Disable = ON on Drive Modules D2 and D3 Figure 22. Rackmount Cabling to Four Drive Modules Drive Cabling Example E Drive Cabling Example E shows the cabling conﬁguration for ﬁve drive modules: Chapter 2.
Page 94: Drive Cabling Example F
Bridge Disable = ON on Drive Module D3 Figure 23. Rackmount Cabling to Five Drive Modules Drive Cabling Example F Drive Cabling Example F shows the cabling conﬁguration for six drive modules: IBM 2102 Model F10 and Model D00 Service Guide...
Page 95: Rackmount Cabling To Six Drive Modules
Conﬁguration: v One (1) Controller Module v Six (6) Drive Modules v All 6 Bridge Disables = OFF Figure 24. Rackmount Cabling to Six Drive Modules Chapter 2. Installation And Removal Guide...
Page 96 IBM 2102 Model F10 and Model D00 Service Guide...
Page 98 IBM 2102 Model F10 and Model D00 Service Guide...
Page 99: Chapter 3. Getting Started
Battery FRU – one removable unit that contains batteries and battery charger circuitry. See “Battery Description” on page 112. v Controller fan FRU – one removable unit that contains two cooling fans. See “Controller Fan Description” on page 103. © Copyright IBM Corp. 1999...
Page 100: Internal Components
Figure 27. Back View of Controller Module Internal Components Inside the chassis, the controller module has the following primary components (Figure 28 on page 71 and Figure 29 on page 71): IBM 2102 Model F10 and Model D00 Service Guide...
Page 101: Internal Components
v Controller card cage – a modular structure inside the chassis consisting of controller shelves and the controller backpanel. See “Controller Backpanel Description” on page 96. Figure 28. Internal Components v Power supply assembly – a modular structure inside the chassis consisting of the power interface board and slots for holding the power supply and power supply fan FRUs.
Page 102: Basic Operation
“Restoring Power” on page 74. Instructions Use this procedure to power-up to the controller module. For instructions on powering-up the drive modules, refer to “Chapter 9. Operating the Drive Module” on page 153. IBM 2102 Model F10 and Model D00 Service Guide...
Page 103: Controller Module Power Switches
Important: You must turn on the drive modules ﬁrst before turning on the controller module. The controllers will not acknowledge any attached drives that are powered up after the controller module. When are you turning on the controller module? v After a normal shutdown. Turn on both power switches on the back of the controller module (Figure 31).
Page 104: Turning Off The Power
If applicable, turn on the circuit breakers in the rackmount cabinet. c. Next, turn on both power switches on the back of the controller module 3. Check the status of the controller module and other devices. IBM 2102 Model F10 and Model D00 Service Guide...
Page 105: Using The Status Leds
Make sure all Fault LEDs are off on the front and back of the controller module (see “Using the Status LEDs”). Once all the devices on the system are powered-up, check the overall system status using the storage management software. 4.
Page 106 “Troubleshooting Power Supply Problems” on page 120 Amber “Determining Which Fan Failed” on page 102 Controller Amber “Troubleshooting Controller Problems” on page 92 Fast Write Cache Green Blinking¹ Off¹ See footnote¹ IBM 2102 Model F10 and Model D00 Service Guide...
Page 107 Table 16. Status LEDs on Front of Controller Module (continued) Location LED Color Normal Status Problem Status See: Controller FRU Fault Amber “Troubleshooting Controller Problems” on page 92 Power Green “Troubleshooting Controller Problems” on page 92 Heartbeat Green Blinking² Table 18 on page 90 and “Troubleshooting Controller Problems”...
Page 108: Instructions For Modifying The Controller Module
(refer to Preparing to Move the Controller Module) You can use the instructions in this section to disassemble and reassemble all or part of the controller module in order to move, modify, or service its parts. IBM 2102 Model F10 and Model D00 Service Guide...
Page 109: Preparing To Move The Controller Module
Preparing to Move the Controller Module Perform the following preparatory tasks before moving the controller module to a new location or before removing it from its cabinet. These will help safeguard the equipment and help ensure a smoother transition to the new environment. These tasks include: v Always make sure that all I/O activity to and from the controller module has stopped.
Page 110: Removing And Installing Frus
Figure 34. Removing and Installing FRUs Figure 35. Removing and Installing FRUs – cont. IBM 2102 Model F10 and Model D00 Service Guide...
Page 111: Removing The Module From The Rackmount Cabinet
Figure 36. Removing and Installing FRUs – cont. Removing the Module from the Rackmount Cabinet Tools and Equipment Screwdrivers, antistatic protection, and cart or level surface (to hold the controller module chassis and FRUs) Instructions Use this procedure to remove the controller module from the rackmount cabinet. 1.
Page 112: Removing And Installing The Chassis On Support Rails
Then, install the controller module by reversing the steps in this procedure. Refer to “Chapter 2. Installation And Removal Guide” on page 35 for instructions on installing the controller module. IBM 2102 Model F10 and Model D00 Service Guide...
Page 113: Disassembling And Reassembling The Chassis
v If you are shipping the controller module to another location, replace all of the FRUs in the controller module. Carefully wrap and pack the unit in its original shipping material and container. End of Procedure Disassembling and Reassembling the Chassis Tools and Equipment Antistatic protection and screwdrivers Instructions...
Page 114 ﬂat across the bottom of the access hole in the connector plate. 8. Remove the eight screws (four on each side) from the forward sides of the chassis (Figure 42 on page 85). IBM 2102 Model F10 and Model D00 Service Guide...
Page 115: Removing The Controller Card Cage
Figure 41. DC Battery and Power Harness Connections 9. Lift the controller card cage assembly out of the chassis (Figure 42). Grasp and lift the top, front edge of the controller card cage slightly (about one inch). Pull the card cage ﬁrmly toward the front until the connectors on the controller backpanel exit the holes in the connector plate.
Page 116 All Power LEDs should be on and Fault LEDs should be off. If there is a problem, refer to the “Troubleshooting Quick Reference” on page 133. 18. Replace the front cover on the controller module. End of Procedure IBM 2102 Model F10 and Model D00 Service Guide...
Page 117: Chapter 4. Controllers
Internal components – Two Fibre Channel controllers – Controller card cage (includes controller backpanel) v External connections: – Fibre Channel host adapters, cables, terminators, and hub or switching devices – SCSI drive cables © Copyright IBM Corp. 1999...
Page 118: Hints For Troubleshooting Interface Problems
Change the cable connections as necessary. See “LVD-SCSI Drive Cable Routing Examples” on page 59 for information regarding interface cable routing and connections to the controller module. (For cable connection information for other devices, refer to applicable hardware manuals.) IBM 2102 Model F10 and Model D00 Service Guide...
Page 119: Controller Fru
v If you were sent here from the “AIX Error Codes (SRNs)” on page 15, then return to the entry that sent you here. Otherwise, continue below. Problems resulting from a defective host adapter board, controller, memory module, or controller backpanel may be difficult to detect. If checking all the items listed above does not identify the problem, try: 1.
Page 120: Controller Fru, Slots And Leds - Cont
- indicates a controller problem except during initialization. The status LEDs will ﬂash various patterns during initialization (power on or reset) while the controller performs its self test diagnostics. IBM 2102 Model F10 and Model D00 Service Guide...
Page 121: Controller Speciﬁcations
Controller Speciﬁcations Table 19. Controller FRU Speciﬁcations Category Criteria Speciﬁcation Weight Component weight 3.0 kg (6.6 lb) Shipping weight 5.0 kg (11.0 lb) Power Requirement +5 VDC 7.0 A +12 VDC 0.1 A Memory Processor/Cache Size 32/128 MB, 32/256 MB Interface Host v Fibre Channel...
Page 122: Troubleshooting Controller Problems
Symptom: Controller and Fan LED (front cover) are on. 1. Possible Cause: Controller fan failure caused one or both controllers to overheat. a. Stop all activity to the controller module and turn off the power. IBM 2102 Model F10 and Model D00 Service Guide...
Page 123: Replacing A Failed Controller
b. Replace the failed controller fan FRU using the instructions in “Replacing a Failed Controller Fan” on page 106. c. Allow the controller module to cool down, then turn on the power. d. Check both controller FRUs for fault LEDs. If a controller Fault LED turns on, replace the failed controller FRU using the instructions in “Replacing a Failed Controller”.
Page 124 Using the proper handling precautions, remove the controller from the packing material. Check the shipping invoice and the controller FRU to make sure that this is the same type of controller that you just removed (same ﬁrmware version and memory size). IBM 2102 Model F10 and Model D00 Service Guide...
Page 125: Removing And Installing A Controller Fru
Figure 47. Removing and Installing a Controller FRU 6. Install the new controller FRU (Figure 47). 7. Restore the controller’s operating status. Note: Status and error messages may have been logged on the host during the controller replacement procedure because the host continues to poll for the controller.
Page 126: Controller Backpanel
Fibre Channel network. Inside the chassis is the controller card cage (Figure 48), a modular structure consisting of controller slots and the controller backpanel. Figure 48. Controller Card Cage IBM 2102 Model F10 and Model D00 Service Guide...
Page 127: Controller Backpanel Speciﬁcations
Controller Backpanel Speciﬁcations Table 20. Controller Backpanel Speciﬁcations Category Criteria Speciﬁcation Power Connectors +5 VDC (2) 4-pin +12 VDC (1) 14-pin Battery (1) 50-pin card edge Interface Connectors Fibre Channel host (2) 9-pin copper wire SCSI drive (6) 68-pin, LVD, Ultra SCSI-2 Diagnostic (2) RS-232 and (2) Ethernet Switches...
Page 128: Replacing A Failed Controller Backpanel
Attention: Electrostatic charges can damage sensitive components. Use a grounding wrist strap or other antistatic precautions before removing or handling the components in the controller module. Tools and Equipment Replacement controller card cage, screwdrivers, and antistatic protection IBM 2102 Model F10 and Model D00 Service Guide...
Page 129 Instructions Use this procedure to replace a failed controller backpanel (controller card cage). 1. Have the customer stop all I/O, then power off the controller. 2. Remove all of the FRUs using the instructions in “Removing and Installing FRUs” on page 79. When you are ﬁnished, continue at the next step in this procedure.
Page 130 IBM 2102 Model F10 and Model D00 Service Guide...
Page 131: Chapter 5. Cooling System
Also, make sure that the ambient air temperature around the controller module is within the environmental requirements. (Refer to “Heating and Air Conditioning” on page 38). © Copyright IBM Corp. 1999...
Page 132: Preserving Proper Air Flow
Power supply Fan FRU Fault LED is off. Go to “Replacing a Failed Controller Fan” on page 106. v Power supply Fan FRU Fault LED is on. Go to “Replacing a Failed Power Supply Fan” on page 109. End of Procedure IBM 2102 Model F10 and Model D00 Service Guide...
Page 133: Controller Fan Fru
Figure 51. Controller Module Fan Fault LEDs Controller Fan FRU Controller Fan Description The Controller Fan FRU (Figure 52 on page 104) is a single, removable unit containing two cooling fans, temperature monitoring logic, and ﬁve Status LEDs. See Table 21 for the LED status descriptions. Table 21.
Page 134: Controller Fan Speciﬁcations
Table 22. Controller Fan FRU Speciﬁcations Category Criteria Speciﬁcation Weight Component Weight 0.9 kg (1.9 lb) Shipping Weight 2.3 kg (5.0 lb) Power Requirement +5 VDC 0.07 A +12 VDC 0.7 A IBM 2102 Model F10 and Model D00 Service Guide...
Page 135: Controller Fan Servicing Notes
Controller Fan Servicing Notes You can hot swap the controller fan FRU (replace it while the controller module is turned on and running), as long as you complete the exchange within 15 minutes. The time limit only applies to the total time that the fan FRU is out of the chassis.
Page 136: Replacing A Failed Controller Fan
FRU is inserted all the way into the chassis. If the screw keeps spinning without tightening, push on the front of the fan FRU until it snaps into place-then tighten the captive screw. IBM 2102 Model F10 and Model D00 Service Guide...
Page 137: Power Supply Fan Fru
Figure 53. Removing and Installing a Controller Fan 5. Check the LEDs on the controller fan FRU (Figure 32 on page 76). The green Power LED should be on and the amber LEDs should be off. If the Fan LED turns on or the Power LED remains off, make sure that the controller fan FRU is inserted all the way into the chassis and the thumbscrew is tight.
Page 138: Power Supply Fan
Table 24. Power Supply Fan FRU Speciﬁcations Category Criteria Speciﬁcation Weight Component Weight 0.7 kg (1.5 lb) Shipping Weight 2.1 kg (4.5 lb) Power Requirement +5 VDC 0.02 A +12 VDC 0.65 A IBM 2102 Model F10 and Model D00 Service Guide...
Page 139: Power Supply Fan Servicing Notes
Power Supply Fan Servicing Notes You can hot swap the power supply fan FRU (replace it while the controller module is turned on and running), as long as you complete the exchange within 15 minutes. This time limit applies only to the total time that the fan FRU is out of the chassis, beginning when you remove the failed unit and ending when you re-seat the new one.
Page 140: Removing And Installing A Power Supply Fan Fru
FRU. If a spare power supply fan FRU is not available, turn off the controller module. This will prevent the power supplies from overheating while you get a replacement fan. 6. Replace the back cover. End of Procedure IBM 2102 Model F10 and Model D00 Service Guide...
Page 141: Chapter 6. Power System
This includes both external and internal power problems such as power outages, weak batteries, or a failure of the power interface board. All power system failures are caused by some type of © Copyright IBM Corp. 1999...
Page 142: Types Of Power System Problems
FRU maintains electrical current to the controllers for up to three days. Thus, all data stored in memory will be preserved as long as the batteries can sustain power to the cache memory. IBM 2102 Model F10 and Model D00 Service Guide...
Page 143: Battery Speciﬁcations
Under these circumstances, try replacing the battery harness ﬁrst. Attention: This product contains a SEALED LEAD ACID BATTERY. When the battery assembly is replaced, the used battery assembly must be returned to IBM for proper disposal. Chapter 6. Power System...
Page 144: Troubleshooting Battery Problems
Symptom: Loss of battery backup during a power outage. 1. Possible Cause: Battery failure or battery FRU is missing. a. Replace the battery FRU using the instructions on “Replacing the Battery FRU” on page 116. IBM 2102 Model F10 and Model D00 Service Guide...
Page 145: Checking The Battery Service Date
Checking the Battery Service Date Note: Under normal circumstances, replace the battery FRU every two years. Using the controller module in a hot environment (above 35° C or 95° F), lowers the life expectancy of the battery FRU. Under these conditions you may need to replace the battery every six months.
Page 146: Replacing The Battery Fru
Use this procedure to replace the battery FRU as part of routine maintenance. 1. Unpack the battery FRU. Save the shipping material for returning the used battery FRU to IBM for disposal. (Figure 57 on page 113). v Record today’s date on the blank line next to “Date of Installation.”...
Page 147: Removing And Installing The Battery Fru
For example: c:\Program Files\IBM\fcsm> lad Drive0 1T80402577 LUNS: 0 Drive8 1T81207809 LUNS: 1 c:\Program Files\IBM\fcsm> raidutil -c Drive0 -R LUNs found on Drive0 LUN 0 RAID 5 333 MB raidutil succeeded! c:\Program Files\IBM\fcsm> raidutil -c Drive8 -R...
Page 148: Power Supply Fru
When properly charged, both Full Charge LEDs will be glowing on the front of the battery FRU. 8. Using the original shipping material, return the used battery FRU to IBM for proper disposal. Attention: This product contains a SEALED LEAD ACID BATTERY. When the battery assembly is replaced, the used battery assembly must be returned to IBM for proper disposal.
Page 149: Power Supply Speciﬁcations
Figure 61. Power Supply FRU Table 26. Power Supply FRU Status LEDs Description Green LED indicates that the power is on: v Normal status, all power turned on: On (LEDs on both power supplies are on; Power LED on front cover is on) v Normal status, all power turned off or one power supply turned Power:...
Page 150: Troubleshooting Power Supply Problems
“Recovering from a Power Supply Shutdown” on page 121. If not, go to step 2.b. b. Replace the power supply FRU using the instructions on “Replacing a Failed Power Supply” on page 122. IBM 2102 Model F10 and Model D00 Service Guide...
Page 151: Recovering From A Power Supply Shutdown
Recovering from a Power Supply Shutdown Instructions Use this procedure to regain normal system operation after a power supply shutdown. For more information on the power supplies, refer to “Power Supply Description” on page 118. 1. Read the information in “Power Supply Recovery Notes” on page 119 2.
Page 152: Replacing A Failed Power Supply
Always turn off the power switch and unplug the power cord before you remove or install a power supply FRU. 3. Remove the failed power supply (Figure 64 on page 123). IBM 2102 Model F10 and Model D00 Service Guide...
Page 153: Battery Harness
Figure 63. Turning Off the Power and Unplugging the Power Cord Figure 64. Removing and Installing a Power Supply FRU 4. Unpack and install the new power supply (Figure 64). 5. Plug in the power cord and turn on the power (Figure 63). 6.
Page 154: Battery Harness Speciﬁcations
Make sure that cache memory is devoid of all data v Turn off all power v Remove the controller module from the cabinet v Be sure the chassis is disassembled enough to allow the unplugging of the harness IBM 2102 Model F10 and Model D00 Service Guide...
Page 155: Troubleshooting Battery Harness Problems
Troubleshooting Battery Harness Problems Symptom: Battery FRU is new, but will not hold a charge. 1. Possible Cause: Battery harness defective. a. Replace the battery FRU using the instructions on “Replacing the Battery FRU” on page 116. b. Replace both power supplies using the instructions on “Replacing a Failed Power Supply”...
Page 156: Dc Power Harnesses
The controller module contains three DC Power harness: two +5 VDC and one +12 VDC. The power harnesses (Figure 67 on page 127) provide power connections between the power interface board and the controller backpanel. IBM 2102 Model F10 and Model D00 Service Guide...
Page 157: Dc Power Harness Speciﬁcations
Figure 67. DC Power Harnesses DC Power Harness Speciﬁcations Table 29. DC Power Harness Speciﬁcations Category Criteria Speciﬁcation Connectors +5 VDC 4-pin male N-LOK on both ends +12 VDC 14-pin male N-LOK on both ends Power Transfer +5 VDC Up to 25 A +12 VDC Up to 4 A DC Power Harness Servicing Notes...
Page 158: Replacing The Dc Power Harnesses
Go to “Disassembling and Reassembling the Chassis” on page 83 and follow the instructions that explain how to disassemble the chassis far enough to unplug the DC power harnesses. Once you have unplugged all three harnesses, continue at the next step. IBM 2102 Model F10 and Model D00 Service Guide...
Page 159 Figure 68. Reconnecting the DC Power Harnesses 5. Unpack and install the new harnesses. 6. Reassemble the chassis by reversing the process you used in Step 4 on page 128. 7. Install the controller module into the cabinet (reverse the process you used in Step 3 on page 128).
Page 160: Power Interface Board
The procedure in this section explains how to replace the controller module chassis, which includes the power interface board. It assumes that you have already checked the power cords, checked for a failed power supply IBM 2102 Model F10 and Model D00 Service Guide...
Page 161: Troubleshooting Power Interface Board Problems
(“Troubleshooting Power Supply Problems” on page 120), and replaced the power harnesses (“Troubleshooting DC Power Harness Problems” on page 127). When replacing a defective Power Interface Board, you must: v Stop all bus processes and data transfers to the controller module and drives v Make sure that cache memory is devoid of all data v Turn off all power v Remove the controller module from the cabinet...
Page 162 If there is still a problem with the power system, replace the controller backpanel (see “Replacing a Failed Controller Backpanel” on page 98). 9. Replace the front cover. End of Procedure IBM 2102 Model F10 and Model D00 Service Guide...
Page 163: Chapter 7. Reference
1. Possible Cause: Other FRUs are missing or not installed correctly. a. Check all FRUs in the controller module and make sure they are installed securely. If this does not ﬁx the problem, go to Possible Cause 2. © Copyright IBM Corp. 1999...
Page 164 Check the drive module for a drive fault. If a failed drive is indicated, replace the drive using the instructions in “Replace a Failed Drive” on page 160. 6. Possible Cause: Failed controller backpanel. IBM 2102 Model F10 and Model D00 Service Guide...
Page 165: Cooling Problems
a. Replace the controller card cage using the instructions on “Replacing a Failed Controller Backpanel” on page 98. Cooling Problems Symptom: Fan LED (front) is on or the host software reported a controller fan problem. 1. Possible Cause: Power supply fan FRU is missing or unplugged. a.
Page 166: Power Problems
FRU” on page 116. Symptom: No power to the controller module (all Power LEDs off). 1. Possible Cause: Power switches turned off. a. Turn on both power switches on the controller module. IBM 2102 Model F10 and Model D00 Service Guide...
Page 167 3. Possible Cause: Rack power failure. a. Go to the power MAP for the rack in Seascape Solution Rack, Installation and Service Guide, IBM 2101 Model 100 , SY27-7606. 4. Possible Cause: Power supplies overheated or failed. a. Wait 10 minutes. If the power supplies turn on automatically, use the recovery procedure on “Recovering from a Power Supply Shutdown”...
Page 168 DC Power Harnesses” on page 128. If this does not resolve the problem, go to Possible Cause 2. 2. Possible Cause: Defective power interface board. a. Replace the power interface board using the instructions on “Replacing a Controller Module Chassis” on page 131. IBM 2102 Model F10 and Model D00 Service Guide...
Page 170 IBM 2102 Model F10 and Model D00 Service Guide...
Page 171: Chapter 8. Getting Started With The Drive Module
Designed for easy installation and integration into a wide range of system environments, the drive module can support a variety of styles and conﬁgurations. The remaining sections in this chapter describe these and other features. Figure 70. Drive Module © Copyright IBM Corp. 1999...
Page 172: Basic Components
Power Supply FRUs – two portable containers for the power supplies. See “Power Supply FRUs” on page 149. v Interface FRUs – a portable container for an ESM board. See “Environmental Services Monitor Board” on page 146. IBM 2102 Model F10 and Model D00 Service Guide...
Page 173: About The Drives
Figure 72. Back View of the Drive Module About the Drives There are three types of drives that may be used in a drive module: v 16-bit, 4.5 GB SCSI disk drives v 16-bit, 9 GB SCSI disk drives v 16-bit, 18 GB SCSI disk drives The rackmount drive module supports up to ten drive FRUs.
Page 174: Drive Frus
Figure 75 on page 145 for more detailed information. The Drive FRUs plug into the drive slots and directly into the drive module’s mid-plane, which automatically sets the drive channel and SCSI ID numbers. Drive IBM 2102 Model F10 and Model D00 Service Guide...
Page 175: Drive Capacities
modules use the Option switches to conﬁgure the modules in one of two ways: two 5-drive buses, or one 10-drive bus. The SCSI ID numbers for the two 5-drive buses are 0–4 for each bus, and for the one 10-drive bus, the SCSI ID numbers are 0–4 and 8–0xC.
Page 176: About The Scsi Components
(refer to “Mid-Plane” on page 148). Two levers lock the FRU in place. Figure 76. ESM FRU The ESM FRU has several connectors, switches, and LEDs (Figure 77), including: IBM 2102 Model F10 and Model D00 Service Guide...
Page 177 v SCSI connectors: two 68 pin VHDCI for SCSI bus cables v Tray ID switch: a binary, rotary switch that sets the drive module’s tray ID number v Option switches: ﬁve 2-position switches that enable or disable drive interface functions on the ESM board (For a detailed description of these switches, see Table 35 on page 191).
Page 178: Mid-Plane
ESM board. The mid-plane has ﬁfteen connectors: v Ten front connectors for the drives v Five back connectors for the ESM board, two power supplies, and two fans IBM 2102 Model F10 and Model D00 Service Guide...
Page 179: Interface Cables
Figure 78. Location of Mid-Plane Interface Cables The drive module uses two SCSI bus cables. For more information on interface cables, refer to the following: v Troubleshooting the SCSI components and cables, refer to “Hints for Troubleshooting Interface Problems” on page 169. v Technical information regarding interface cables and details about drive SCSI IDs and interface options during drive module installation, refer to “Chapter 14.
Page 180 183. v Reviewing drive module power requirements, see the power requirements section on “Electrical” on page 39. v Troubleshooting the power system, see the “Drive Module Troubleshooting Chart” on page 198. IBM 2102 Model F10 and Model D00 Service Guide...
Page 181: About The Cooling System
About the Cooling System The drive module’s cooling system consists of two fan FRUs, each containing two fans. Fan FRUs The fan FRUs (Figure 80) circulate air inside the drive module by pulling air in through the vents on the front of the drive FRUs and pushing the exhaust out the vents in the back of each fan FRU.
Page 182 Important: If the ″Reset Conﬁguration″ option is used to delete the conﬁguration information on the drives, be aware that this function results in the creation of a default LUN 0. You must delete this LUN after the reset conﬁguration function completes. IBM 2102 Model F10 and Model D00 Service Guide...
Page 183: Chapter 9. Operating The Drive Module
3. During the power-up process, the drive module LEDs may turn on and off intermittently. When power-up is complete, the green LEDs should be on and the amber LEDs should be off. © Copyright IBM Corp. 1999...
Page 184: Turn Off The Power
Turn Off the Power Note: Except in an emergency, never turn off the power if any Fault LEDs are lit on the drive module, especially on the drive FRUs. Always use the IBM 2102 Model F10 and Model D00 Service Guide...
Page 185: Perform An Emergency Shutdown
proper troubleshooting or servicing procedure to correct a fault before turning off the power. This will ensure that the drive module will power up correctly later. For guidance, refer to “Drive Module Troubleshooting Chart” on page 198. The drive module is designed to run continuously, 24 hours a day. Once you turn on the drive module, it should remain on.
Page 186: Restore Power After An Emergency
Check the Overall Hardware Status Instructions Use this procedure to check the operating status of the drive module and its components. 1. Check the LEDs on the front panel (Figure 82 on page 157). IBM 2102 Model F10 and Model D00 Service Guide...
Page 187 Under normal conditions, all Power/Fault LEDs above the drives will be glowing green (read the following NOTE). If any Power/Fault LEDs turn amber, go to “Replace a Failed Drive” on page 160. Note: v If there is I/O activity to the drive module, the green Active LEDs will be blinking above one or more drives.
Page 188 Chart” on page 198 Bus Mode (LVD/SE) Green On for LVD connection Off for LVD connection “Drive Module Off for SE connection On for SE connection Troubleshooting Chart” on page 198 IBM 2102 Model F10 and Model D00 Service Guide...
Page 189: Chapter 10. Servicing The Drives
Power/Fault LED may not be glowing amber. In these cases, you will have to manually fail the drive from the host before replacing it. © Copyright IBM Corp. 1999...
Page 190: Drive Failure Notes
To replace a failed ESM board, refer to “Replace a Failed ESM FRU” on page 170. Replace a Failed Drive Problem Indicators There may be a drive problem when one or more of the following occur above a drive FRU: IBM 2102 Model F10 and Model D00 Service Guide...
Page 191 v Front panel Power/Fault LED turns amber v Front panel Power/Fault LED is off v Front panel green Active LED turns off and remains off, even during I/O operations to that drive Note: During a drive failure: v If a single drive fails in a RAID 0 logical unit, you may lose all data in that drive group.
Page 192 8. Install the new drive (Figure 85 on page 163). Make sure that at least ten seconds have passed since you removed the failed drive. After ten seconds, install the new drive FRU. IBM 2102 Model F10 and Model D00 Service Guide...
Page 193: Removing/Installing Drive Frus
Figure 85. Removing/Installing Drive FRUs 9. Check the LEDs above the new drive (Figure 84 on page 162). After you insert the drive, both LEDs may turn on intermittently as the drive spins-up. Wait for the drive to complete the spin-up process, then choose one of the following that best describes the behavior of the drive LEDs: a.
Page 194: Identify Other Drive-Related Problems
Close the panels (or doors) on the cabinet, if applicable. Identify Other Drive-Related Problems Problem Indicators There may be a drive-related problem with the ESM board or mid-plane when one or more of the following occur: IBM 2102 Model F10 and Model D00 Service Guide...
Page 195 v All or some Active LEDs remain off on drives connected to the same SCSI bus, or during either I/O operations or “drive identify” commands from the host v All drive FRU Power/Fault LEDs are glowing green, yet the operating system or host software indicates an I/O error or drive fault v Host is unable to access the drives on one or more SCSI buses Instructions...
Page 196 Check the rack power. See the power MAP for the rack in the Seascape Solution Rack, Installation and Service Guide, IBM 2101 Model 100 , SY27-7606. v Check the building’s main circuit breaker and outlet to verify that there is power to the drive module.
Page 197: Chapter 11. Servicing The Scsi Components
See “Stopping I/O to the Drives” on page 168. v The drives connected to a speciﬁc SCSI cable will all have the same SCSI channel ID. The SCSI channel ID will correspond to the SCSI connector that the © Copyright IBM Corp. 1999...
Page 198: Maintaining The Scsi Components
Loose, disconnected, damaged SCSI cables or connectors v Improper interface switch settings v Failed ESM board v Drive failure or other device failure on the SCSI bus v Failed mid-plane inside the drive module IBM 2102 Model F10 and Model D00 Service Guide...
Page 199: Hints For Troubleshooting Interface Problems
v Failed host adapter board Hints for Troubleshooting Interface Problems The ﬁrst step in correcting a communication problem is to determine the source of the problem. This means you need to decide if there is a problem with the hardware (physical equipment) or with the software (operating system or disk array application).
Page 200: Replace A Failed Esm Fru
3. Check the LEDs on the drive module and answer the following questions: Is the amber LED lit on the ESM FRU? v Yes. The drive module is overheated. Go to Step 5 on page 171. IBM 2102 Model F10 and Model D00 Service Guide...
Page 201: Amber Fault Leds (Rackmount)
v No. The operating temperature is normal. Answer the next question. Are other amber LEDs lit on the drive module? v Yes. Go to the appropriate procedure to replace the failed hardware component. Refer to “Drive Module Troubleshooting Chart” on page 198 for guidance.
Page 202: Power Switches, Power Cords, And Scsi Interface Cables
Disable option switch correctly could result in data loss. You must set Option switches #1 and #2 on the new ESM FRU EXACTLY as they were set on the failed ESM FRU. IBM 2102 Model F10 and Model D00 Service Guide...
Page 203: Replace A Failed Midplane
Figure 88. Removing/Installing an ESM FRU 10. Install the new ESM FRU (Figure 88). Set the new ESM FRU into the empty slot, slide it all the way into the drive module and lock both handles in place. 11. Re-connect the SCSI cables (Figure 87 on page 172). Make sure that all the cables are plugged in securely in their original locations.
Page 204 Unplug the interface cables. The drive modules may have up to two SCSI cables. You should label each SCSI cable with the appropriate bus number. Attention: Reconnecting SCSI cables incorrectly on an ESM FRU could cause data loss. IBM 2102 Model F10 and Model D00 Service Guide...
Page 205: Power Switches, Power Cords, And Scsi Cables
Figure 89. Power Switches, Power Cords, and SCSI Cables 5. Remove all FRUs. (Figure 90 and Figure 91 on page 176). Remove the drives, fans, power supplies, and ESM FRU. Attention: Make sure that you keep the drives in sequential order. You must replace the drive FRUs in the EXACT location from which you removed them.
Page 206: Removing/Installing Drive And Fan Frus
Do the following: a. Remove the two screws from the back of the drive module chassis that secure the drive module to the support rails (see Figure 92 on page 177). IBM 2102 Model F10 and Model D00 Service Guide...
Page 207 Figure 92. Rear Mounting Screws b. Remove the screws on each side of the drive module that secure the bezel and drive module to the rack. Slide the chassis out of the cabinet and set it out on a dry, level surface. Figure 93.
Page 208 LEDs turn amber or any Fault LEDs on the back come on, go to “Drive Module Troubleshooting Chart” on page 198 for instructions. 10. Return to normal operation. Use the Fibre Channel Storage Manager host software to verify the drive module’s status. IBM 2102 Model F10 and Model D00 Service Guide...
Page 209: Chapter 12. Servicing The Power System
(turn the power switches off, then on). This will cause the array controller to restart itself, attempt to spin up the drives, and return to a normal operating state. Typically, you will not need to perform additional recovery procedures after a power supply shutdown and restart. © Copyright IBM Corp. 1999...
Page 210: Maintaining The Power System
1. Read the information in “Power Supply Recovery Notes” on page 179. 2. If applicable, remove the panels (or open the doors) on the cabinet to gain access to the drive module. IBM 2102 Model F10 and Model D00 Service Guide...
Page 211: Fault Leds On The Back Of The Drive Module
3. Check the LEDs on the power supply FRUs (Figure 94). Look at the power supply FRUs and select one of the following that matches their current LED status: v Green LEDs are on and amber LEDs are off. Power supplies are working properly.
Page 212: Drive Module
Yes. Go to the next question. v No. Check the rack power (see the rack power MAP in the Seascape Solution Rack, Installation and Service Guide, IBM 2101 Model 100 , SY27-7606) and external power source. Does the current problem match one of the conditions listed below? v Hot temperature.
Page 213: Replace A Failed Power Supply
Replace a Failed Power Supply Problem Indicators There may be a problem with a power supply when one or more of the following occur: v Amber Fault LED on power supply FRU is lit v Software reports a power supply error Note: A glowing amber LED on a power supply does not necessarily indicate a hardware failure.
Page 214: Fault Leds On The Back Of The Drive Module
If the amber LEDs remain on or the green LED remains off, go to Step 5 on page 185. IBM 2102 Model F10 and Model D00 Service Guide...
Page 215: Power Switches And Power Cords
Figure 96. Power Switches and Power Cords 4. Restore power. Answer the following: Are all LEDs on the power supplies turned off, the power cords plugged into both power supplies, and the power switches turned on? v Yes. Go to the next question. v No.
Page 216: Removing/Installing A Power Supply Fru
LEDs. If the amber LEDs remain on or the drive module will not power-up, it probably means that the midplane has failed (see “Replace a Failed MidPlane” on page 173). IBM 2102 Model F10 and Model D00 Service Guide...
Page 217: Chapter 13. Servicing The Cooling System
To avoid cooling problems, always keep the air vents free of obstructions. Also, make sure that the ambient air temperature around the drive module is within environmental requirements listed under “Heating and Air Conditioning” on page 38. © Copyright IBM Corp. 1999...
Page 218: Replace A Failed Fan
Failed Power Supply” on page 183. v No amber LEDs are lit on the back of the drive module, yet software is reporting an over-temperature condition. Go to Step 4 on page 189. IBM 2102 Model F10 and Model D00 Service Guide...
Page 219: Fault Leds On The Back Of The Drive Module
Figure 98. Fault LEDs on the Back of the Drive Module 3. Shut down the drive module immediately. Do not run the drive module if both fan FRUs have failed. Stop all activity to the drive module and turn off both power switches. Go to Step 5. 4.
Page 220: Removing/Installing A Fan Fru
(see “Replace a Failed MidPlane” on page 173). 9. Replace the cabinet panel or close the back door, as necessary. IBM 2102 Model F10 and Model D00 Service Guide...
Page 221: Chapter 14. Technical Reference
= disables: no UPS support to the drive module = enables: allows UPS support, and the host perform a cache memory dump to the drive module during a power outage Switch 5: This switch is reserved. It has no function at this time. © Copyright IBM Corp. 1999...
Page 222: Hardware Features
What type of RAID management software you are using on the drive module v Whether or not you want to use the factory default conﬁguration settings (number of LUNs, RAID level, hot spare drives, etc.) IBM 2102 Model F10 and Model D00 Service Guide...
Page 223: Interface Connections And Cables
Table 37 lists a few of the default software parameters that may or may not be set at the factory prior to shipment. Before you attempt to store data on the drive module, you should use Fibre Channel Storage Manager or the appropriate software to determine the following: v Exactly how the drive module is currently conﬁgured v Whether or not you want to change that conﬁguration...
Page 224: Scsi Cables
True indicates CONTROL. INPUT/OUTPUT A signal driven by a Target controlling the direction of data movement on the data bus with respect to the Initiator. True indicates input to the Initiator. IBM 2102 Model F10 and Model D00 Service Guide...
Page 225: Scsi Drive Pin Assignments And Signals
Table 39. Host SCSI Signal Descriptions (continued) Signal Name Description MESSAGE A signal driven by the Target during a MESSAGE phase. REQUEST A signal driven by the Target to indicate a request for an REQ/ACK data transfer handshake. ACKNOWLEDGE A signal driven by the Initiator to indicate acknowledgment for an REQ/ACK data transfer handshake.
Page 226 True indicates CONTROL. INPUT/OUTPUT A signal driven by a Target controlling the direction of data movement on the data bus with respect to the Initiator. True indicates input to the Initiator. IBM 2102 Model F10 and Model D00 Service Guide...
Page 227: Chapter 15. Quick References
FRUs Lever Locks and unlocks the power supply FRU AC Connector Provides an AC connection to the power source AC Power Switch 0 or 1 Turns the power on and off to the power supply © Copyright IBM Corp. 1999...
Page 228: Drive Module Troubleshooting Chart
Try sending an “identify drive” command to the affected drive or drives, causing Power/Fault LED to blink amber/green. v Replace the ESM board. Midplane failure Replace midplane. “Replace a Failed MidPlane” on page 173 IBM 2102 Model F10 and Model D00 Service Guide...
Page 229 Table 43. Drive Module Troubleshooting Chart (continued) Component Problem Possible Cause Possible Solution See: Green LEDs on, Glowing power and blinking No action required. amber LEDs off activity LEDs: Normal drive activity. ALL LEDs off Drive module power off “Turn On the v Check that both drive Power”...
Page 230 169 Amber LED off Normal operation No action required. Fan failure Replace failed fan FRU. “Replace a Fan FRU Amber LED on and/or Failed Fan” on fan motor stopped page 188 IBM 2102 Model F10 and Model D00 Service Guide...
Page 231 Table 43. Drive Module Troubleshooting Chart (continued) Component Problem Possible Cause Possible Solution See: Both power cords “Turn On the v If necessary, plug in the unplugged or switches Power” on All LEDs off power cords. turned off page 153 v Turn on power switches.
Page 232 IBM 2102 Model F10 and Model D00 Service Guide...
Page 234 IBM 2102 Model F10 and Model D00 Service Guide...
Page 235: Chapter 16. Raid Manager For Dos
DRM Main menu. DRM is shipped with the subsystem on a DOS bootable diskette. It can be run from an IBM compatible PC or laptop that is connected to the array controller via a serial cable. When to Use RAID Manager for DOS...
Page 236: Menu Options Summary
Logical Units v Drives v Other Components See “Using the Array Conﬁguration Check the status of the logical units, drives and other Editor (ACE)” on page 212. components in the array subsystem IBM 2102 Model F10 and Model D00 Service Guide...
Page 237 Table 44. RAID Manager for DOS Menu Items and Options. (continued) Menu Item Option/Function Reference/Usage v Controller Pair - Service redundant controller pairs. v Swap Passive and Active This option should be performed using v Fail Controller the host storage management software or under the direction of your v Reset Controller next level of support.
Page 238: Task Summary
Set Battery Age the Battery Age” on ﬁrmware. page 226. PC Requirements and Preparation Tasks PC Requirements The PC you connect to the individual array controllers must meet the following requirements: IBM 2102 Model F10 and Model D00 Service Guide...
Page 239: Preparation Tasks
A 386 or higher IBM compatible PC v At least 440 KB of available memory v An available serial port at either COM1 or COM2 Note: Because DRM communicates over the serial interface to the disk array subsystem, you will experience slower response times than if you were communicating over a faster interface such as Fibre Channel or SCSI.
Page 240: Changing Drm Boot Up Defaults (Floppy Drive And Com Port)
Attach the 25-pin connector to the serial port on the back of the PC. Refer to the PC and subsystem hardware manuals for additional information regarding serial connectors and their locations. 2. Continue with “Starting DRM” on page 211. IBM 2102 Model F10 and Model D00 Service Guide...
Page 241: Starting Drm
Starting DRM 1. Make sure the PC is connected to the array subsystem with the null modem cable provided. See “Connecting to the Controller Locally” on page 210. 2. Make sure DRM is set up to use the appropriate monitor type, ﬂoppy drive designation and COM port for this PC.
Page 242: Verifying The Installation
This interface also provides many advanced features for modifying the array conﬁguration and status, formatting and reconstructing drives and altering cache parameters that should only be used under the direction of your next level of support. IBM 2102 Model F10 and Model D00 Service Guide...
Page 243: Starting Ace
Starting ACE The Array Conﬁguration Editor is started by selecting the Conﬁgure Logical Units/Drives... option from the DRM main menu. The ﬁrst time you start ACE, you will be presented with a series of <Array Type Identiﬁer> panels and required to select a conﬁguration layout for your array subsystem.
Page 244: The Logical Unit Window
On an active/passive pair of redundant controllers, you access all logical units attached to the pair by selecting the active controller. v On an active/active pair of redundant controllers, you can access all logical units assigned to the active controller you selected. IBM 2102 Model F10 and Model D00 Service Guide...
Page 245: The Logical Unit Status Display
Note: You must keep in mind the difference between the logical units attached to a controller and the logical units currently assigned to a controller. Being attached means that the drives containing the logical units are physically connected to the controller. Being assigned to a controller means that the controller is currently servicing I/O to the logical units contained on the drives.
Page 246: The Drive Window
Figure 104 on page 217 shows the Drive window. The upper half of the window, the Drive Matrix, displays the current drive statuses and gives a representation of the drives attached to the current array controller. IBM 2102 Model F10 and Model D00 Service Guide...
Page 247: The Drive Window
Figure 104. The Drive window Within each drive position is a number giving the current status of the drive. In Figure 104, one drive has a status of ″3″, (failed), two drives have a status of ″80″ (Global Hot Spare), seventeen drives have a status of ″0″ (optimal) and the remaining drives are nonexistent (″1″).
Page 248: The Drive Matrix
Figure 106. Device Drawer with Single Drive Bus (Bridge Disable OFF) In conﬁgurations with 3 or fewer device drawers, it is likely that all the drawers will be conﬁgured with two 5-drive buses with 2 SCSI connections to the controller. In IBM 2102 Model F10 and Model D00 Service Guide...
Page 249: Device Drawer With 2 Drive Buses (Bridge Disable On)
such a conﬁguration, the drives will be numbered as shown in Figure 107 . Figure 107. Device Drawer with 2 Drive Buses (Bridge Disable ON) Drive Statuses The status of a drive always appears as a number in the Drive Matrix. When you select the individual drive, a brief explanation of the status of the selected drive appears below the Drive Matrix.
Page 250 The drive has experienced write errors when the array controller was unable to write 72 - Controller store is the conﬁguration data from the subsystem to the array. Replace the failed drive as invalid soon as possible. IBM 2102 Model F10 and Model D00 Service Guide...
Page 251: Navigating In Ace
Table 47. ACE Drive Statuses (continued) Status Description The drive has experienced write errors when the array controller was unable to write 73 - Failed drive, controller the conﬁguration data from the subsystem to the array. Replace the failed drive as store soon as possible.
Page 252: Identifying Drives And Logical Units
Similarly, whenever you leave the Array Conﬁguration Editor (ACE), DRM automatically scans the array for any changes that may have been made to logical units while you were in ACE. IBM 2102 Model F10 and Model D00 Service Guide...
Page 253: Using The Array Monitor
To scan the array manually from DRM: 1. Start DRM (see “Starting DRM” on page 211). 2. Select Maintenance Scan For Devices. You can also re-scan the array controller you are currently connected to from within ACE by selecting <U - Update/Refresh> from the Drive window. Using the Array Monitor The Array Monitor in RAID Manager for DOS scans the logical units, drives, and components (power supplies and fans) attached to an array controller and notiﬁes...
Page 254 How often you want the Array Monitor to scan the array controllers. v Whether you want a PC alarm to sound if a status change occurs. v What default log ﬁle you want to use. IBM 2102 Model F10 and Model D00 Service Guide...
Page 255: Diagnostics
Note: When the Array Monitor ﬁrst start, it displays any non-optimal status found. After this initial scan, it scans the array controllers for any change in status (even from non-optimal to optimal). Creating an Array Monitor Batch File Instead of displaying a message on the screen, Array Monitor can execute a batch ﬁle.
Page 256: Changing The Password
The DRM logical unit statuses are shown in Table 49 on page 227. Also, when viewing DRM logical unit statues, you can press <F1> to see a list of possible statuses and their deﬁnitions. IBM 2102 Model F10 and Model D00 Service Guide...
Page 257 Table 49. DRM Logical Unit (LUN) Statuses Status Description The logical unit is no longer functioning. Either: v LUN parameters have changed, but the logical unit has not been reformatted v Drives have failed in one of the following conditions: –...
Page 258 IBM 2102 Model F10 and Model D00 Service Guide...
Page 259: Chapter 17. Installing The Remote Support Feature
(such as HyperTerminal, ProComm or Kermit). Figure 108. Attachment of the Modem and WTI Switch to a IBM 2102 F10 Fibre Channel Storage Server Remote Support Feature Initial Installation Refer to Figure 108 when performing this procedure.
Page 260 2. The modem requires an analog phone line, provided by the customer. 3. The switch and modem must reside within 150 feet of the IBM 2102 Model F10 Fibre Channel Storage Server. Set Up the WTI APS-16 Data Switch 1. Check and set the line voltage on the back of the WTI switch to the proper line voltage for your account (115V or 230V).
Page 261: Help Menu
b. Set the port settings for 8 data bits, no parity bits and 1 stop bit (8/N/1). c. Set the baud rate for 9600 bits per second. d. Set the Flow control to hardware (or RTS/CTS). e. Set the emulation mode to Auto Detect. If there is not an auto detect selection, then select VT100.
Page 262: Port Conﬁguration Menu
3) Set the MODE to Modem. When the Modem Mode is selected, the unit will display additional prompts that are used to select the Reset String, Initialization String and Hang-Up String. IBM 2102 Model F10 and Model D00 Service Guide...
Page 263 4) Clear the Reset String parameter (overwrite with the [SPACE] key). The Port conﬁguration Menu should show this as (undeﬁned). 5) Clear the Initialization String. 6) Set the Hang-Up string to ATH0. 7) Exit the Conﬁguration Menu for this port by typing |X. d.
Page 264 ″DeskPorte FAST″ on it) from the front of the modem. There will be a series of switches behind this panel. Set the switches as shown (U = Up, D = Down) from left to right. IBM 2102 Model F10 and Model D00 Service Guide...
Page 265 D D D D D D D U D D D D Note: Only one switch is up. The remainder are down. d. Turn the modem power back on. e. Initiate the connection from the terminal emulator. 7. Issue the following string to initialize the modem and set the proﬁle: AT&F*E1%U1$B9600&D0*W0&Y0 Press [Enter].
Page 266 #1 or #2) to the RS232 ports on the back of the controllers. 4. Connect the Service Terminal to the WTI switch: a. Use the RAS cable (p/n 08L8045) that shipped with the IBM 2102 Model F10 Fibre Channel Storage Server.
Page 267: Help Menu
COMMAND MENU: /¬E Wake-up port Sleep - only accepts Wake-up command Help - displays command list Status - displays status screen +--------------------+ /W [n] Who - displays port parameters Port # or name | /C <n> [n] Connect - local [remote] Port # /D <n | ...
Page 268 Type ″[Enter] +++ [Enter]″ to disconnect from the port. d. Repeat steps 10.a on page 237 through 10.c to verify each additional WTI switch port that is connected to a controller. IBM 2102 Model F10 and Model D00 Service Guide...
Page 269: Chapter 18. Drive Microcode Download
The installer must have administrator privileges to install the software. The installation requires a restart of the operating system. Therefore, make sure that other users are not using the system when installing this software. © Copyright IBM Corp. 1999...
Page 270: Starting Drivedload
IBM Fibre Channel Storage Manager Service Tools DriveDLoad. The DriveDload main panel should appear (See Figure 113 on page 241). Using DriveDload When you ﬁrst start DriveDload, the main menu appears: IBM 2102 Model F10 and Model D00 Service Guide...
Page 271 Important: v You must verify that the setup parameters specify the correct Drive Type, Vendor, and Product ID for the IBM 2102–F10 controller. v You must be very careful when selecting the drives to update and the drive download ﬁle to send. If you send the wrong code ﬁle to a drive, you may render the drive unusable.
Page 272 SCSI drive, it will typically show up as the ﬁrst selection in the device selection screen. When selecting a device, always ensure that the device vendor is IBM and the Product is 2102–F10. If the device that is selected is a RAID controller device, then you will see a drive list that shows all of the drives that are attached to the controller.
Page 273: Drive Mode Page Download
Drive Mode Page Download DriveDload can also be used to download mode pages to IBM drives. This procedure is very similar to the procedure for downloading drive microcode above. For more detailed explanation of the following steps, refer to the corresponding steps in the drive microcode download procedure above.
Page 274: Downloading Drive Microcode From Hp-Ux Or Sun Solaris Using Drvdload
2. Extract the ﬁles from the CD-ROM using the tar command as follows: tar -xvf /cdrom/drvdload/drvdload.tar where /cdrom is the mount point of the CD-ROM ﬁle system. 3. Dismount the CD-ROM if necessary and remove the CD-ROM. IBM 2102 Model F10 and Model D00 Service Guide...
Page 275: Starting Drvdload
Starting drvDLoad Important: 1. All activity must be stopped to drives that will be updated. 2. All Fibre Channel Storage Manager applications and StorWatch RAID Fibre Channel Specialist must be closed prior to starting the drvDLoad utility. 3. You must copy the new drive ﬁrmware ﬁle(s) to the host system before starting the drvDLoad utility.
Page 276: Downloading Drive Microcode From An Aix Host
Service Aid to download microcode to the disk drives in the 2102 Fibre Channel RAID subsystem. Refer to the Fibre Channel Storage Manager, Installation and User’s Guide for the AIX Operating System , SC26-7290 for details. IBM 2102 Model F10 and Model D00 Service Guide...
Page 277: Chapter 19. Controller Debug Shell
At times, normal error indications and debug procedures will not be sufficient for isolating a problem on the IBM 2102 Model F10 Fibre Channel Storage Server. In these cases, the next level of support may ask you to gather data or perform procedures from within the controller debug shell.
Page 278: Controller Debug Shell Commands
LUN information from memory cfgUnitList displays LUN state for all LUNs vdAll cmd performs cmd for all existing LUNs (e.g. vdAll vdShow) vdShow displays detailed information about LUN conﬁguration IBM 2102 Model F10 and Model D00 Service Guide...
Page 279 Table 51. Controller Debug Shell Commands (continued) Command Usage ghsList displays information about Global Hot Spare drives Shell commands to display RDAC status arrayPrintSummary prints summary of array controller states, LUN ownership arrayPrint prints detailed controller state information rdsPrint prints contents of RDAC store iconMgrSendPingPong sends test message to alternate controller and waits for reply Shell Commands to modify LUN/Drive Status...
Page 280 (like power on reset) reboot (or CTRL-X or CTRL-x) reboots controller (like host bus reset) sysWipe ***This will wipe out all data. It clears all conﬁguration and sets default values. IBM 2102 Model F10 and Model D00 Service Guide...
Page 282 IBM 2102 Model F10 and Model D00 Service Guide...
Page 283: Appendix A. Aix Code Information
Appendix A. AIX Code Information 2102-F10 Error Log Sense Information Below is a sample error log entry with some of the more important ﬁelds explained. --------------------------------------------------------------------------- LABEL: IDENTIFIER: BC669AA7 Date/Time: Thu Oct 1 14:20:23 Sequence Number: 83708 Machine Id: 005461C34C00...
Page 284 NOTE: Errors from EC through the reserved area before VP are scsi sense data from the 2102, and are valid if status validity shows SCSI status. They may be valid in other cases, since the buffer is zeroed out before sense data is copied to it. IBM 2102 Model F10 and Model D00 Service Guide...
Page 285 ITEM DESCRIPTION Error Code: Immediate error (on current command as shown). Deferred error (an error indication for a command already completed with good completion, most likely a write into fast write cache). Sense Key: No sense. Recovered Error. Not Ready. Medium Error.
Page 286 Sequence Number. Controller’s internal sequence number for this I/O. Date and Time Stamp. This is an ASCII date and time in the format MMDDYY/HHMMSS. Pointer to array information (for all but switches) and pointer to router information (for switches). IBM 2102 Model F10 and Model D00 Service Guide...
Page 287 ITEM DESCRIPTION Detail data validity (currently 0xFF). Version level of the software. This will be YYMMDD for internal releases and the form 0432PP for an AIX 4.3.2 patch of level PP. For failure to start (driver status valid and set to AA); counters for fail reasons: Too many commands outstanding, array being recovered, waiting on timer to clear, or waiting for queue to clear.
Page 288: Field Replaceable Unit (Fru) Codes
FRU Group Qualiﬁers for the Subsystem Group (0x06) are covered in the 2102 hardware speciﬁcation. FRU Group Qualiﬁers for the Drive Group are simply reiterations of the channel/id value. FRU Group Qualiﬁers for the Sub-Enclosure Group are as follows: IBM 2102 Model F10 and Model D00 Service Guide...
Page 289 Most signiﬁcant byte (bytes 26, 29, and 32): Meaning Tray Identiﬁer Enable (TIE) Reserved Sub-Enclosure Identiﬁer If TIE=1, this provides the tray identiﬁer for the sub-enclosure being described. If TIE=0, the sub-enclosure identiﬁer is deﬁned as shown in the following table. Channel Enclosure #1 Enclosure #2...
Page 290: Disk Array Errors
This error should not be possible on the 2102 array, and exists for historic reasons only. FCP_ARRAY_ERR11 may be reused for a different IMPROPER DRIVE TYPE FOR DUAL error in the future. ACTIVE MODE IBM 2102 Model F10 and Model D00 Service Guide...
Page 291: 2102 Array Additional Sense Codes And Qualiﬁers (Asc/Asq)
Error and Meaning Description FCP_ARRAY_ERR12 An automatic error notiﬁcation has failed. POLLED AEN FAILURE FCP_ARRAY_ERR13 ARRAY self-explanatory. INTER-CONTROLLER COMMUNICATION FAILURE FCP_ARRAY_ERR14 self-explanatory. ARRAY DRIVE FAILURE FCP_ARRAY_ERR15 If a controller card was recently replaced, the cache batteries may not have been fully charged. It can take two days for the cache CACHE BATTERY batteries to be fully recharged.
Page 292 Format Command Failed 3101 A Format Unit command issued to a drive returned an unrecoverable error. IBM 2102 Model F10 and Model D00 Service Guide...
Page 293 ASC/ASQ Sense Key Description 3200 Out of Alternates Drive Microcode Has Been Changed 3F01 Returned when new drive microcode has been downloaded. Drive Failed Because Of A Failed Write Operation This is the result of an error that prohibits use of the drive. The value of N in the ASCQ indicates the reason why the drive cannot be used.
Page 294 The controller detected a parity error on the host SCSI bus or one of the drive SCSI buses. Initiator Detected Error Message Received 4800 The controller received an Initiator Detected Error Message from the host during the operation. IBM 2102 Model F10 and Model D00 Service Guide...
Page 295 ASC/ASQ Sense Key Description Invalid Message Error 4900 The controller received a message from the host that is not supported or was out of context when received. Drive Reported Reservation Conﬂict 4980 A drive returned a status of reservation conﬂict. Data Phase Error 4B00 The controller encountered an error while transferring data to/from the initiator or...
Page 296 The controller could not perform write back caching due to the cache sizes of the two controllers in the RDAC pair not matching A400 Global Hot Spare Size Insufficient For All Drives In Subsystem A600 Recovered processor memory failure A700 Recovered data buffer memory error IBM 2102 Model F10 and Model D00 Service Guide...
Page 297 ASC/ASQ Sense Key Description The lnter-controller Communications Have Failed C000 The controller has detected the failure of the communications between redundant controllers. Drive IO Time-out D006 The controller destination IO timer expired while waiting for a drive command to complete. Drive Reported Busy Status D10A A drive returned a busy status in response to a command.
Page 298 IBM 2102 Model F10 and Model D00 Service Guide...
Page 299: Appendix B. Safety Inspection Procedure
7. Check for alterations or attachments. If there are any, check for obvious safety hazards such as broken wires, sharp edges, or broken insulation. 8. Check the internal cables for damage. 9. Check for dirt, water, and any other contamination within the rack. © Copyright IBM Corp. 1999...
Page 300 Ensure the power cables of all the rack devices are plugged into the outlets on the PDUs. b. Ensure the power cable for each PDU is plugged into the customer’s power cable or outlet. IBM 2102 Model F10 and Model D00 Service Guide...
Page 301 c. Switch the power on to the devices in the rack in the following order: 1) Device drawers 2) Controller module d. Close the rear door of the rack. Appendix B. Safety Inspection Procedure...
Page 302 IBM 2102 Model F10 and Model D00 Service Guide...
Page 304 IBM 2102 Model F10 and Model D00 Service Guide...
Page 305 Appendix C. Safety Inspection Procedure in German...
Page 306 IBM 2102 Model F10 and Model D00 Service Guide...
Page 308 IBM 2102 Model F10 and Model D00 Service Guide...
Page 309 Appendix D. Safety Inspection Procedure in Traditional Chinese...
Page 310 IBM 2102 Model F10 and Model D00 Service Guide...
Page 311: Appendix E. Fibre Channel Raid Storage Server And Expandable Storage Unit Parts Catalog
Appendix E. Fibre Channel RAID Storage Server and Expandable Storage Unit Parts Catalog © Copyright IBM Corp. 1999...
Page 312: 2102 Model F10 Controller Module Frus
2102 Model F10 Controller Module FRUs Figure 114. 2102 Model F10 Controller Module FRUs IBM 2102 Model F10 and Model D00 Service Guide...
Page 313: Model F10 Controller Module Frus - Cont
Figure 115. 2102 Model F10 Controller Module FRUs – cont. Appendix E. Fibre Channel RAID Storage Server and Expandable Storage Unit Parts Catalog...
Page 314 Figure 116. 2102 Model F10 Controller Module FRUs – cont. Table 52. 2102 Model F10 Controller Module FRUs Part Number ID Number Description (P/N) 1 REF 10L6981 Controller Module Chassis Assembly 09L1301 Controller Module Backpanel/Card Cage 01K6740 Controller Module Fan...
Page 315 Table 52. 2102 Model F10 Controller Module FRUs (continued) Part Number ID Number Description (P/N) 09L1111 Controller Module 32/256MB Controller Canister 10L7043 Controller Module Bezel Assembly 01K6743 Controller Module Power Supply 01K6741 Controller Module Power Supply Fan 03K9281 Controller Module 5V Fan Cable...
Page 316: 2102 Model D00 Drive Module Frus
2102 Model D00 Drive Module FRUs Figure 117. 2102 Model D00 Drive Module FRUs IBM 2102 Model F10 and Model D00 Service Guide...
Page 317 Table 53. 2102 Model D00 Drive Module FRUs Part Number ID Number Description (P/N) 01K6706 Drive Drawer Fan 01K6708 Drive Drawer ESM Module 01K6709 Drive Drawer Power Supply Module 09L1119 Drive Drawer Chassis/Midplane 09L1118 Drive Drawer Front Bezel not pictured 01K6671 Drive Drawer Miscellaneous Parts¹...
Page 318 IBM 2102 Model F10 and Model D00 Service Guide...
Page 319: Glossary
– a feature that allows you to replace a component while the controller module is powered-up and running. LEDs (Light Emitting Diodes) – green or amber lights that glow or blink to indicate either a normal operating status or hardware error. © Copyright IBM Corp. 1999...
Page 320 Channel Storage Manager for AIX). support rails – hardware used to mount a controller module chassis into a rackmount cabinet. UPS – Uninterruptible Power Supply. VHDCI – Very High Density Cable Interface. IBM 2102 Model F10 and Model D00 Service Guide...
Page 321: Index
123 vents 101, 144, 151, 187 precaution on servicing 114 front cover 69 problems with 113 alarm signal 148 removing 116 algorithm for Fibre addresses 42 replacing 116 altitude speciﬁcations 38 service label 113 © Copyright IBM Corp. 1999...
Page 322 LEDs 158 VHDCI 42 for controller failure 94 cables power supply LEDs 158 connecting to presence of FRUs 148 SCSI 53 shutdown sequence 74 disconnecting SCSI 174 site preparations 36 IBM 2102 Model F10 and Model D00 Service Guide...
Page 323 checking (continued) controller backpanel 97 (continued) software status 115, 169 speciﬁcations 96 startup sequence 73 troubleshooting 97 temperature in chassis 148 controller fan FRU circuit board accessing 46, 72 controller backpanel 96 described 69, 103 power interface 111 hot swapping 105 circuit board interface 142 LEDs 103 See also controller FRU, ESM FRU, and...
Page 324 74 described power turning on power 72 harnesses 126 voltage speciﬁcations 39 illustration of 127 weight 36 replacing failed 128 wiring for 39 speciﬁcations 127 controller slot number 89 troubleshooting 127 IBM 2102 Model F10 and Model D00 Service Guide...
Page 325 DC voltage drive (continued) power supply 118 hot spares 143 requirements 39 ID numbers 145, 147, 148, 172, 191, 192 DC voltage in power supply 149 ID signals 196 default settings 42, 58, 91 identify command 143, 148, 164 drive SCSI IDs 144 interface 91 power switch 191 logical 192...
Page 326 174 receptacle 39 FRUs 175 single-phase wiring 40 SCSI site wiring 39 ID numbers not used 191 speciﬁcations and requirements 39 interface 197 surges 155 SCSI components 146 voltage interruptions 40 IBM 2102 Model F10 and Model D00 Service Guide...
Page 327 electrical (continued) ESM FRU (continued) voltage requirements 197 problems with 147 electrolyte gel 118 pull rings 173 electrostatic discharge (ESD) replacing a failed 170 drive FRU 159 SAF-TE chip 147 ESM FRU 167 SCSI connections 147 mid-plane 167 servicing notes 167 emergency shutdown procedure 155 slot 147 software error 171...
Page 328 SAF-TE chip 147 setting host IDs 55 drive FRU 143, 161, 197 switch 87 drive-related 165, 170, 173 Fibre Channel Storage Manager 192 due to overheating 147, 170, 197 IBM 2102 Model F10 and Model D00 Service Guide...
Page 329 hardware failure (continued) hot swap ESM FRU 147, 197 controller 91 fan FRU 151, 188, 197 controller fan FRU 105 mid-plane 173 power supply fan FRU 109 power supply FRU 149, 183, 197 how to power system 155, 180 avoid data loss 172 harness 111 check hazardous conditions 155...
Page 330 FRU 149, 186, 197 connector 148, 197 switching on power supply 185 differential 192 uses for 153 troubleshooting hints 88 light emitting diodes 72 user 192 light emitting diodes (LEDs) 143 IBM 2102 Model F10 and Model D00 Service Guide...
Page 331 lights 72, 143, 197 number locking bar drive access hole 144 channels 144 location of 143 SCSI IDs 144 logical units (LUNs) 193 drive module IDs 192 LP SCSI drives 143, 159 host SCSI ID 144 LVD SCSI drive 91 SCSI IDs 191 LVD-SCSI drive See also drive module, installing 144...
Page 332 149, 197 power cord 149 location of 70, 142, 149 connecting 56, 57 mid-plane connections 148, 150 connecting/disconnecting 53, 174 opening handles 186 connector on drive module 149 overheating 119 IBM 2102 Model F10 and Model D00 Service Guide...
Page 333 power supply FRU (continued) problems (continued) parts 46 fan-related 161 per drive module 179 host adapter board 89, 169 power cords for 111 I/O activity 168 Power switch 149, 197 intermittent faults 173 pull rings 186 mid-plane 168, 173 recovery notes 119 overheating 170, 188 redundancy of 118 power-related 180, 183...
Page 334 53 RMT_START (remote start) signal 195, 196 connectors 192 routing disconnecting 171, 174 power cords 41 maximum length 194 RS-232 91 pin assignments 194 connecting cable 49 problems with 168 IBM 2102 Model F10 and Model D00 Service Guide...
Page 335 SCSI cables (continued) shortwave laser 42 SCA-2 pin assignments 53 shutdown sequence for modules 74 types and lengths 42 shutting down the drive module 155 SCSI ID signal drive 145, 148, 191 +12 V 195 drive numbers 144, 192 +15 V 195, 196 host 145 ACK (acknowledge) 194, 195 module numbers 192...
Page 336 51, 147, 197 spin-up switch 51, 147, 191, 197 command from host 196 using with multiple hosts 147 control for drives 191 troubleshooting delayed start 196 battery harness problems 125 IBM 2102 Model F10 and Model D00 Service Guide...
Page 337 troubleshooting (continued) unlocking (continued) battery problems 125 power supply FRU 173 chart 198 UPS_inpl bit 148 communication problems 169 user controller backpanel problems 97 controls 143, 153 controller fan problems 105 replaceable controller problems 92, 168 battery FRU 180 cooling problems 101 cables 167 cooling system 187 drive FRUs 160...
Page 338 IBM 2102 Model F10 and Model D00 Service Guide...
Page 339: Readers' Comments - We'd Like To Hear From You
Thank you for your responses. May we contact you? h Yes h No When you send comments to IBM, you grant IBM a nonexclusive right to use or distribute your comments in any way it believes appropriate without incurring any obligation to you. Name...
Page 340 Readers’ Comments — We’d Like to Hear from You Cut or Fold Along Line SY27-7604-02 Fold and Tape Please do not staple Fold and Tape _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ NO POSTAGE NECESSARY IF MAILED IN THE...
Page 342 Printed in the United States of America on recycled paper containing 10% recovered post-consumer ﬁber. SY27-7604-02...
Page 343 Spine information: Fibre Channel RAID Storage Server Expandable Storage Unit, IBM 2102 IBM 2102 Model F10 and Model D00 Service Guide Model F10 and Model D00...
