N10 T1 D1 M7
N20 S1=2000 M1=3
N30 S2=1100 M2=4
N40 CYCLE414(1, 55, 200, 10, 23, 5, 0.2,
50, 1, 700)
N50 M30
Sequence of operations
The machining start position is first approached in X, then in Z, corresponding to the initial
position of the wheel in X, if the current X value is less than the X allowance.
The starting positions in X and Z are determined as follows:
Internal radius: X = X starting position + roughing allowance + air allowance
Z = Z shoulder dimension + workpiece radius - wheel radius + roughing allowance
External radius: X = X starting position - wheel radius
Z = Z shoulder dimension + roughing allowance + air allowance
Sparking can be performed optionally with direct-contact vibration pick-up, for inner circle in
the X axis, for an outer circle in the Z axis.
The roughing operation is followed by retraction.
Grinding
Programming and Operating manual, 06/2006, 6FC5398-4CP10-0BA0

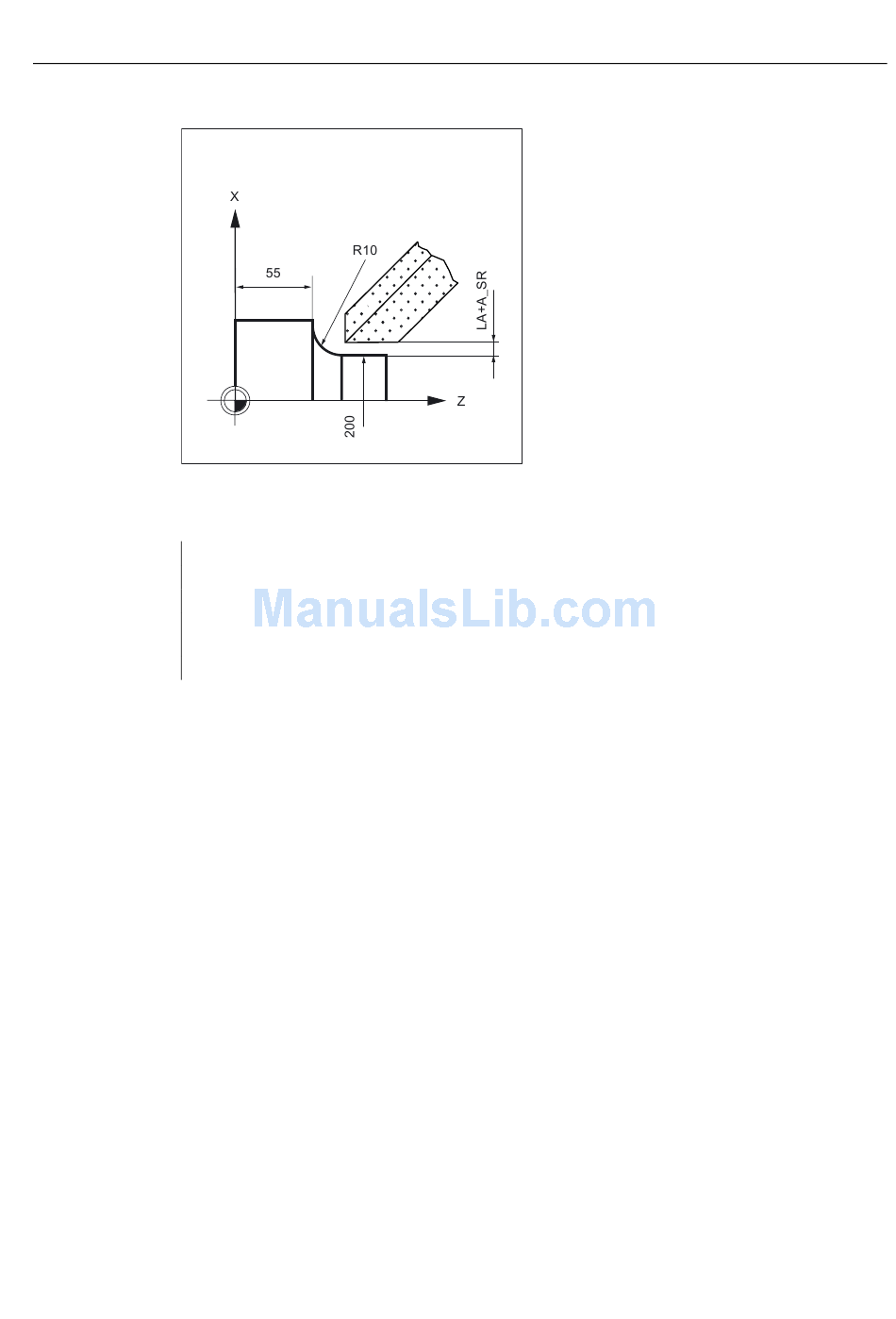

4.9 Radius grinding – CYCLE414
; Determine technology values, coolant ON
; Turn on wheel speed
; Turn on workpiece speed
; Cycle call
;End of program
Cycles
4-29
