Figure 3-109 Configuring A Vlan Static List - Samsung iES4028F Management Manual

3
Configuring the Switch
Web – Click VLAN, 802.1Q VLAN, Static List. To create a new VLAN, enter the
VLAN ID and VLAN name, mark the Enable checkbox to activate the VLAN, and
then click Add.
CLI – This example creates a new VLAN.
Console(config)#vlan database
Console(config-vlan)#vlan 2 name RD media ethernet state active
Console(config-vlan)#end
Console#show vlan
Default VLAN ID : 1
VLAN ID:
Type:
Name:
Status:
Ports/Port Channels:
VLAN ID:
Type:
Name:
Status:
Ports/Port Channels:
VLAN ID:
Type:
Name:
Status:
Ports/Port Channels:
Console#
3-194

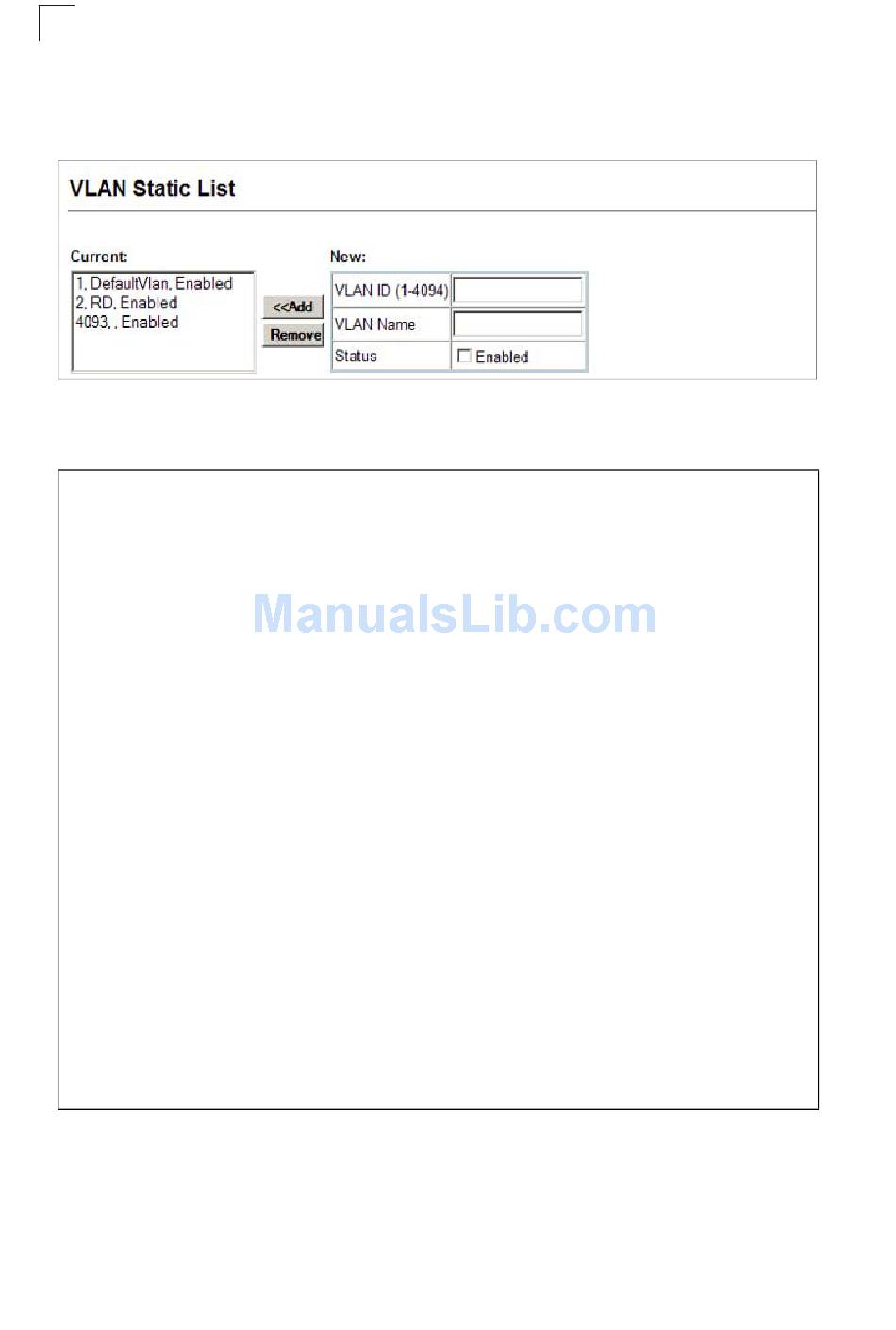

Figure 3-109 Configuring a VLAN Static List

1
Static
DefaultVlan
Active
Eth1/ 1(S) Eth1/ 2(S) Eth1/ 3(S) Eth1/ 4(S) Eth1/ 5(S)
Eth1/ 6(S) Eth1/ 7(S) Eth1/ 8(S) Eth1/ 9(S) Eth1/10(S)
Eth1/11(S) Eth1/12(S) Eth1/13(S) Eth1/14(S) Eth1/15(S)
Eth1/16(S) Eth1/17(S) Eth1/18(S) Eth1/19(S) Eth1/20(S)
Eth1/21(S) Eth1/22(S) Eth1/23(S) Eth1/24(S)
2
Static
RD
Active
4093
Static
Active
Eth1/ 1(S) Eth1/ 2(S) Eth1/ 3(S) Eth1/ 4(S) Eth1/ 5(S)
Eth1/ 6(S) Eth1/ 7(S) Eth1/ 8(S) Eth1/ 9(S) Eth1/10(S)
Eth1/11(S) Eth1/12(S) Eth1/13(S) Eth1/14(S) Eth1/15(S)
Eth1/16(S) Eth1/17(S) Eth1/18(S) Eth1/19(S) Eth1/20(S)
Eth1/21(S) Eth1/22(S) Eth1/23(S) Eth1/24(S)
4-254
4-255
4-262
