MERLIN LEGEND Communications System Release 7.0
System Planning 555-670-112
3 Lines/Trunks

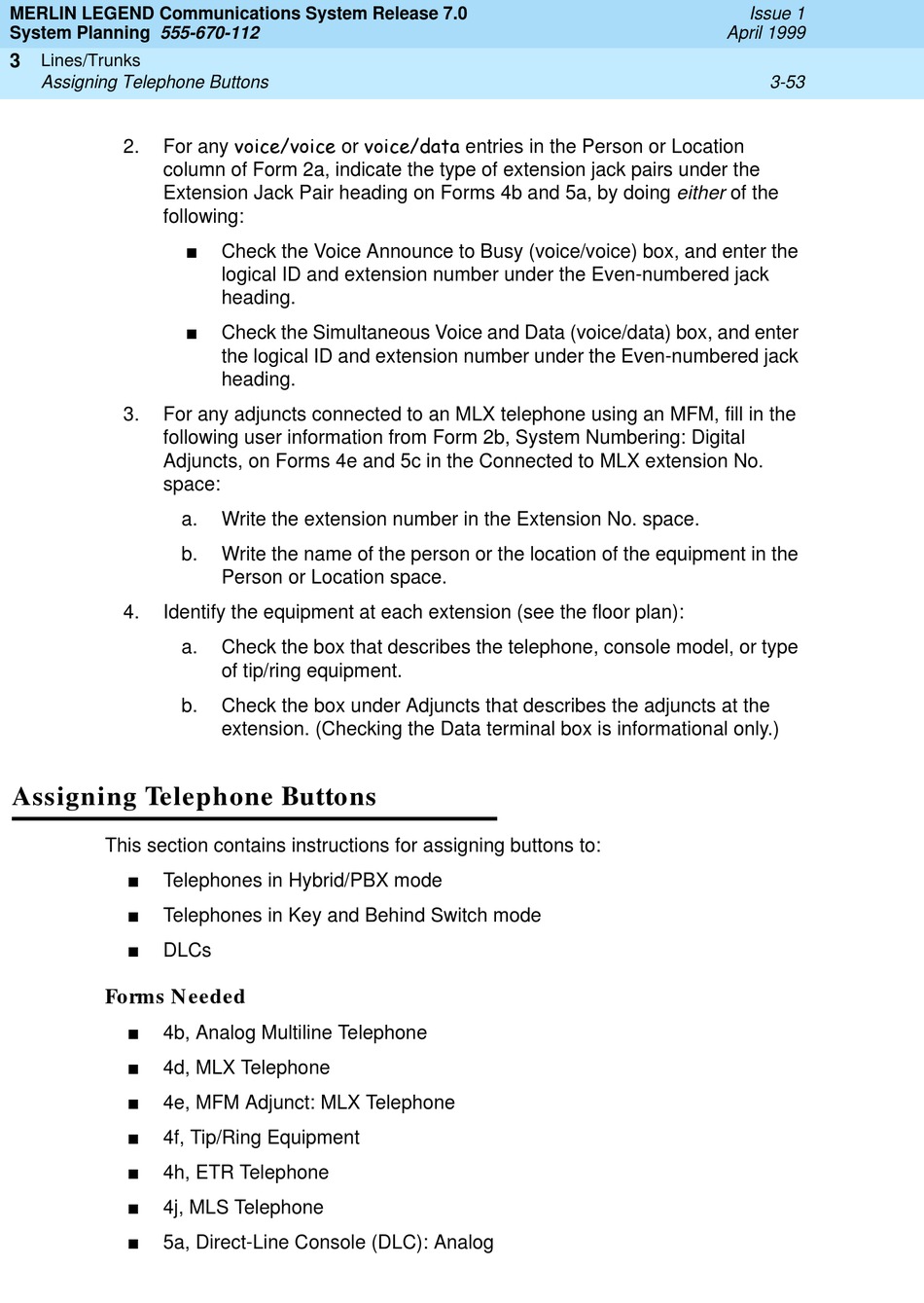

Assigning Telephone Buttons

2. For any
column of Form 2a, indicate the type of extension jack pairs under the
Extension Jack Pair heading on Forms 4b and 5a, by doing either of the
following:
3. For any adjuncts connected to an MLX telephone using an MFM, fill in the
following user information from Form 2b, System Numbering: Digital
Adjuncts, on Forms 4e and 5c in the Connected to MLX extension No.
space:
a.
b.
4. Identify the equipment at each extension (see the floor plan):
a.
b.
Assigning Telephone Buttons
This section contains instructions for assigning buttons to:
Telephones in Hybrid/PBX mode
Telephones in Key and Behind Switch mode
DLCs
Forms Needed
4b, Analog Multiline Telephone
4d, MLX Telephone
4e, MFM Adjunct: MLX Telephone
4f, Tip/Ring Equipment
4h, ETR Telephone
4j, MLS Telephone
5a, Direct-Line Console (DLC): Analog
or
Check the Voice Announce to Busy (voice/voice) box, and enter the
logical ID and extension number under the Even-numbered jack
heading.
Check the Simultaneous Voice and Data (voice/data) box, and enter
the logical ID and extension number under the Even-numbered jack
heading.
Write the extension number in the Extension No. space.
Write the name of the person or the location of the equipment in the
Person or Location space.
Check the box that describes the telephone, console model, or type
of tip/ring equipment.
Check the box under Adjuncts that describes the adjuncts at the
extension. (Checking the Data terminal box is informational only.)
entries in the Person or Location
3
Issue 1
April 1999
3-53
