MERLIN LEGEND Communications System Release 7.0
System Planning 555-670-112
2 Control Unit Configuration
Numbering the System

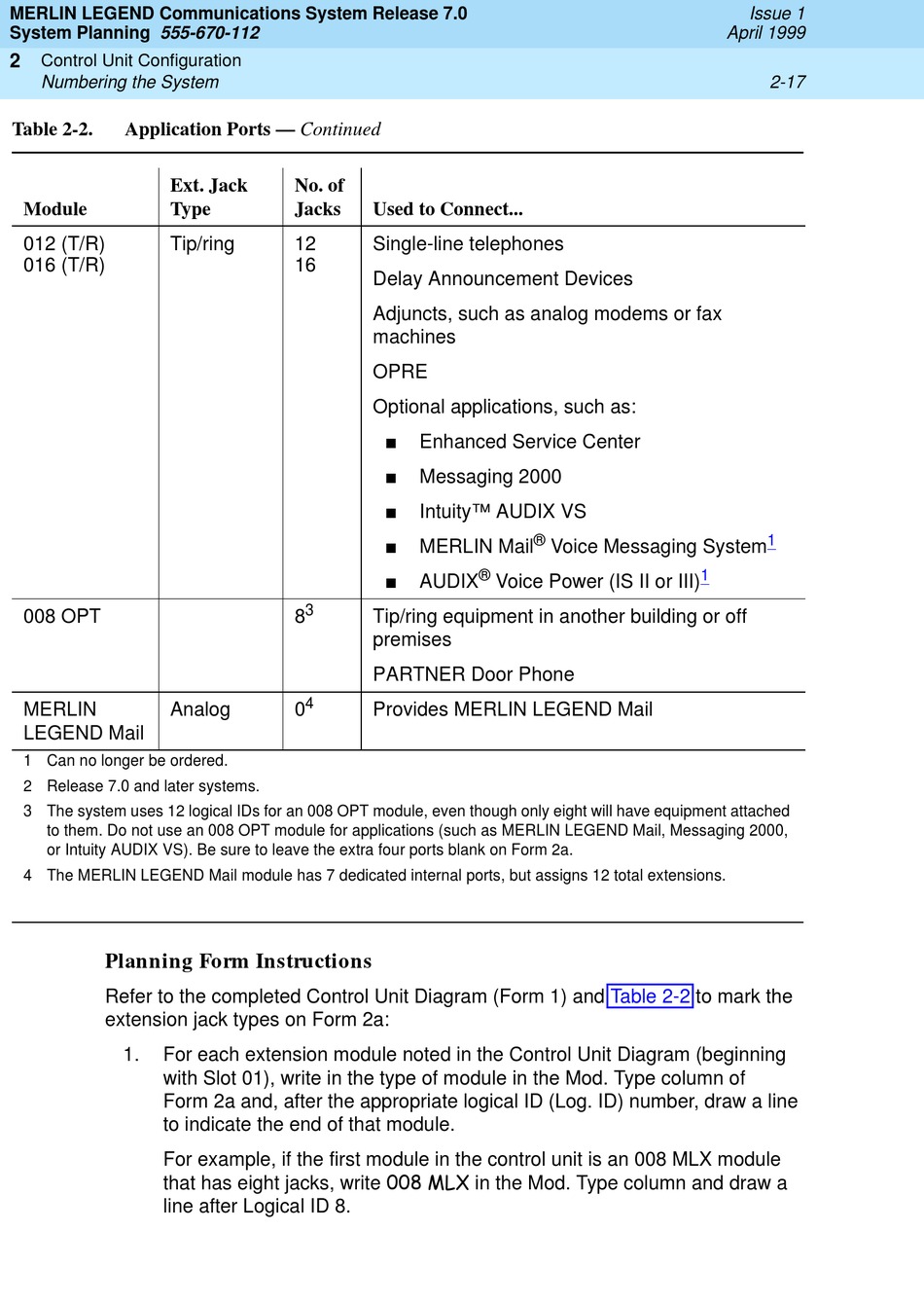

Table 2-2. Application Ports — Continued
Ext. Jack
Module Type
012 (T/R) Tip/ring
016 (T/R)
008 OPT
MERLIN Analog
LEGEND Mail
1 Can no longer be ordered.
2 Release 7.0 and later systems.
3 The system uses 12 logical IDs for an 008 OPT module, even though only eight will have equipment attached
to them. Do not use an 008 OPT module for applications (such as MERLIN LEGEND Mail, Messaging 2000,
or Intuity AUDIX VS). Be sure to leave the extra four ports blank on Form 2a.
4 The MERLIN LEGEND Mail module has 7 dedicated internal ports, but assigns 12 total extensions.
Planning Form Instructions
Refer to the completed Control Unit Diagram (Form 1) and
extension jack types on Form 2a:
1. For each extension module noted in the Control Unit Diagram (beginning
with Slot 01), write in the type of module in the Mod. Type column of
Form 2a and, after the appropriate logical ID (Log. ID) number, draw a line
to indicate the end of that module.
For example, if the first module in the control unit is an 008 MLX module
that has eight jacks, write
line after Logical ID 8.
No. of
Jacks Used to Connect...
12 Single-line telephones
16
Delay Announcement Devices
Adjuncts, such as analog modems or fax
machines
OPRE
Optional applications, such as:
Enhanced Service Center
Messaging 2000
Intuity™ AUDIX VS
MERLIN Mail
AUDIX
3
8 Tip/ring equipment in another building or off
premises
PARTNER Door Phone
4
0 Provides MERLIN LEGEND Mail
®
Voice Messaging System
®
Voice Power (IS II or III)
Table 2-2
in the Mod. Type column and draw a
Issue 1
April 1999
2-17
1
1
2
to mark the
