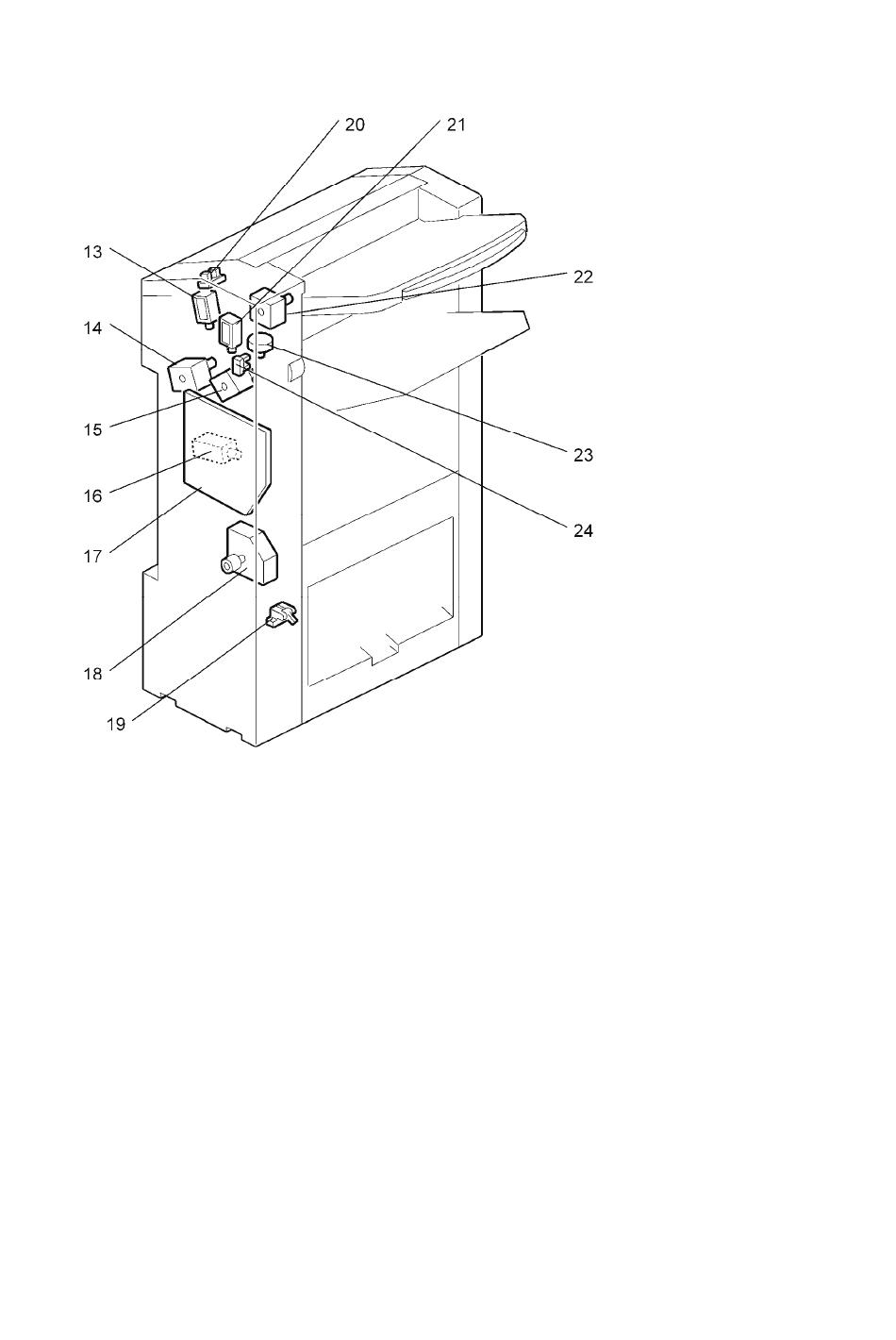

Component Layout
13. Proof Tray Gate Solenoid
14. Lower Transport Motor
15. Entrance Motor
16. Positioning Roller Solenoid
17. Main Board
18. Shift Tray Motor
19. Lower Limit Sensor
20. Upper Cover Sensor
21. Staple Tray Gate Solenoid
22. Upper Transport Motor
23. Shift Motor
24. Shift Motor HP Sensor
B793
34
SM
